Remove Side Cover

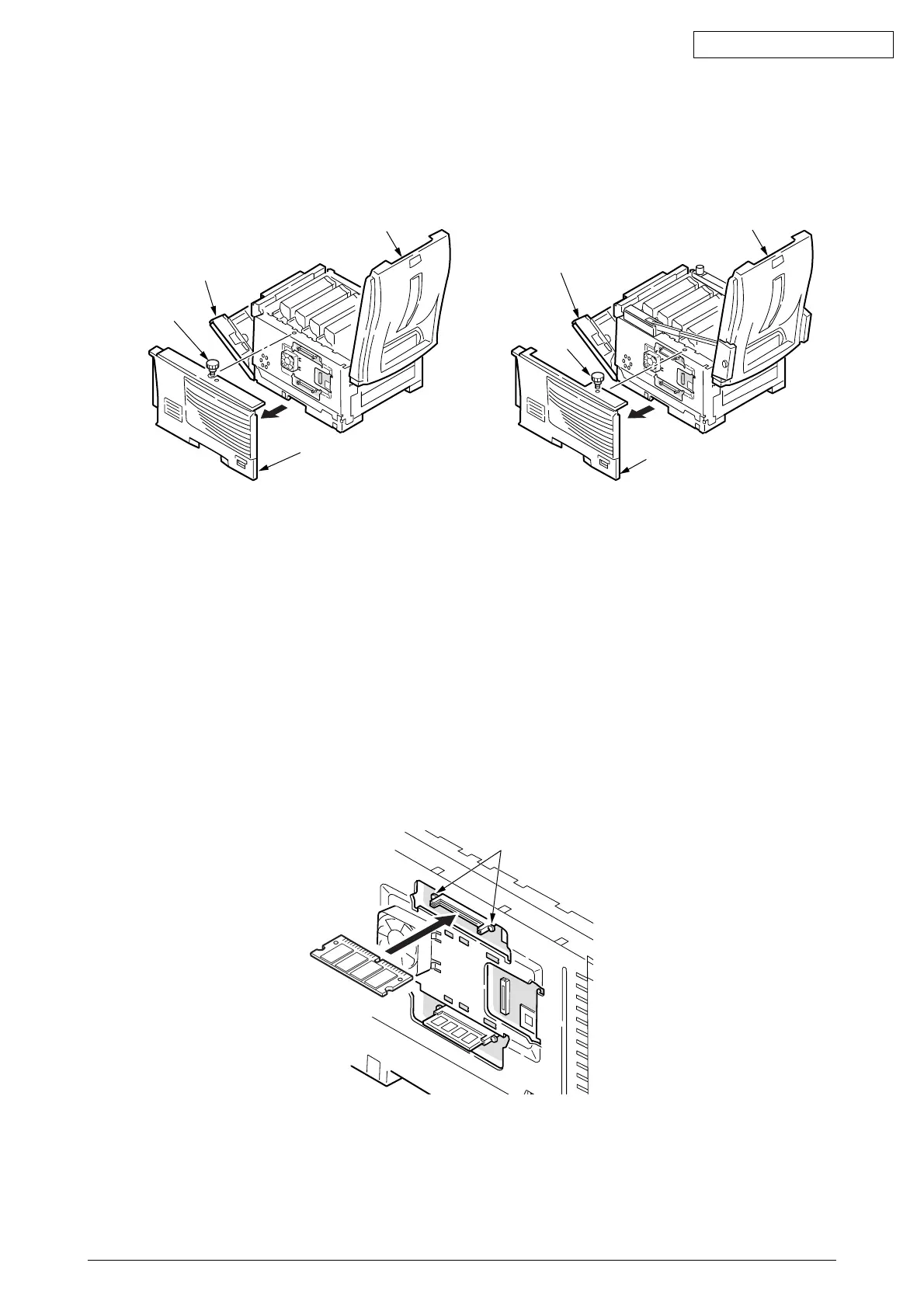

(1) Loosen the screw (at one place).
(2) Remove the side cover. It can become detached by moving it upward and outward.
2
1
Side Cover
Top Cover
Front Cover
Screw
2
1
Top Cover
Side Cover
Front Cover
Screw
[5510]
Install Memory
C5400
(1) Remove static electricity by bringing a bag into contact with a metal part before the memory
is taken out of the bag.
(2) Insert the memory into an empty slot.
(3) Make sure that the memory is completely held by the right and left lock lever.
Note!
• Do not touch electronic components and connector terminals.
• Be careful of the memory direction. There is a cutting part to adapt to the connector of
the slot.
Lock Levers
To Next Page
