4.2.7 Print Engine Controller PCB
C5400
(1) Open the top cover.
(2) Remove the right side cover (see section 4.2.2).
(3) Remove the connector 1, and disengage the two hooks A of to detach the FAN (CU) 2.
(4) Remove the three screws (golden) 3 disengage the claws B and remove the plate-shield
Assy (PCL) 4.(Tool No.1)
(5) Remove the three screws (golden) 5 and all the connectors to detach the print engine
controller PCB 6.(Tool No.1)

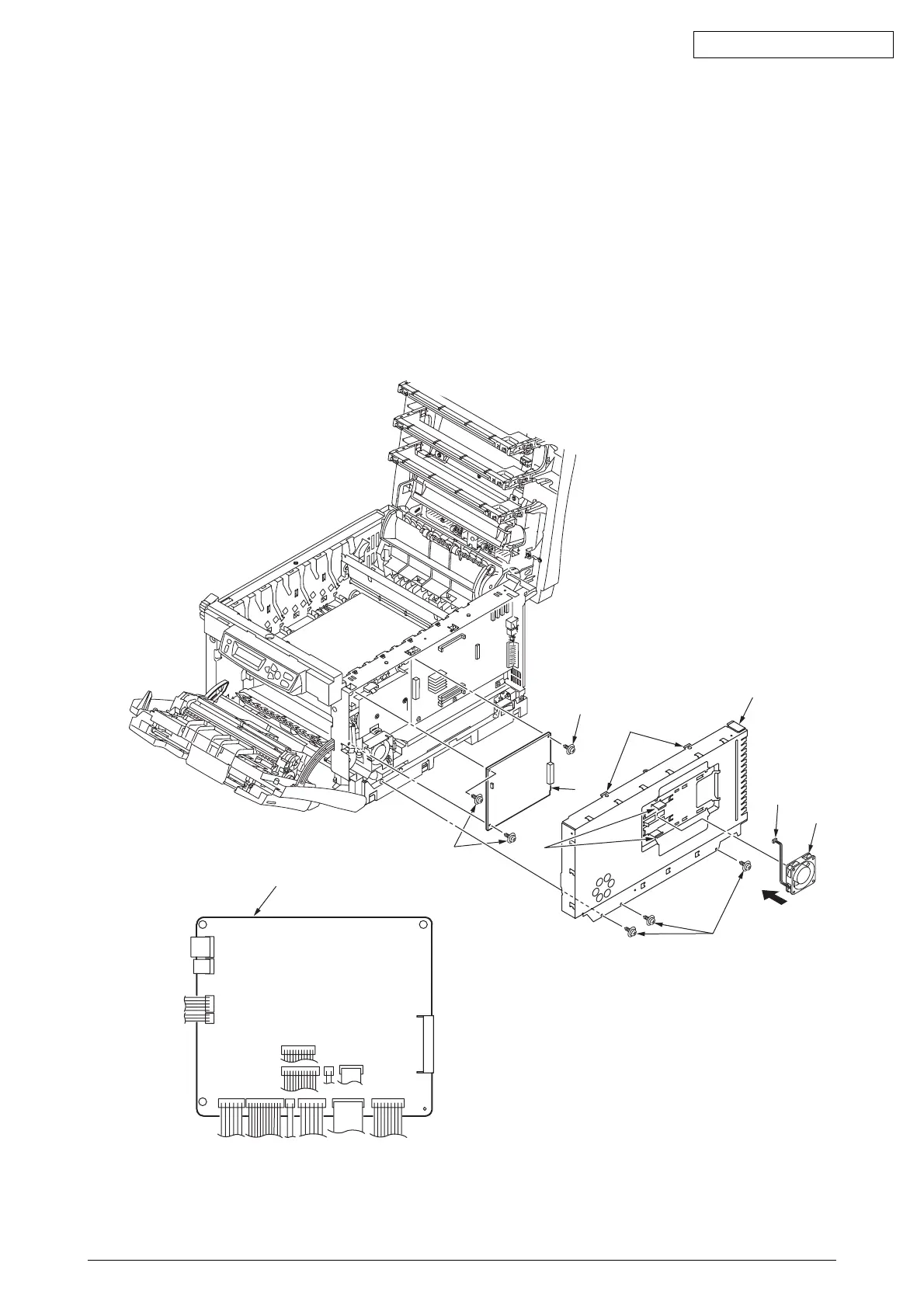

Figure 4-2-7-1 Print Engine Controller PCB (C5400)
