44015503TH Rev. 1
99 /
Oki Data CONFIDENTIAL
4. REPLACEMENT OF PARTS

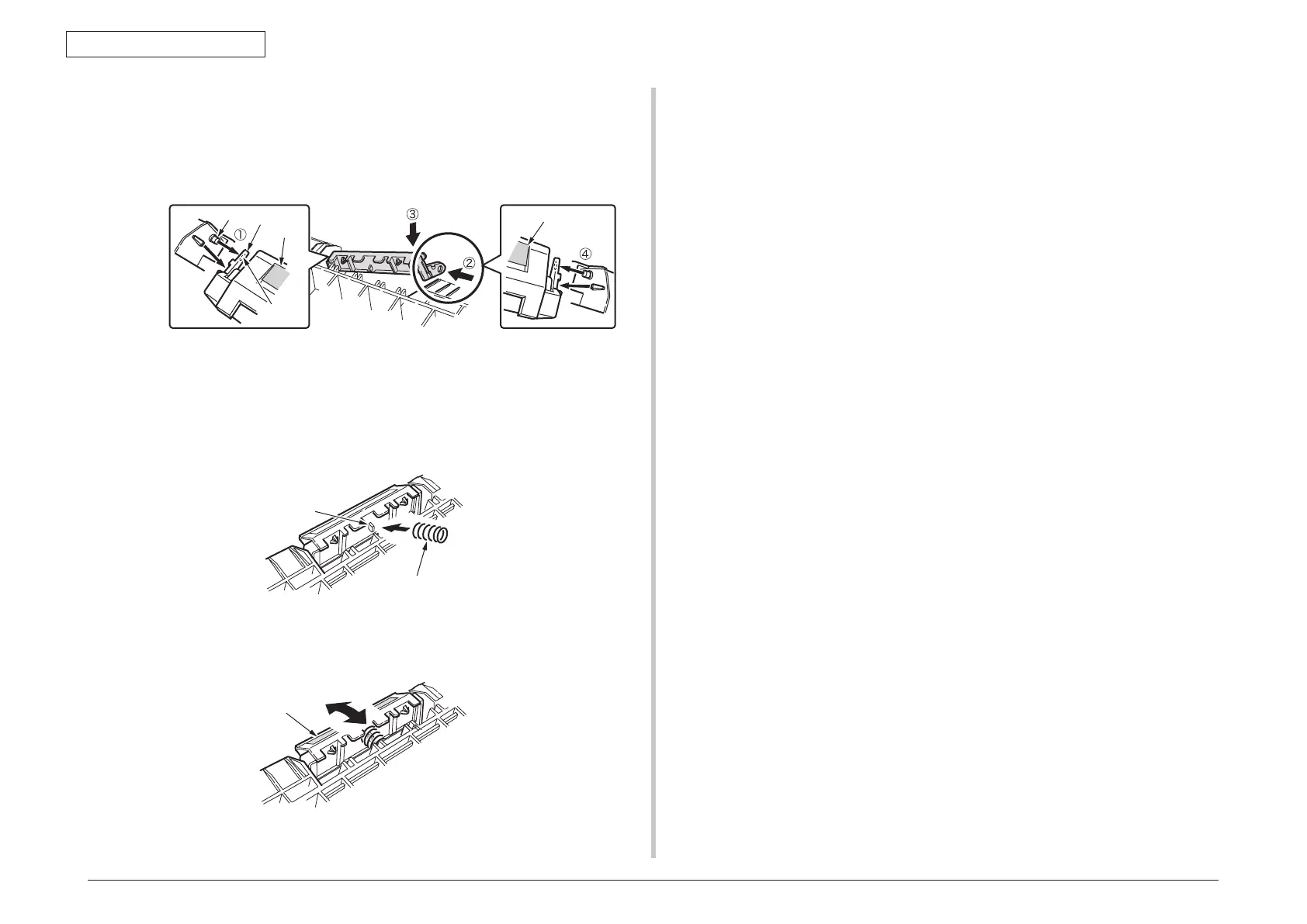

Notes on attaching separator:
1. Insert the hole of one leg of a new separator onto the support of the leg and,
bending the other leg, push the separator from above so as to insert the other
support into the hole of the other leg. Be careful not to touch the pad (rubber)
during this operation.
Pad
Support
Leg
Hole
Pad
2. Make sure the supports are put in the holes of the legs.
3. Insert a new spring onto the post of the separator to attach it.
Note! •
Be careful not to allow the spring to jump.
• The removed spring can be used.
New spring
Post
4. Be sure the separator turns smoothly around the supports. Be careful not to touch
the pad (rubber) during this operation.
Pad
