3. INSTALLATION
Place the print side down.
Paper size dial
Paper guide
Paper loading orientation
A4, B5, Letter

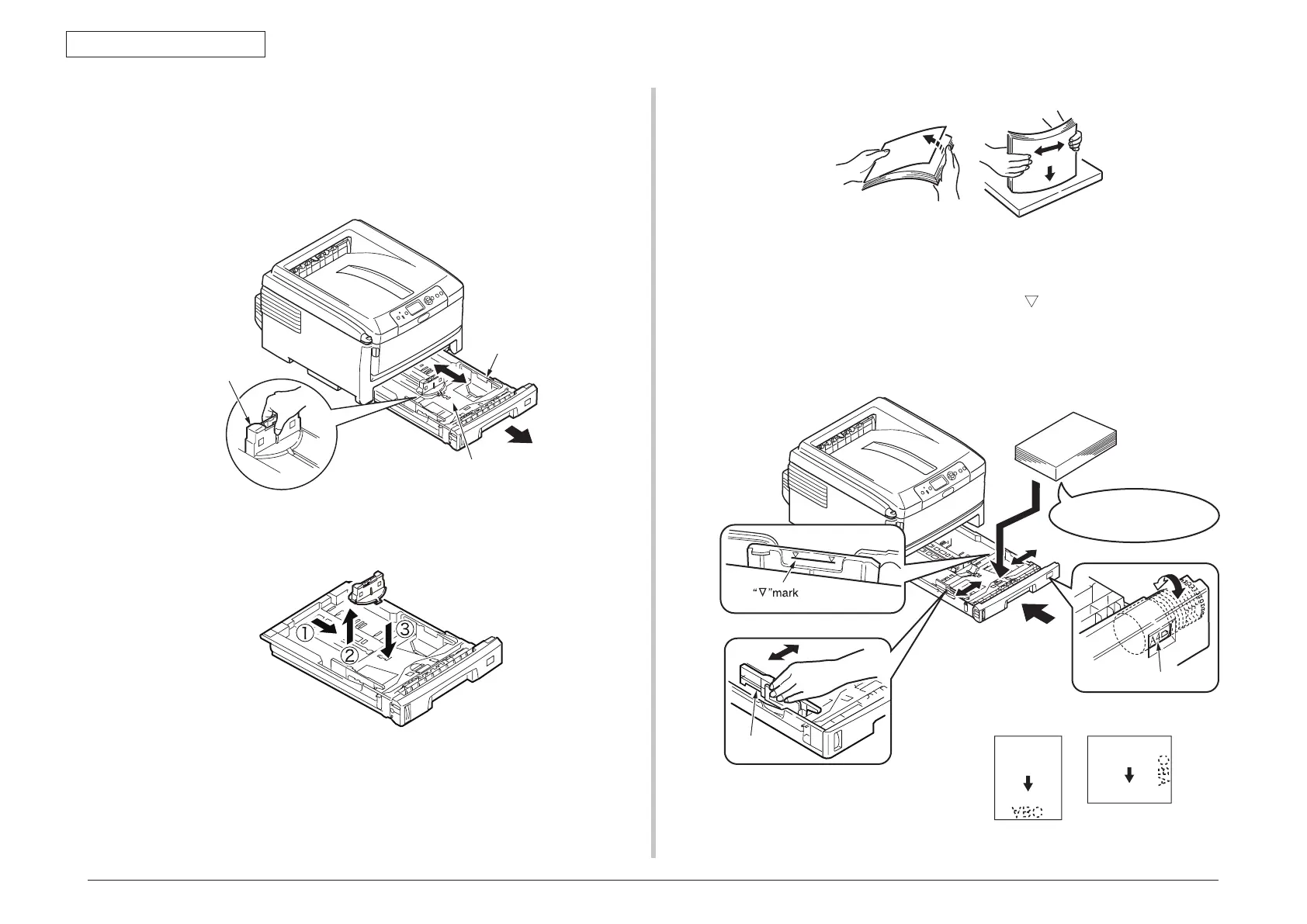

Loading paper in the paper cassette
(1) Pull out the paper cassette.
Note! D
o not remove the rubber from the plate.
(2) Adjust the paper stopper and paper guide to the size of the paper being used.
Note! W
hen setting A6 size paper, move the paper stopper toward you to remove it.
Then attach it to the position shown.
(
3) Fan the edges of paper stack and align the edges of the stack on a level surface.
(4) Load the paper with the print side facing down.
Note! • P
lace the paper against the front side of the paper cassette.
• Do not allow the level of paper to pass the “
” mark of the paper guide (300
sheets of 70 kg paper).
(
5) Hold the paper with the paper guide.
(6) Turn the paper size dial to the size of the paper you load.
(7) Return the paper cassette to the printer.
Plate
Paper guide
Paper stopper
