4. REPLACEMENT OF PARTS

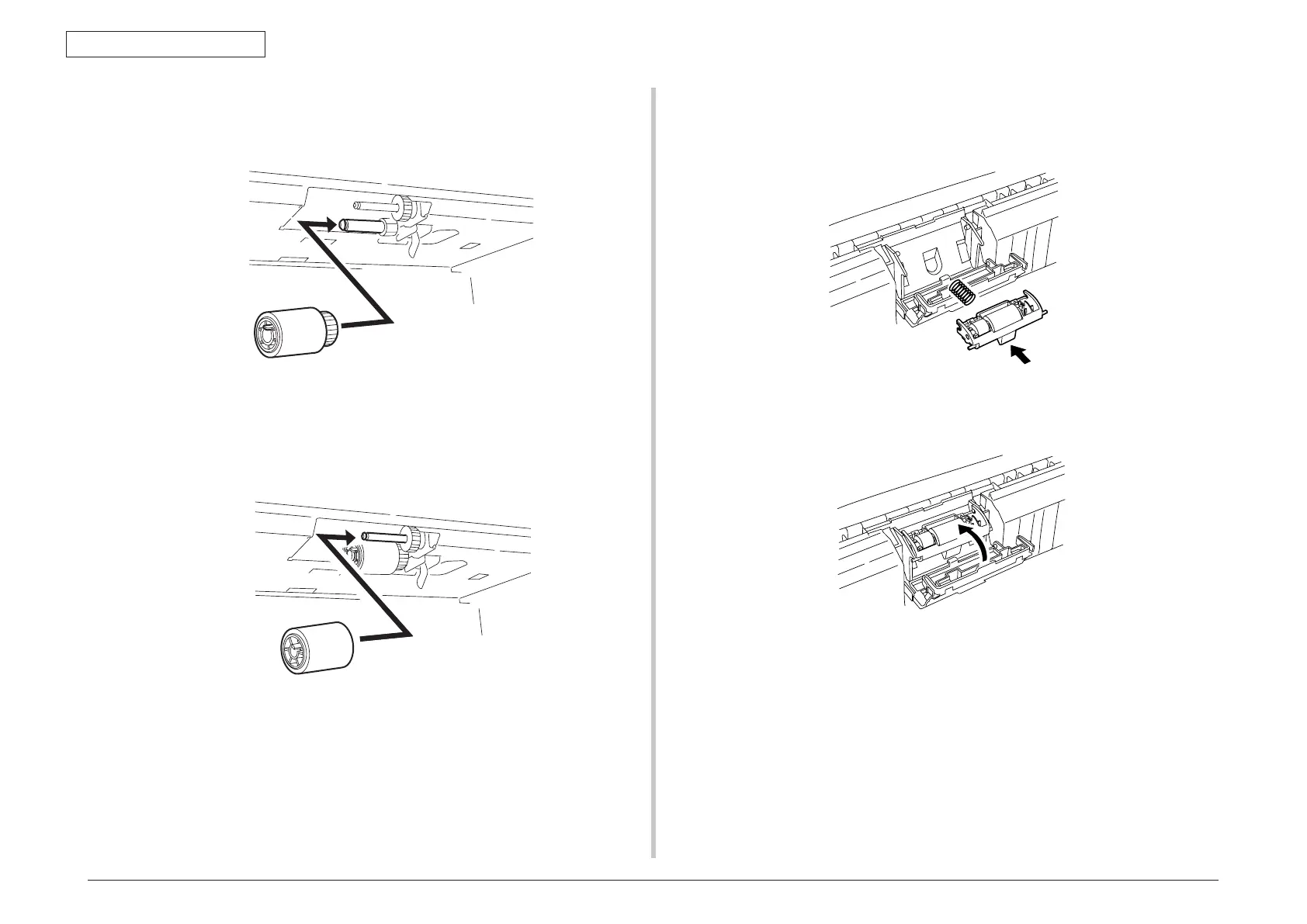

Notes on attaching paper feed rollers:
1. Insert a new paper feed roller (with a gear) onto the inside shaft and turn it all the
way in place.
2. Insert a new paper feed roller (with no gears) onto the outside shaft and turn all the
way in place. Be sure the rollers are not removed.
Notes on attaching retard roller Assy.:
1. Put the spring onto the boss on the rear of a retard roller Assy., and push the
bearing of the Assy. obliquely from below onto the shaft on the side of the cassette.
2
. Be sure that the retard roller Assy. moves smoothly around the shaft and the roller
turns.
To Next Page
