2. DESCRIPTION OF OPERATION
(4) Up/down-motions of ID units
1. The up/down-motions of the ID units take place driven by the lift-up motor.

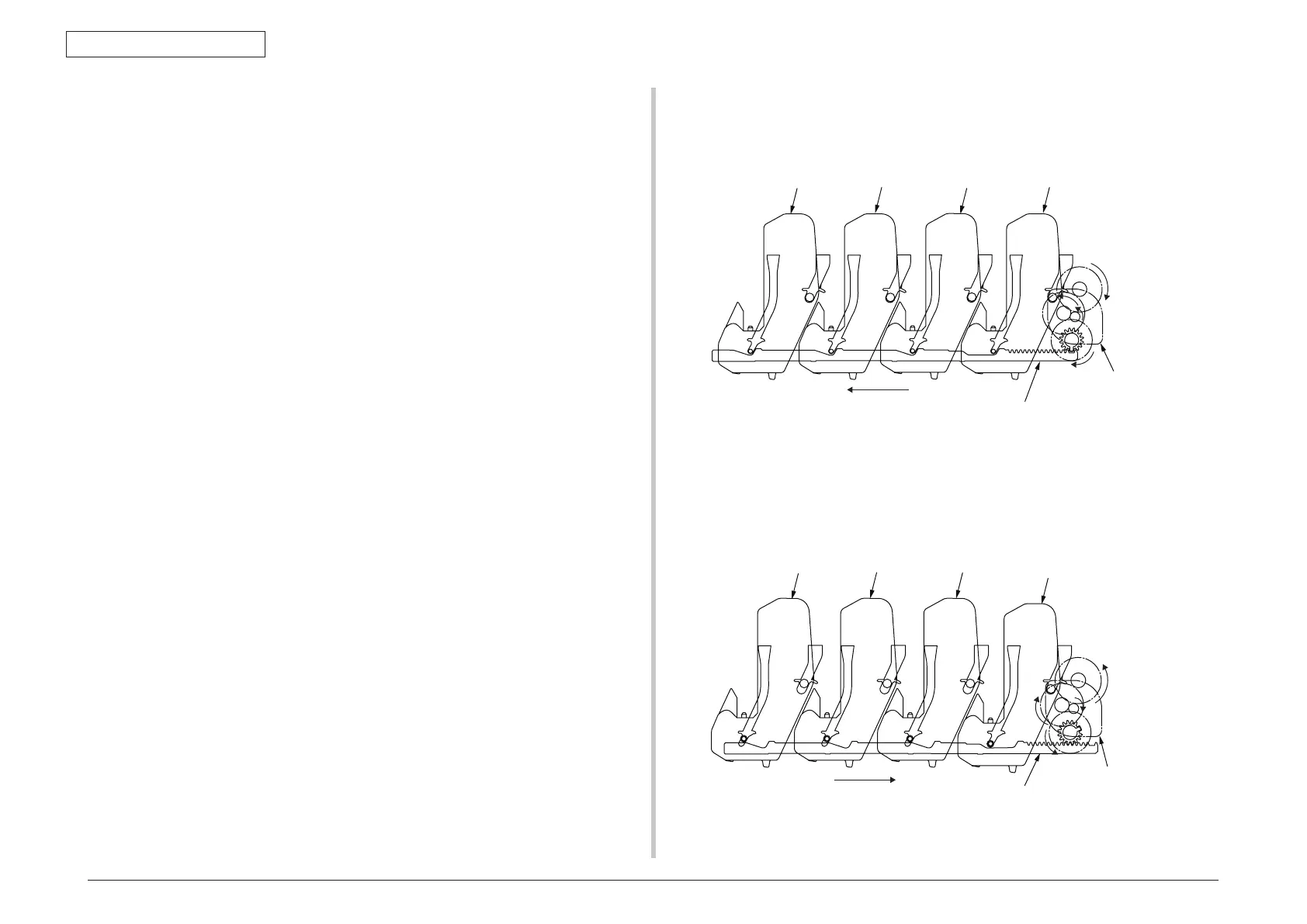

2. Figure 2-6 shows the motions of the different ID units when the printer is
operated for color print. As the lift-up motor rotates (clockwise), the lift-up link
slides to the left, causing the ID units to come down, as can be seen in Figure
2-6. Namely, the printer is readied for color print.
3
. Figure 2-7 shows the motions of the different ID units when the printer is
operated for monochrome print. As the lift-up motor rotates (counterclockwise),
the lift-up link slides to the right, causing the ID units to go up, except for the
K-ID unit, as can be seen in Figure 2-7. Namely, the printer is readied for
monochrome print.
Lift-up link
C-ID unit M-ID unit Y-ID unit K-ID unit
C-ID unit M-ID unit Y-ID unit K-ID unit
Lift-up motor
(counterclockwise)
ID unit operations during color printing
C-ID unit
M-ID unit
Y-ID unit
K-ID unit
Lift-up motor (clockwise)
Lift-up link
ID unit operations during monochrome printing
C-ID unit
M-ID unit
Y-ID unit
K-ID unit
Down
Down
Down
Down
Lift up
Lift up
Lift up
Down
Figure 2-6
Figure 2-7
