44015503TH Rev. 1
37 /
Oki Data CONFIDENTIAL
3. INSTALLATION

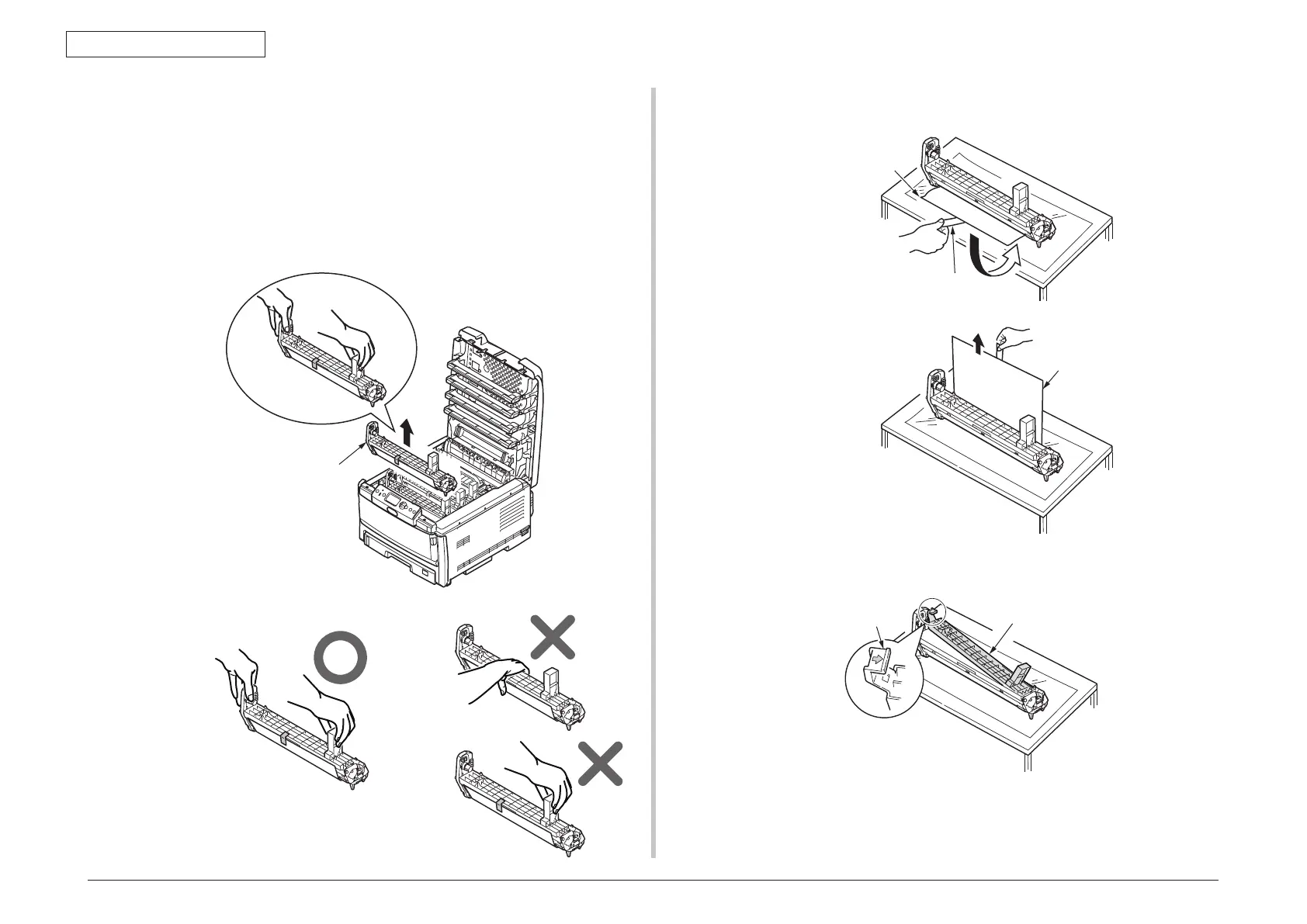

Installing the image drum cartridges
(1) Take out the image drum cartridge (four cartridges) gently.
Note! • T
he image drum (green cylinder part) is very sensitive to scratches,
therefore, special care should be taken on handling.
• D
o not expose the image drum cartridges to direct sunlight or strong light
(approx. 1500 lux or above). Even under room light, do not leave them
exposed for five minutes or longer.
(
2) Put the image drum cartridge on newspaper or something, remove the tape holding
the protective sheet, and pull the sheet out in the direction of the arrow.
<How to hold the image drum cartridge>
(3) Remove the toner cover.
(4) Similarly, remove the protective sheets and toner covers fro the other three image
drums.
Protective sheet
Tape
Protective sheet
To Next Page
