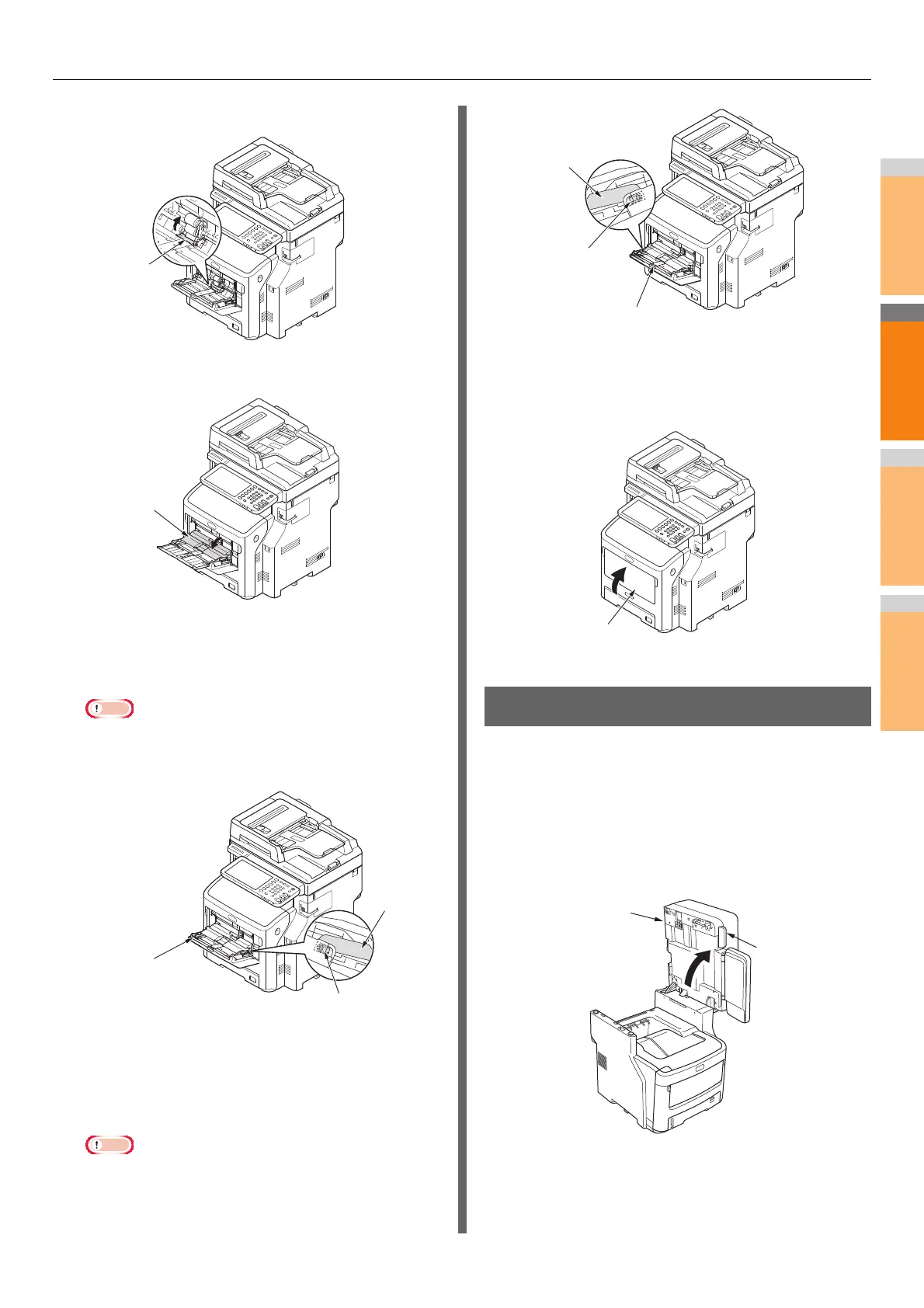

Maintenance
- 73 -
2
1
3
4
5
6
7
7
Close the separation roller cover.
8
Lower the paper set cover.
9
Hook one tab of the paper feed roller cover
by pressing the right arm inward while
lifting up the multi-purpose tray lightly.
Note
If closing the multi-purpose tray without returning the
tab to the correct position, the paper set cover may be
broken. Be sure to return the tab to its original position.
10
Also hook the other tab of the paper feed
roller cover by pressing the left arm inward
while lifting up the multi-purpose tray
lightly.
Note
If closing the multi-purpose tray without returning the
tab to the correct position, the paper set cover may be
broken. Be sure to return the tab to its original position.
11
Close the multi-purpose tray.
If the multi-purpose tray cannot be closed, return the
paper set cover to the correct position by pressing the
paper loading part on the multi-purpose tray downward.
Clean the LED heads
Clean the LED heads if white streaks appear or fading occurs
when printing, or when characters become smudged.
1
Turn OFF power to the machine.
For a detailed explanation, see "Turning Power Off" in
the Setup Guide.
2
Hold the Document holder lever and lift the
Document holder.
Separation
roller cover
Paper set cover
Tab
Right arm
Left arm
Tab
Multi-purpose tray
Multi-purpose tray
Document holder
Document
holder lever
