Moving or Transporting the Machine
- 77 -
2
1
3
4
5
6
7
4

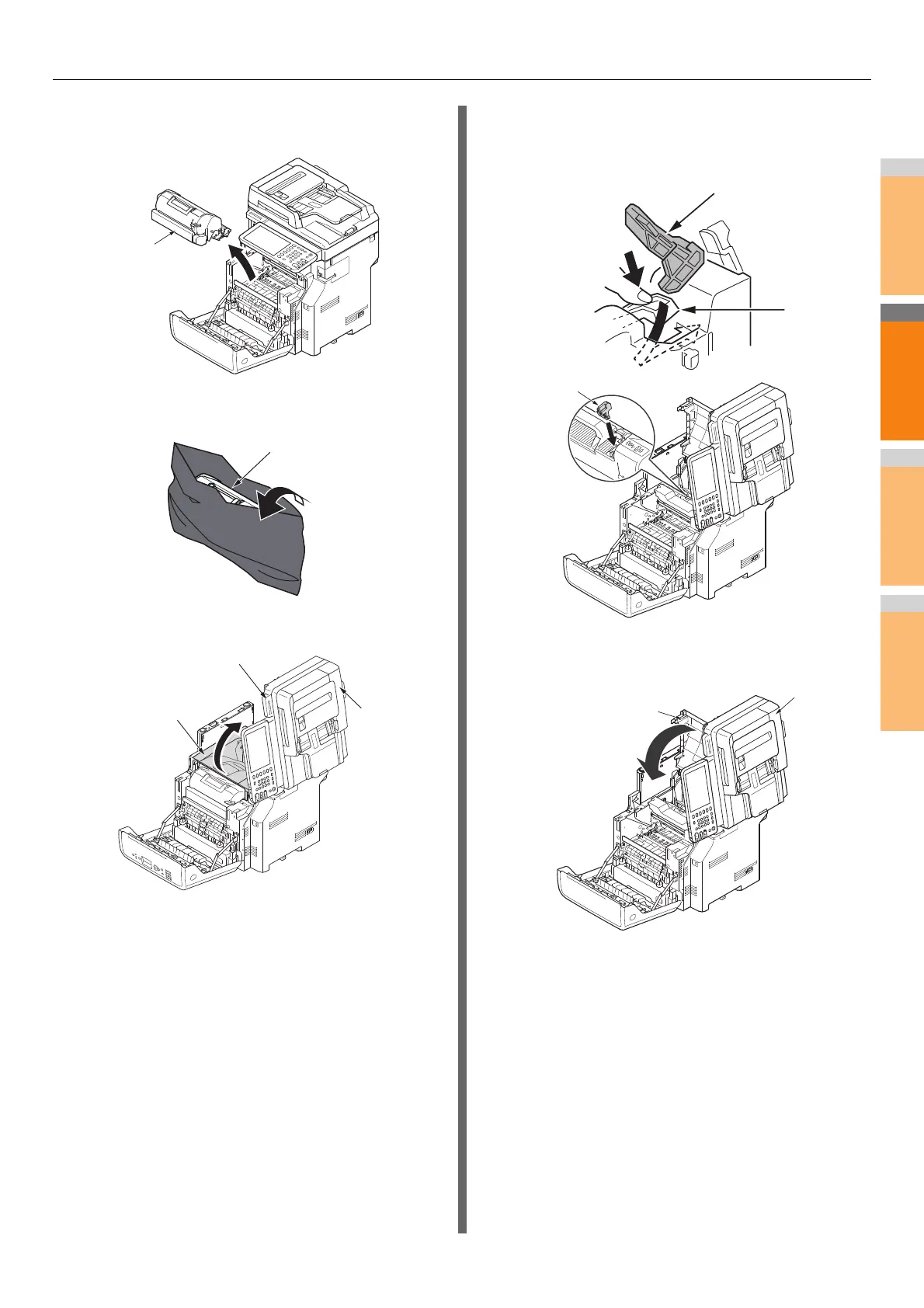

Remove the print cartridge and place it on a
flat surface.
5
Put the print cartridge into a black bag and
tie the bag closed.
6
Hold the Document holder lever and lift the
Document holder then open the top cover.
7
Attach the stopper release to the fuser unit.
Attach the orange stopper release in the direction of the
arrow  while pressing the blue lever of the fuser unit
down in the direction of the arrow .
8
Close the top cover and return the
document holder to its original position.
Print Cartridge
Print Cartridge
Document holder
lever
Top cover
Document
holder
Orange stopper


Blue lever
Orange stopper
Top Cover
Document
holder
