44952001TH Rev.2

4-15

Oki Data CONFIDENTIAL

4.REPLACEMENT OF PARTS

4.2.7.4 Hinge-assy-L / Hinge-assy-R

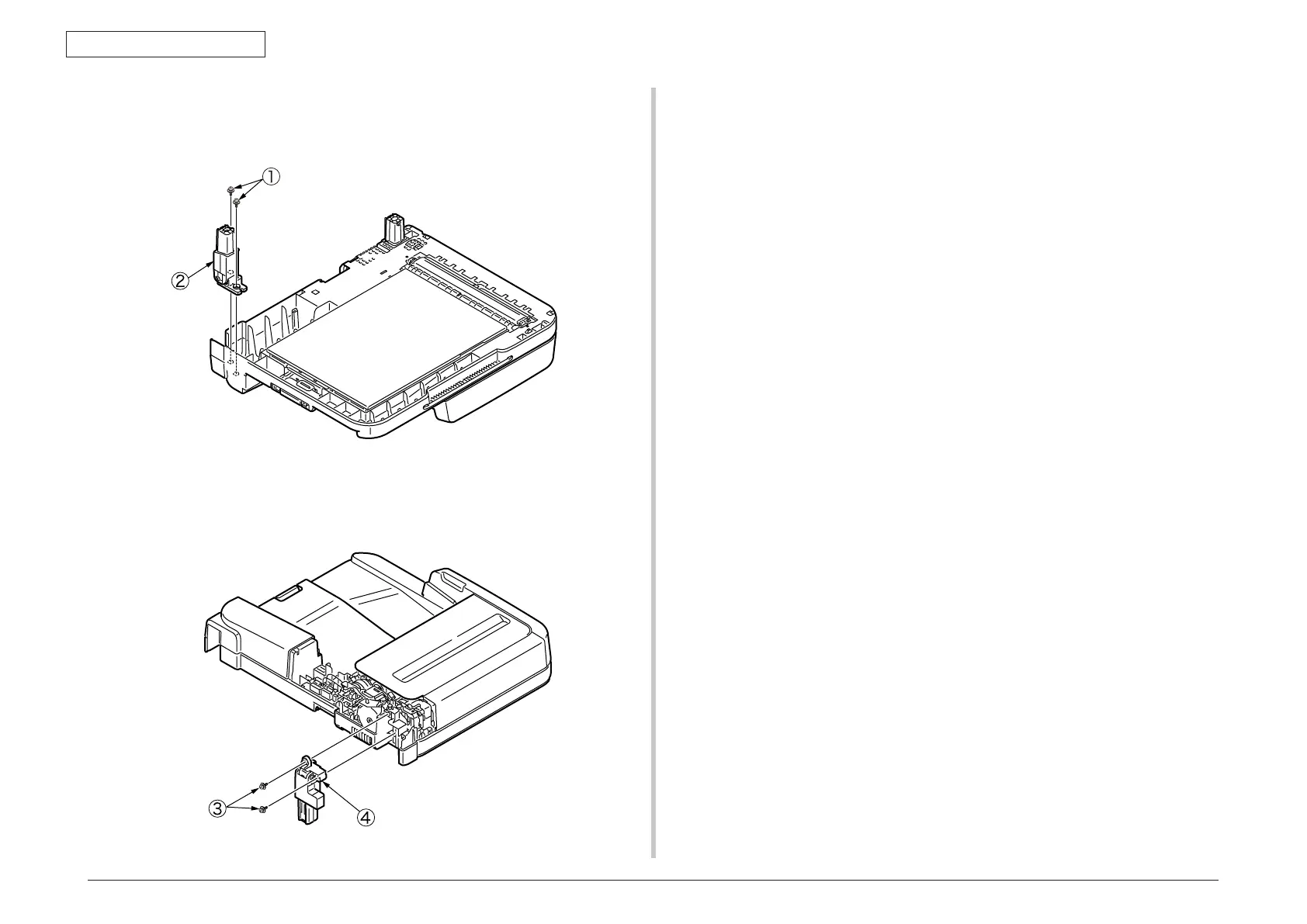

(1) Remove the two screws (L=10mm)

①

and remove the hinge-Assy-R

②

(2) Remove the two screws (L=10mm)

③

and remove the hinge-Assy-L

④

L=10mm
