44952001TH Rev.2
1-5
Oki Data CONFIDENTIAL
1. CONFIGURATION
[ MC342dw/MC362w/MC562dw: Wireless-LAN Specifications ]
The insides of MC342dw/MC362w/MC562dw multi function printers are composed of
the following parts.
•Scannerpart
•Electronicphotographyprocesspart
•Paperpath
•Controlpart(CUpart/PUpart)
•Powersupplyparts(highvoltagepart/lowvoltagepart)
•Wireless-LANModule

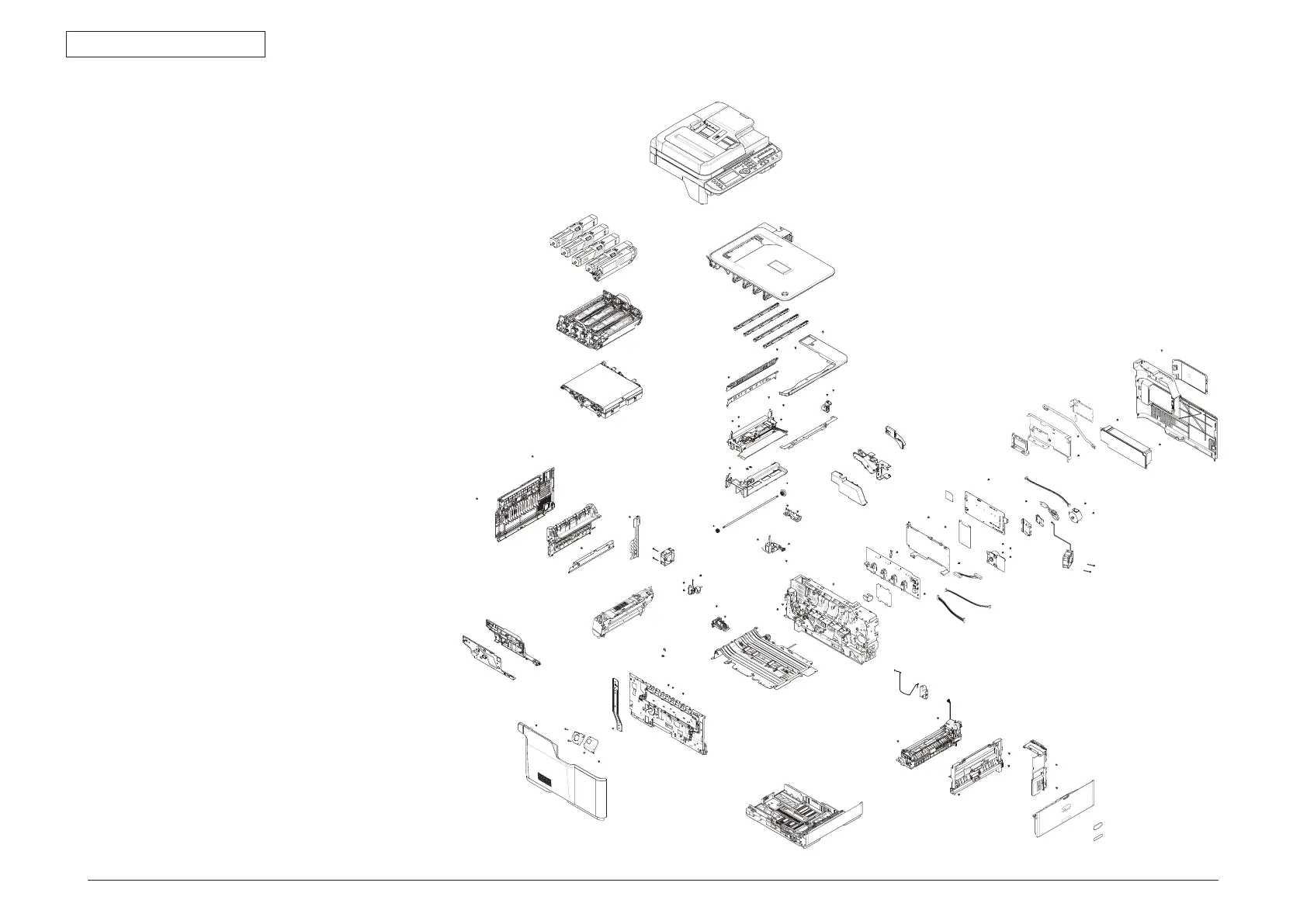

Figure 1-3-2 shows the composition of the MFP.
Figure 1-3-2
