Oki MC362w Maintenance Manual

44952001TH Rev.2
2-7
Oki Data CONFIDENTIAL
2. DESCRIPTION OF OPERATION

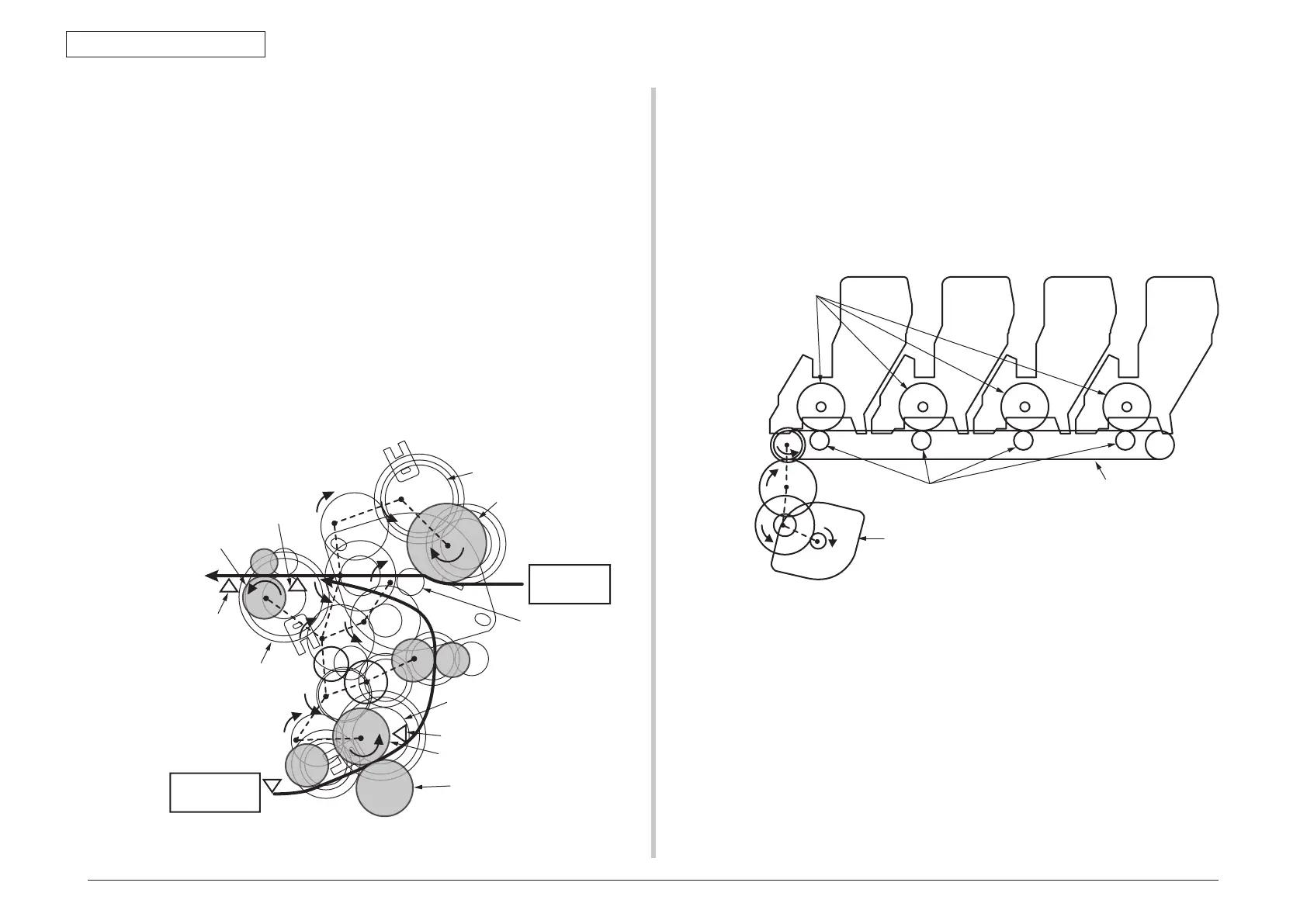

(3) Transport belt
1. As the transport belt motor runs in the direction of the arrow, the transport
belt is driven. The belt unit consists of one transport roller placed
immediately underneath each color drum, with a transport belt inserted in
between them.
As the specified voltage is applied, the transport belt and the transport
rollers carry the paper on the transport belt to the fuser unit as transferring
the toner images present on each color drum to the paper.
YMC
Drum
Transportbeltroller
Transportroller
Transportbelt
K
Figure 2-2
(1) Paper fed from 1st Tray
1. As illustrated in Figure 2-1, after the paper feed motor starts running
(clockwise) and the 1st clutch comes ON, the paper is fed from the 1st Tray.
2. After causing the IN sensor to come ON, the paper is further carried over a
certain distance to finally hit the registration roller. (This corrects skew of the
paper.)
3. It causes the registration clutch to come ON and has the registration roller
carry the paper.
(2) Paper fed from MPT
1. As illustrated in Figure 2-1, after the paper feed motor starts running
(clockwise) and the MPT clutch comes ON, the paper is fed from the MP
Tray.
2. After causing the IN sensor to come ON, the paper is further carried over a
certain distance to finally hit the registration roller. (This corrects skew of the
paper.)
3. It causes the registration clutch to come ON and has the registration roller
carry the paper.
IN sensor
Registration roller
WR sensor
Registration clutch
Paper feed roller
Paper feed sensor
Separation roller
1st clutch
Paper feed from
the 1st clutch
Paper feed motor
Paper feed
from the MPT
MPT clutch
Paper feed roller
Figure 2-1

Oki MC362w Specifications

General

Duplex printing	Yes
Print technology	LED
Time to first page (black, normal)	8.5 s
Time to first page (color, normal)	9 s
Print speed (black, normal quality, A4/US Letter)	25 ppm
Print speed (color, normal quality, A4/US Letter)	23 ppm
Copier resize	25 - 400 %
Maximum copy resolution	600 x 600 DPI
Maximum number of copies	99 copies
Time to first copy (black, normal)	12 s
Time to first copy (color, normal)	14 s
Copy speed (black, normal quality, A4)	25 cpm
Copy speed (color, normal quality, A4)	23 cpm
Scan drivers	TWAIN
Scanner type	Flatbed & ADF scanner
Input color depth	48 bit
Output color depth	24 bit
Scan speed (black)	2 ppm
Scan speed (color)	3 ppm
Image formats supported	JPG, TIF
Document formats supported	PDF
Optical scanning resolution	1200 x 1200 DPI
Faxing	Mono faxing
Fax memory	4 MB
Modem speed	33.6 Kbit/s
Fax transmission speed	3 sec/page
Digital sender	-
Printing colors	Black, Cyan, Magenta, Yellow
Maximum duty cycle	45000 pages per month
Recommended duty cycle	3000 - 5000 pages per month
Number of print cartridges	4
Page description languages	Epson FX, IBM ProPrinter, PCL 5c, PCL 6, PostScript 3
Maximum internal memory	768 MB
Sound pressure level (copying)	55.5 dB
Sound pressure level (printing)	54 dB
Sound pressure level (quiet mode)	37 dB
Paper input type	Paper tray
Total input capacity	350 sheets
Total output capacity	150 sheets
Maximum input capacity	880 sheets
Multi-Purpose tray input capacity	100 sheets
Auto document feeder (ADF) input capacity	50 sheets
Envelopes sizes	9, 10, C5, DL
Maximum print size	216 x 356 mm
Duplex media weight	64 - 176 g/m²
Paper tray media types	Photo paper, Plain paper
Paper tray media weight	64 - 220 g/m²
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Display	LCD
Product color	Gray
Display resolution	320 x 128 pixels
Market positioning	Business
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Cabling technology	10/100Base-T(X)
Security algorithms	802.1x RADIUS, WEP, WPA, WPA-TKIP, WPA2-AES, WPS, WPS-PBC, WPS-PIN
Ethernet LAN data rates	10, 100 Mbit/s
Mobile printing technologies	Apple AirPrint, Google Cloud Print
Supported network protocols (IPv6)	TCP/IPv4&v6, SMTP, POP3, HTTP, SNMPv1&v3, DHCP, DNS, LPR, Port9100, BOOTP, ARP, FTP, CIFS, LDAP, SLP, Bonjour, NetWare, EtherTalk, NetBEUI, LLTD
Standard interfaces	Ethernet, USB 2.0, Wireless LAN
USB 2.0 ports quantity	1
Power consumption (off)	0.5 W
Power consumption (standby)	1.5 W
Power consumption (PowerSave)	20 W
Power consumption (average operating)	570 W
Mac operating systems supported	Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Server operating systems supported	Windows Server 2003, Windows Server 2008, Windows Server 2008 R2
Windows operating systems supported	Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Depth	509 mm
Width	427 mm
Height	444 mm
