(7) Cover-opening motions of the color registration sensor and the density sensor
1. As illustratedinFigure2-9,when thesolenoidisenergized,thelinklever
moves, causing the cover of the color registration sensor and the density
sensor to open.
2. Asthesolenoidisde-energized,thespringpushesthecover,causingthe
cover of the color registration sensor and the density sensor to close.

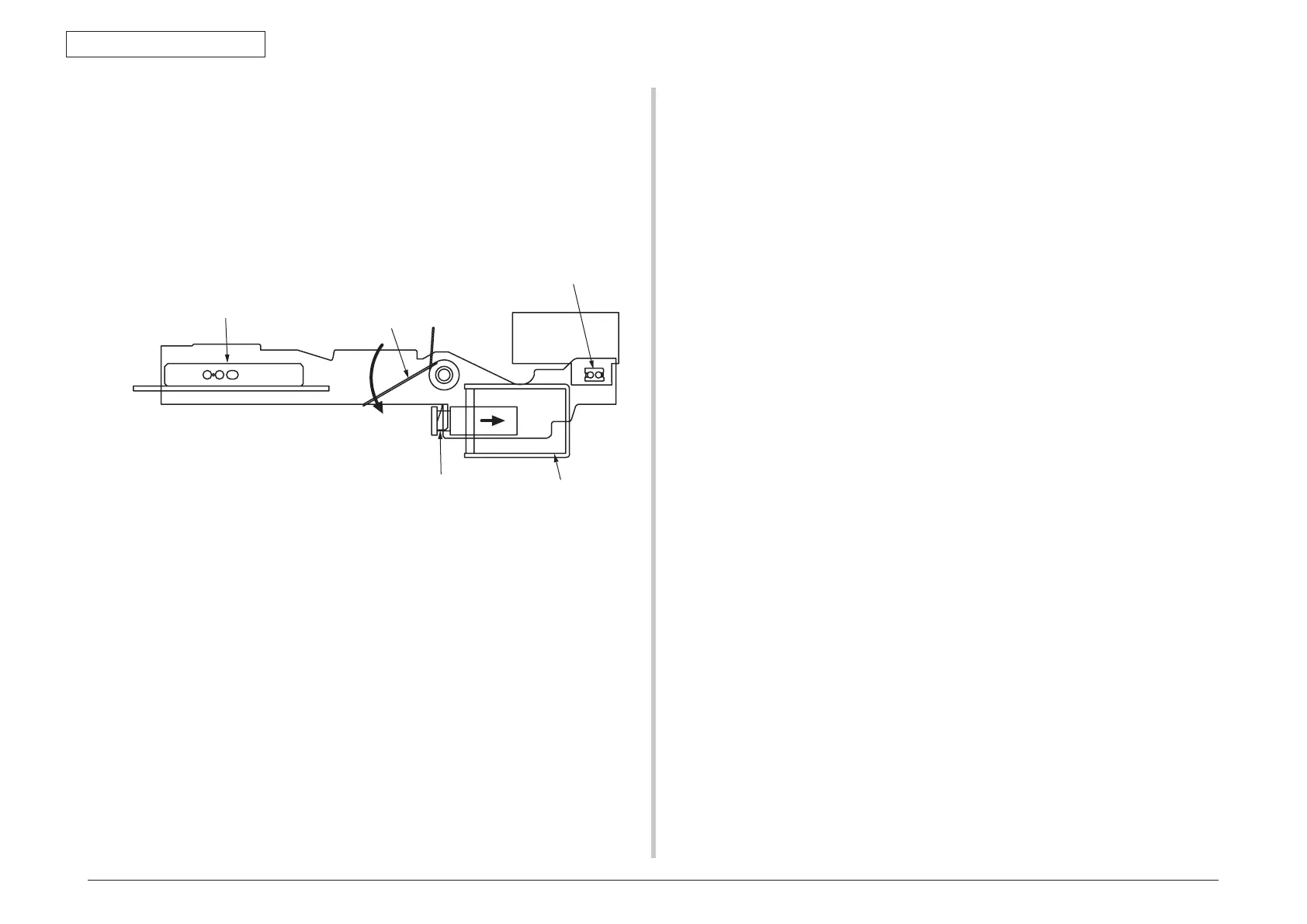

Figure 2-9
Density sensor
Spring
Color registration sensor
Link lever
Solenoid
