17 • Setting Up Your Printer
5.Move the paper lever (3) — on the right side of the printer —
toward the front of the printer to the continuous forms symbol.

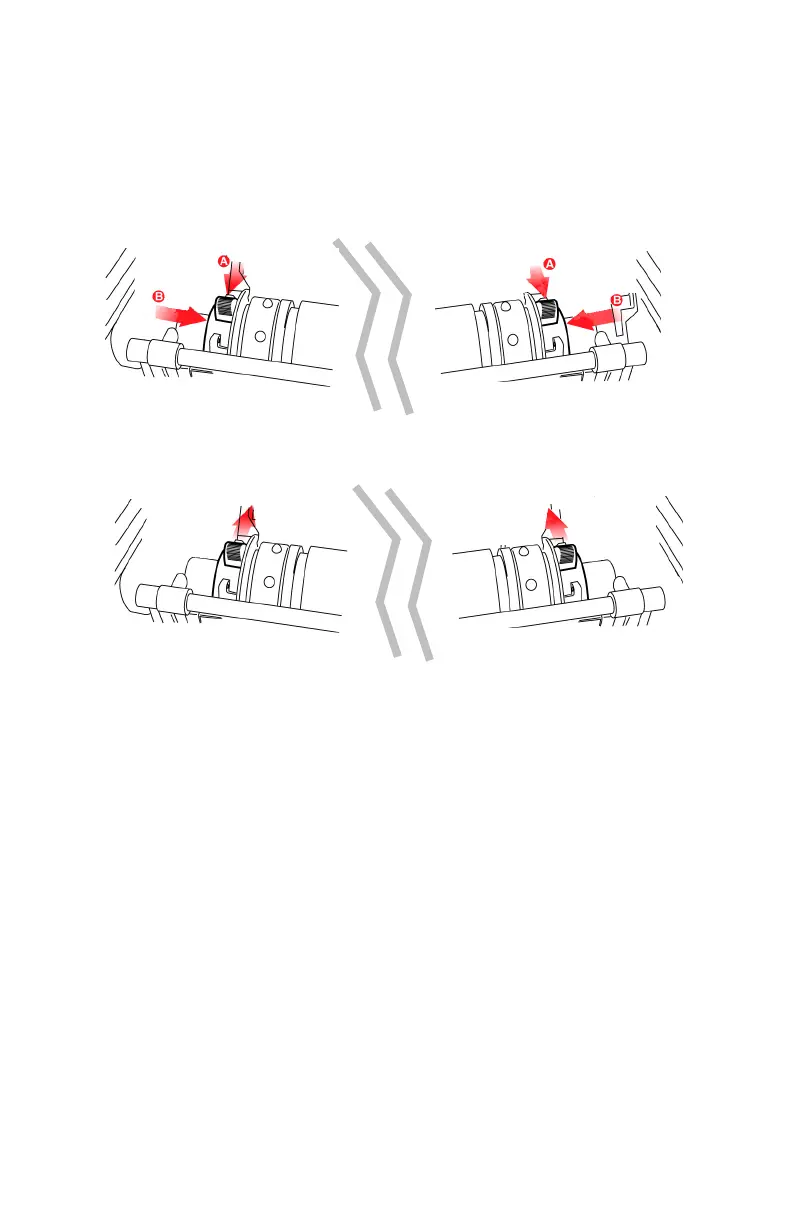

6.Pull the lock levers (A) on the sprocket wheels at either end of
the platen forward, then adjust the sprocket wheels (B) so that
the sprockets align with the holes in the continuous forms you
are using.
7.Push the levers back to lock the sprocket wheels in position.
