5699-E P-23
SECTION 3 OPERATION (OF CNC LATHE)

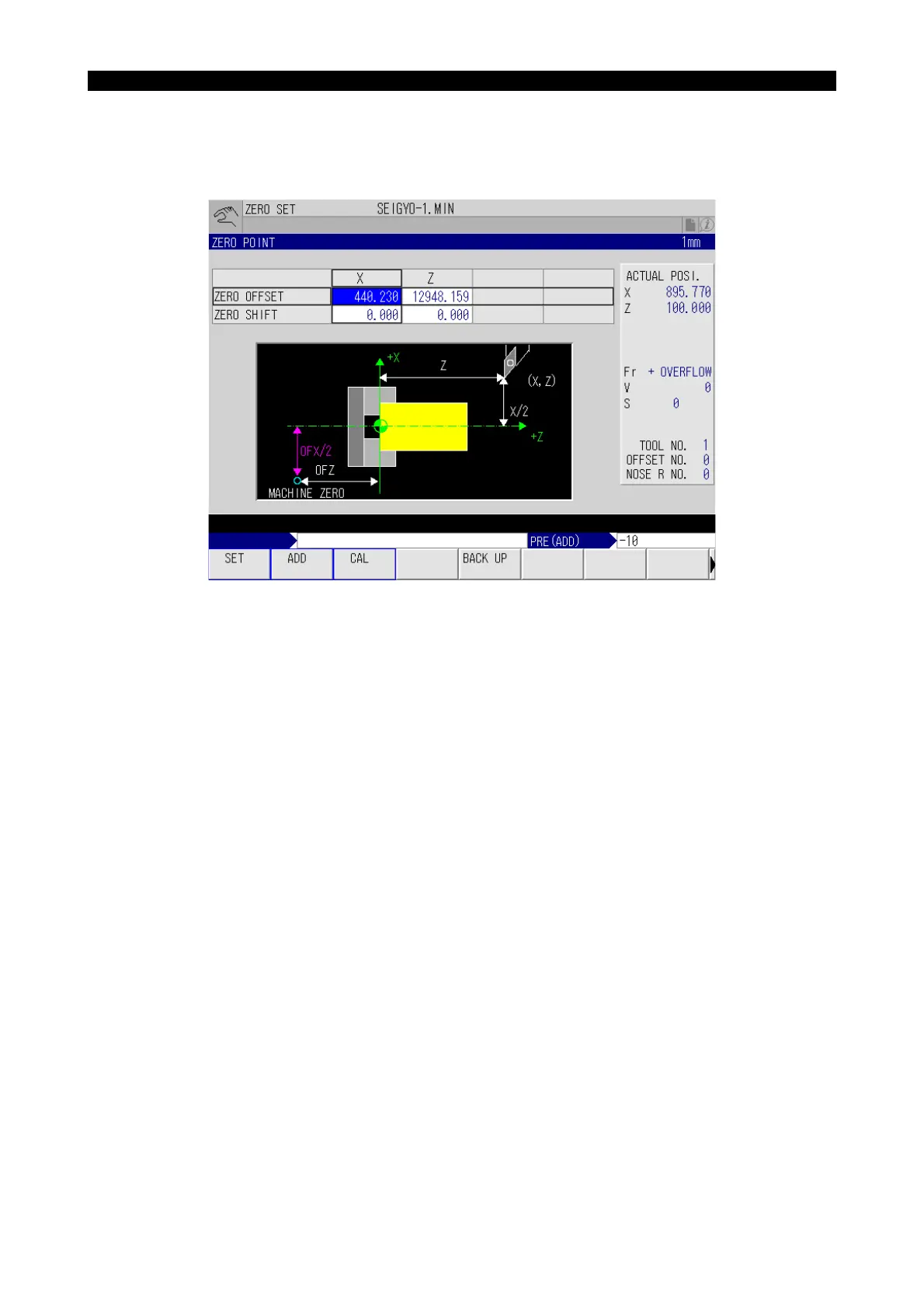

5- Press the WRITE key, and the display screen changes as shown below.
With the WRITE key pressed, the following calculation is performed in the control and the
result is stored as the X-axis zero offset value.
450.230+(-10.000)=440.230
LE11214R0100500090004
For Z-axis zero offset entry, the same procedure applies.
To Next Page
