2 – General Introduction
3
Chapter 2 │General Introduction
Subject
The MX 32 controller is intended for light units that do not require an electrical
cabinet.
The MX 32 measurement and alarm controller can measure 1 or 2 channels
independently. Each channel is linked to one or more sensors installed in the
locations being monitored. The measurement from the sensor is displayed on
the MX 32 controller and compared to the alarm thresholds. In the event that
the measurement exceeds the threshold, the controller activates the relays
which can be used to control external components.
View: Front internal
The MX 32 controller is composed of the following components:
■ A wall-mounted enclosure (ref. A) equipped with a terminal cover (ref. F), a
faceplate (ref. C) and a transparent hinged cover (ref. D) ;
■ a power supply board (analog) (ref. E) ;
■ a display card (microprocessor) (ref. B).

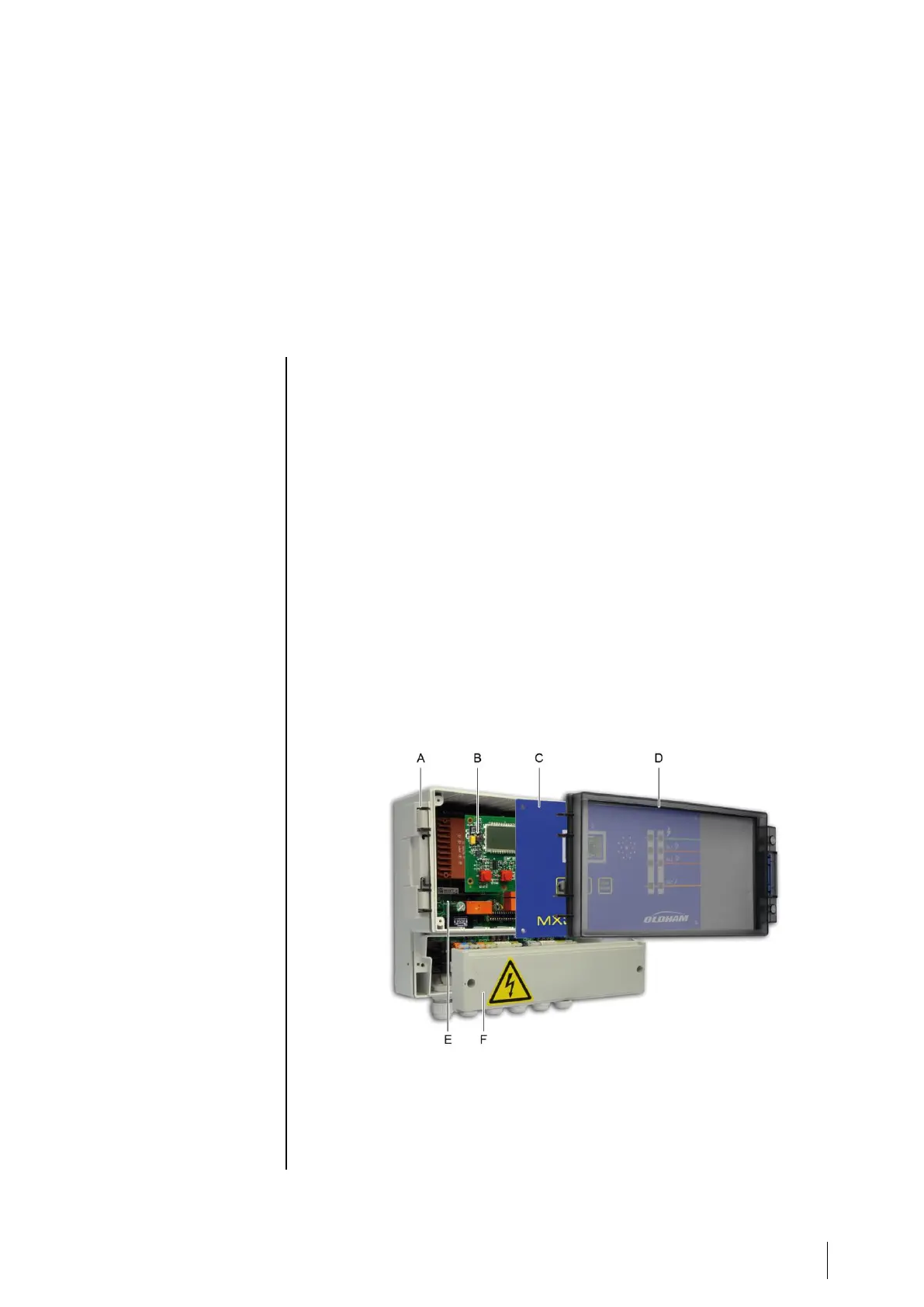

Figure 1: Overall view of the MX 32 controller components.
