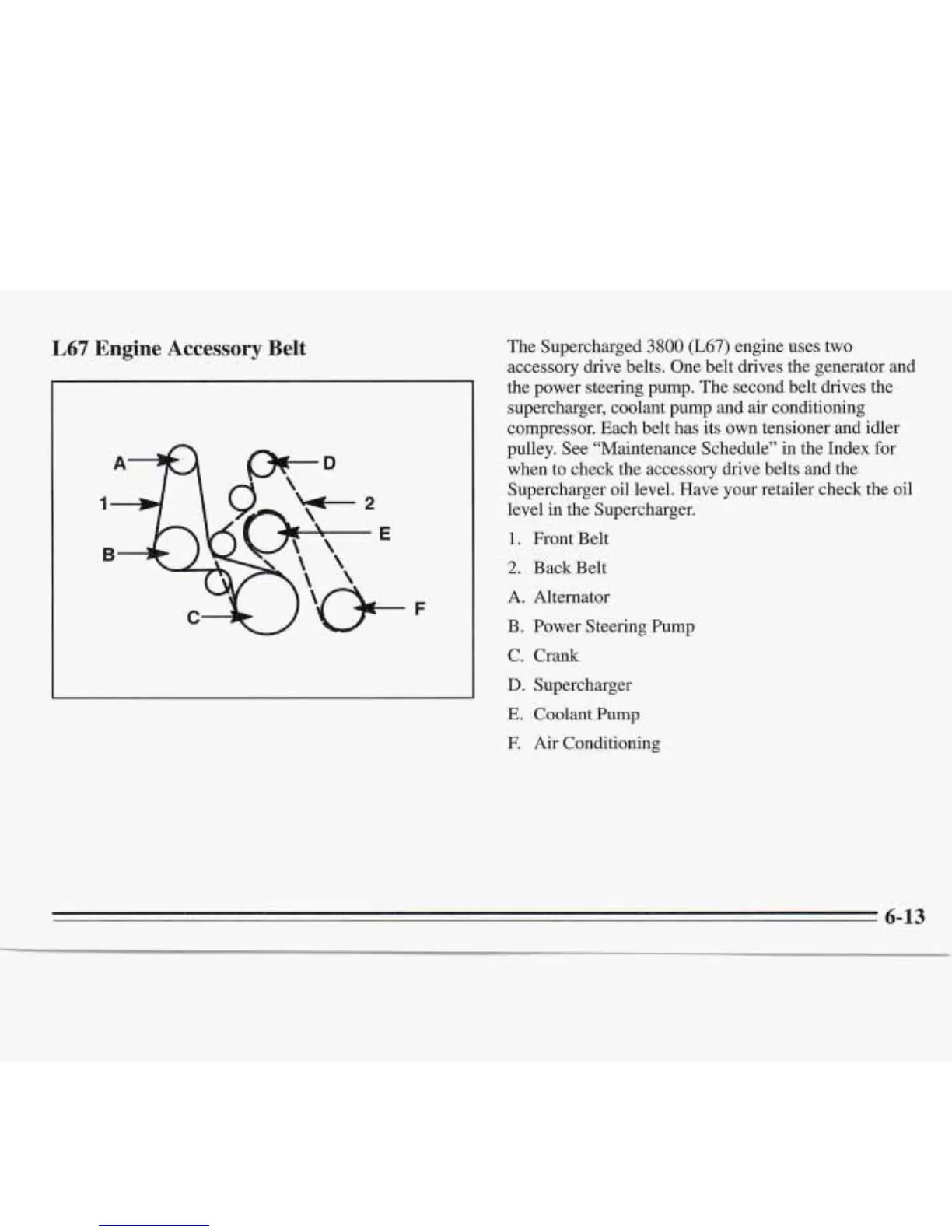

L67 Engine Accessory Belt
F
The Supercharged 3800 (L67) engine uses two
accessory drive belts. One belt drives the generator and
the power steering pump. The second belt drives the
supercharger, coolant pump and air conditioning
compressor. Each belt has its own tensioner and idler
pulley.
See “Maintenance Schedule” in the Index for
when to check the accessory drive belts and the
Supercharger oil level. Have your retailer check the oil
level in the Supercharger.
1. Front Belt
2. Back Belt
A. Alternator
B
. Power Steering Pump
C. Crank
D. Supercharger
E. Coolant Pump
F. Air Conditioning
