Adjusting the Outfeed Side Guides on a Standard Outfeed Table
Adjust the side guide extensions so that they are approximately 1/4 inch from the cutting
knives. Loosen the outfeed guide adjustment knobs. Adjust the outfeed side guides to

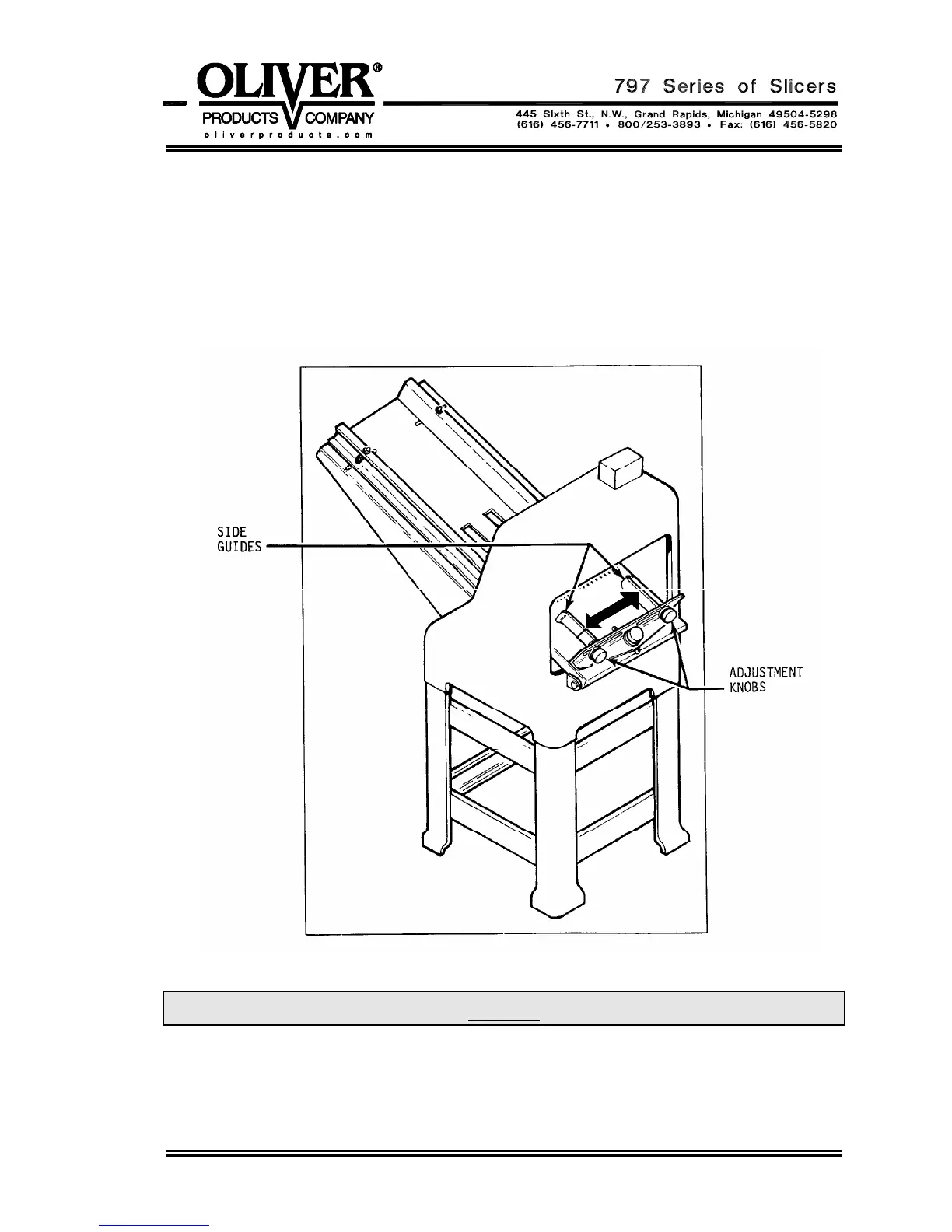

align with the infeed guides. See the illustration, which follows. Once satisfied with the
location re-tighten the side guide adjustment knobs. Proper adjustment of these guides
will keep the end slices from falling over as the product exits the cutting knives.
NOTE
OPTIONAL OUTFEED TABLE GUIDES ARE ADJUSTED WITH HAND
PRESSURE IN A FASHION SIMILAR TO THAT OF THE INFEED GUIDES.
AS WITH THE STANDARD OUTFEED TABLE ALIGN THE OUTFEED
GUIDES WITH THE INFEED GUIDES.
