0797S20069 6-4
Removing the Blade Frames (Continued)
CAUTION
THE BLADES ARE EXTREMELY SHARP.
ALWAYS HANDLE BLADE FRAMES WITH CARE.

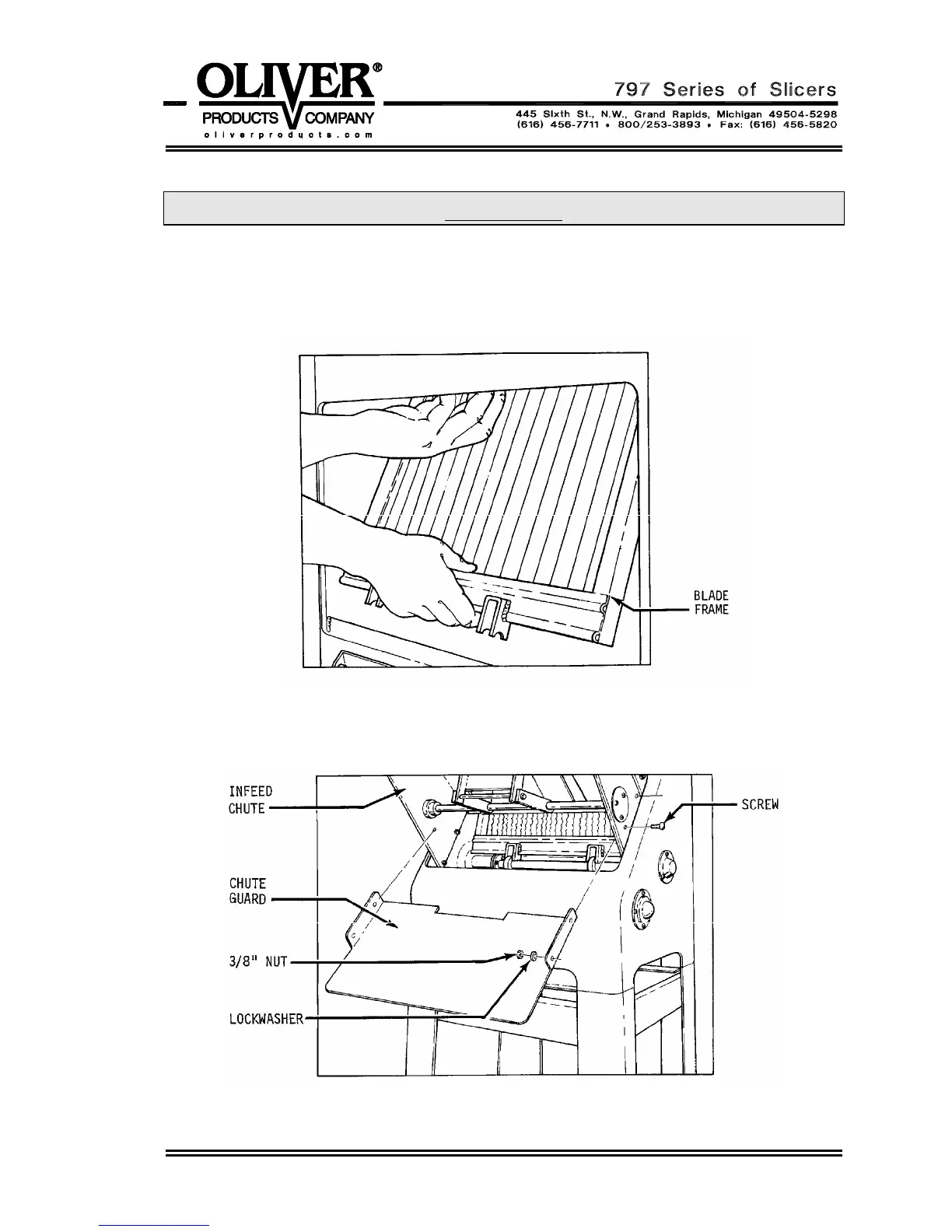

The blade frame can now be carefully lifted from the slicer. See below.
Removal of the infeed side blade frame is accomplished in a similar fashion. However
the chute guard must first be removed by removing the four knobs which hold it in place
this will allow access to the locking cams. See the illustration below.
