Olivetti d-Copia 200D Service Manual

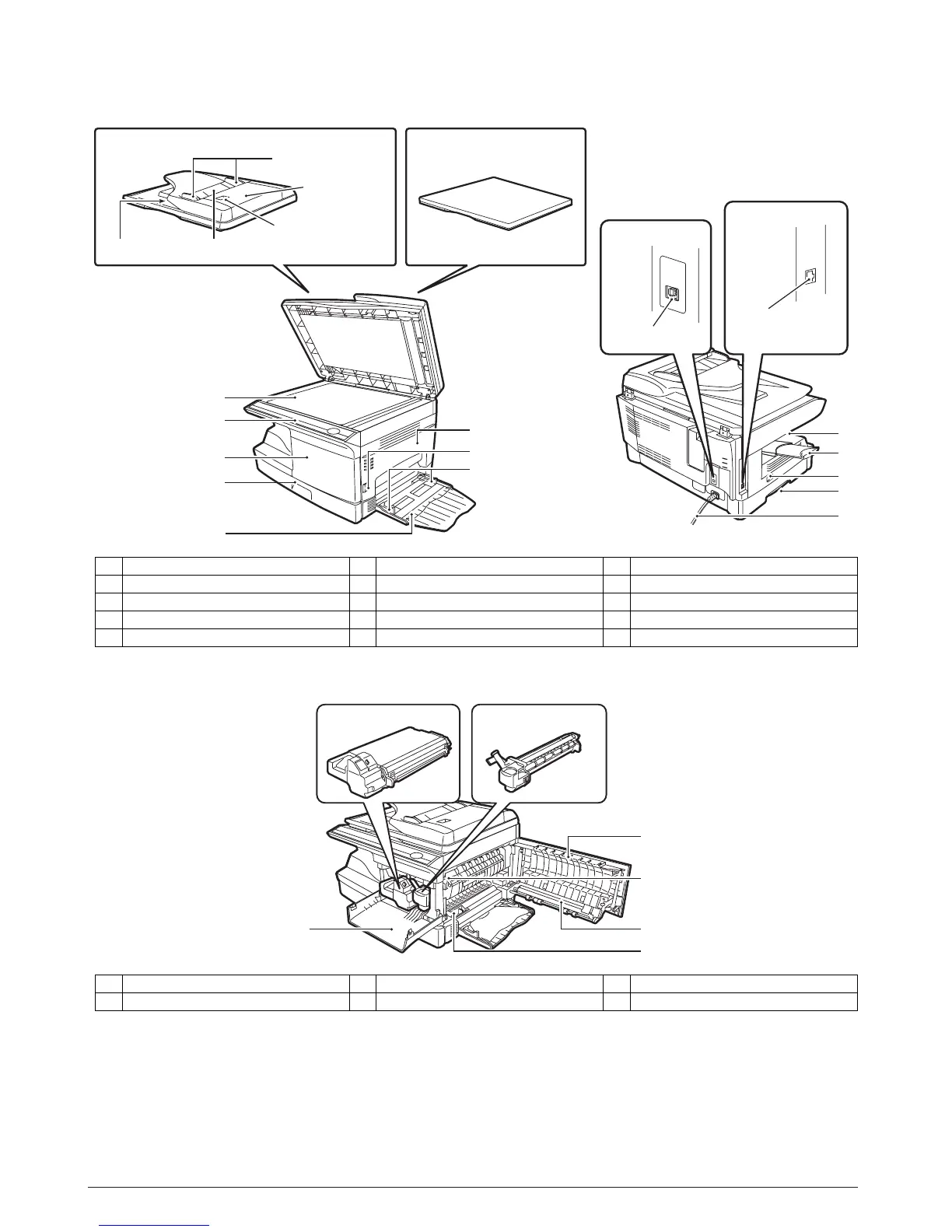

[4] EXTERNAL VIEWS AND INTERNAL STRUCTURES
1. Appearance
2. Internal
1 Document glass 2 Operation panel 3 Front cover
4 Paper tray 5 Multi-bypass tray 6 Side cover
7 Side cover open button 8 Bypass tray paper guides 9 Paper output tray
10 Paper output tray extension 11 Power switch 12 Handle
13 Power cord
1 Front cover 2 Side cover 3 Fusing unit release lever
4 Transfer charger 5 Charger cleaner
LAN connector
(d-Copia 201D only)
Interface
USB connector
Interface
Original cover
Exit area
2
3
4
1
6
8
7
9
10
Original guide
Document feeder tray
Peep hole
Document
feeder cover
11
13
5
12
SPF (d-Copia 201D)
TD cartridge Drum cartridge
3
4
5
2
1
Y109500-5 Service Manual 4-1
(d-Copia 200D)

Olivetti d-Copia 200D Specifications

General

Print technology	Laser
Maximum resolution	600 x 600 DPI
Time to first page (black, normal)	9.6 s
Print speed (black, normal quality, A4/US Letter)	15 ppm
Printing colors	Black
Scanner type	Flatbed scanner
Grayscale levels	256
Copier resize	25 - 400 %
Maximum number of copies	99 copies
Copy speed (black, normal quality, A4)	20 cpm
Total input capacity	300 sheets
Internal memory	16 MB
Dimensions (WxDxH)	518 x 445 x 299 mm
All-in-one functions	Copy, Scan
Standard media sizes	A4
Supported media weight(s)	56/128 g/m²
Color all-in-one functions	scan, n
Compatible operating systems	Windows 98/Me/2000/XP/Vista
USB port	Yes
Standard interfaces	USB 2.0
Market positioning	Home & office

Weight and Dimensions

Weight	17800 g
