Olivetti d-Copia 200D Service Manual

3)
Remove four screws, and remove the operation cabinet.
4) Remove four screws, and remove the operation PWB.
C. Assembly procedure
For assembly, reverse the disassembly procedure
3. Optical section
A. List
B. Disassembly procedure

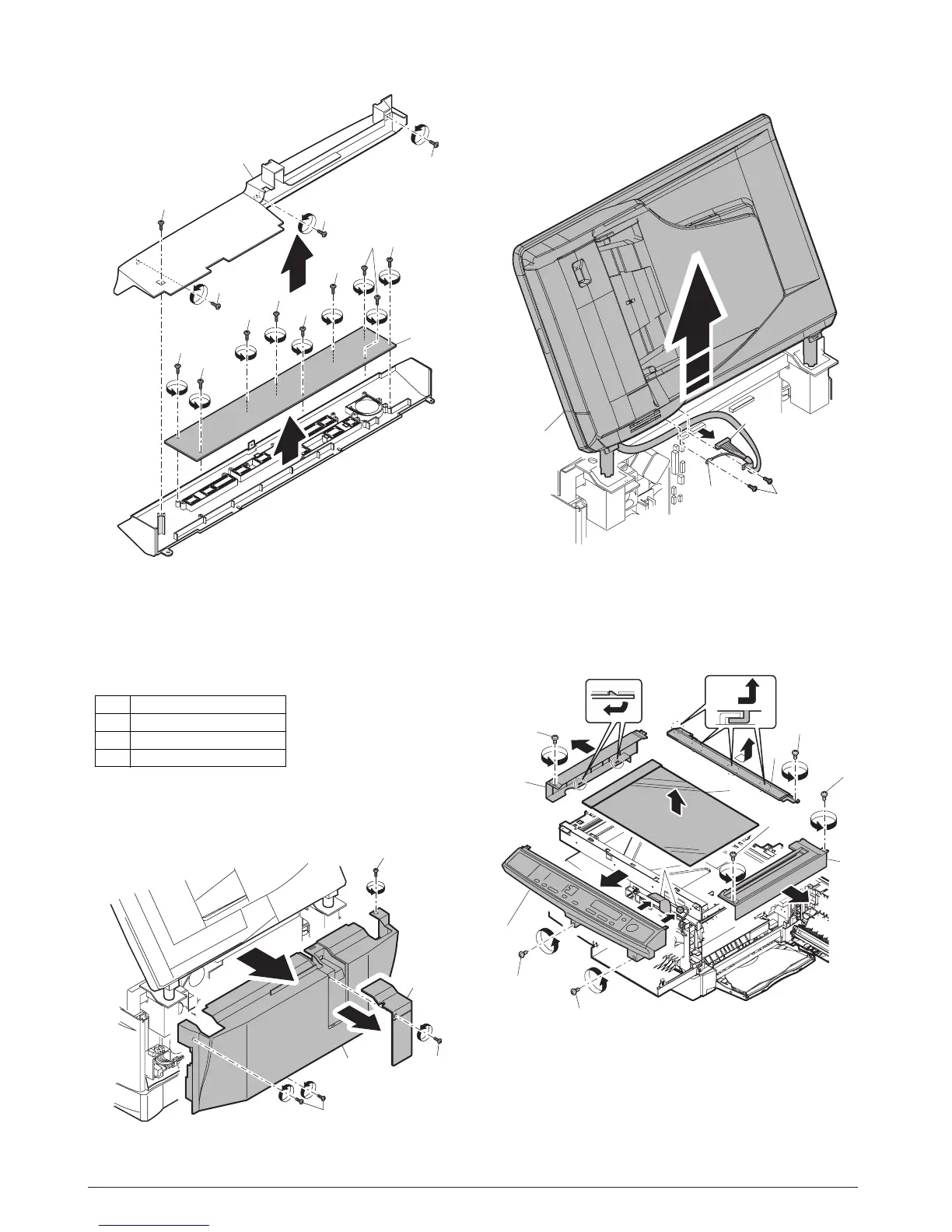

1) Remove four screws, and remove the rear cabinet and the rear
cabinet cover.
2) Remove two screws, and remove the earth wire.
3) Disconnect the connector.
4) Remove the SPF unit.
5) Remove five screws. Remove the operation unit, and discon-
nect the connector.
6) Remove the right cabinet.
7) Remove the left cabinet.
8) Remove the screw, and remove the rear cover.
9) Remove the table glass.
NO. Part name Ref.
1 Copy lamp unit
2Copy lamp
3 Lens unit
1)
1)
1)
1)
2)
3)
3)
3)
3)
3)
3)
3)
3)
4)
1)
1)
2)
2)
1)
1)
2)
3)
1)
2)
4)
5)
6)
7)
8)
1)
1)
1)
3)
1)
1)
Y109500-5 Service Manual 8-3

Olivetti d-Copia 200D Specifications

General

Print technology	Laser
Maximum resolution	600 x 600 DPI
Time to first page (black, normal)	9.6 s
Print speed (black, normal quality, A4/US Letter)	15 ppm
Printing colors	Black
Scanner type	Flatbed scanner
Grayscale levels	256
Copier resize	25 - 400 %
Maximum number of copies	99 copies
Copy speed (black, normal quality, A4)	20 cpm
Total input capacity	300 sheets
Internal memory	16 MB
Dimensions (WxDxH)	518 x 445 x 299 mm
All-in-one functions	Copy, Scan
Standard media sizes	A4
Supported media weight(s)	56/128 g/m²
Color all-in-one functions	scan, n
Compatible operating systems	Windows 98/Me/2000/XP/Vista
USB port	Yes
Standard interfaces	USB 2.0
Market positioning	Home & office

Weight and Dimensions

Weight	17800 g
