Olivetti d-Copia 200D Service Manual

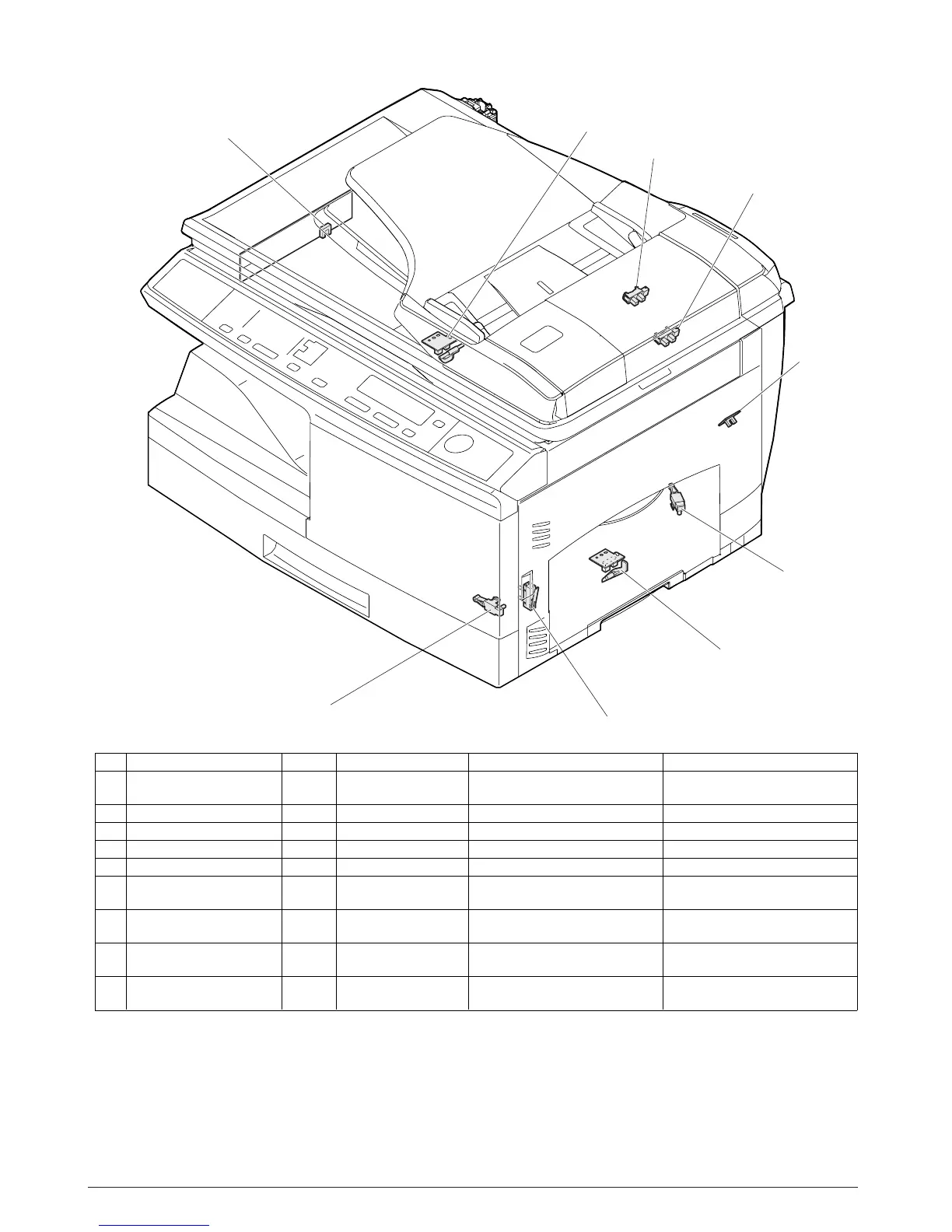

5. Sensors and switches
1
2
8
9
3
4
5
6
7
No. Name Signal Type Function Output
1 Scanner unit home
position sensor
MHPS Transmission sensor Scanner unit home position
detection
"H" at home position
2 POD sensor POD Transmission sensor Paper exit detection "H" at paper pass
3 PPD2 sensor PPD2 Transmission sensor Paper transport detection 2 "L" at paper pass
4 Cassette detection switch CED1 Micro-switch Cassette installation detection "H" at cassette insertion
5 PPD1 sensor PPD1 Transmission sensor Paper transport detection 1 "L" at paper pass
6 Door switch DSW Micro-switch Door open/close detection
(safety switch for 24V)
1 or 0V of 24V at door open
7 Drum reset switch DRST Micro-switch New drum detection switch Instantaneously "H" at insertion
of new drum
8 SPF sensor SPID/
SD SW
Transmission sensor Paper entry detection
Cover open/close detection
"L" at paper pass
9 SPPD sensor SPPD Transmission sensor Paper transport detection "L" at paper pass
Y109500-5 Service Manual 4-5
( d-Copia 201D only)
( d-Copia 201D only)

Olivetti d-Copia 200D Specifications

General

Print technology	Laser
Maximum resolution	600 x 600 DPI
Time to first page (black, normal)	9.6 s
Print speed (black, normal quality, A4/US Letter)	15 ppm
Printing colors	Black
Scanner type	Flatbed scanner
Grayscale levels	256
Copier resize	25 - 400 %
Maximum number of copies	99 copies
Copy speed (black, normal quality, A4)	20 cpm
Total input capacity	300 sheets
Internal memory	16 MB
Dimensions (WxDxH)	518 x 445 x 299 mm
All-in-one functions	Copy, Scan
Standard media sizes	A4
Supported media weight(s)	56/128 g/m²
Color all-in-one functions	scan, n
Compatible operating systems	Windows 98/Me/2000/XP/Vista
USB port	Yes
Standard interfaces	USB 2.0
Market positioning	Home & office

Weight and Dimensions

Weight	17800 g
