Olivetti d-Copia 200D Service Manual

24)

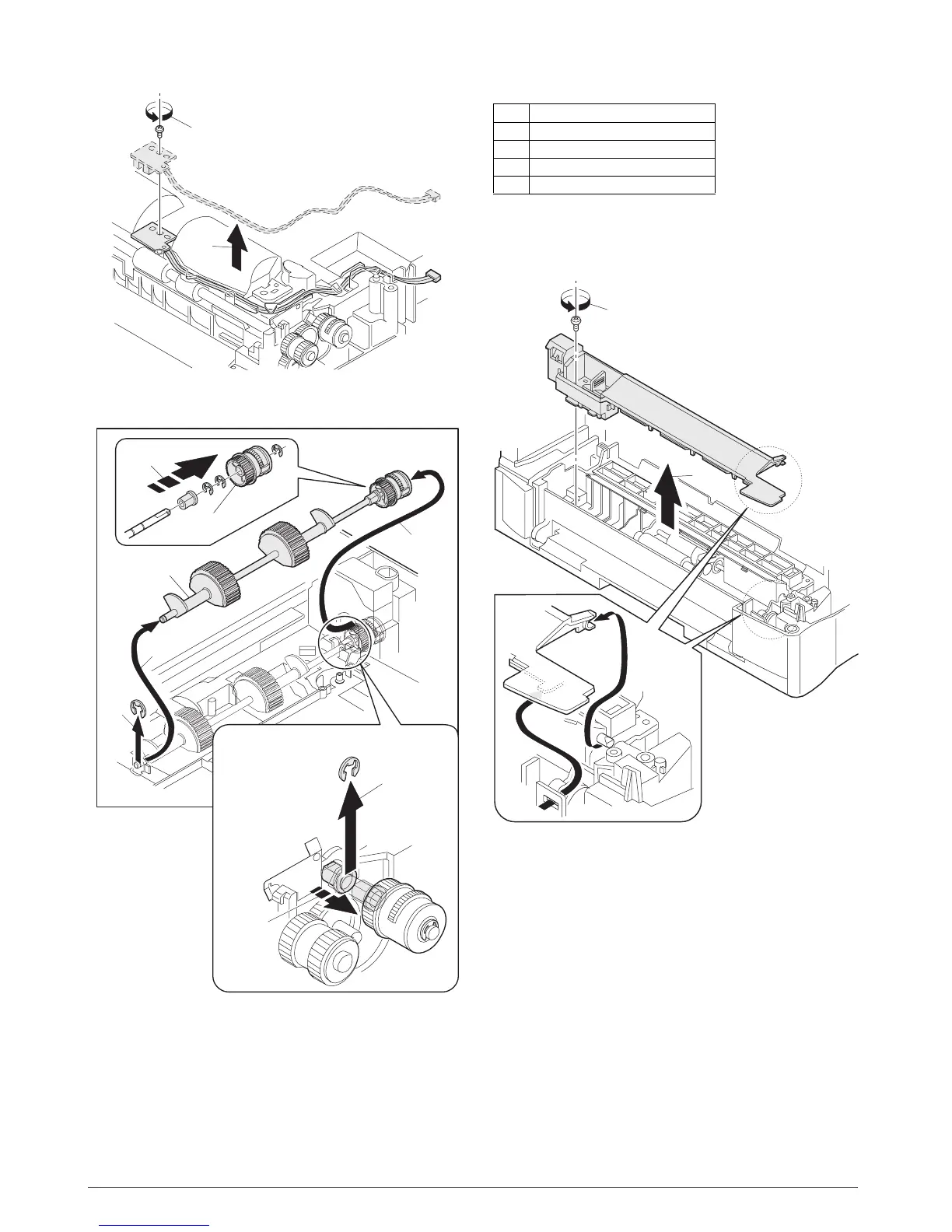

Remove the screw and the connector, and remove the PPD1
sensor PWB.
25) Remove two E-rings and remove the paper feed roller.
26) Remove three E-rings and remove the clutch unit.
C. Assembly procedure
For assembly, reverse the disassembly procedure.
6. Manual paper feed section
A. List
B. Disassembly procedure
Multi unit
1) Remove the screw and remove the multi upper cover.
1)
2)
4)
5)
1)
2)
3)
4)
Back
Front
Clutch unit
Paper feed
roller
No. Part name Ref.
1 Manual transport roller
2 Cassette detection switch
3 PPD1 sensor PWB
4 Side door detection unit
2)
1)
8-12 Service Manual Y109500-5

Olivetti d-Copia 200D Specifications

General

Print technology	Laser
Maximum resolution	600 x 600 DPI
Time to first page (black, normal)	9.6 s
Print speed (black, normal quality, A4/US Letter)	15 ppm
Printing colors	Black
Scanner type	Flatbed scanner
Grayscale levels	256
Copier resize	25 - 400 %
Maximum number of copies	99 copies
Copy speed (black, normal quality, A4)	20 cpm
Total input capacity	300 sheets
Internal memory	16 MB
Dimensions (WxDxH)	518 x 445 x 299 mm
All-in-one functions	Copy, Scan
Standard media sizes	A4
Supported media weight(s)	56/128 g/m²
Color all-in-one functions	scan, n
Compatible operating systems	Windows 98/Me/2000/XP/Vista
USB port	Yes
Standard interfaces	USB 2.0
Market positioning	Home & office

Weight and Dimensions

Weight	17800 g
