BX Stage
(2)
B.
REPAIR PROCEDURE

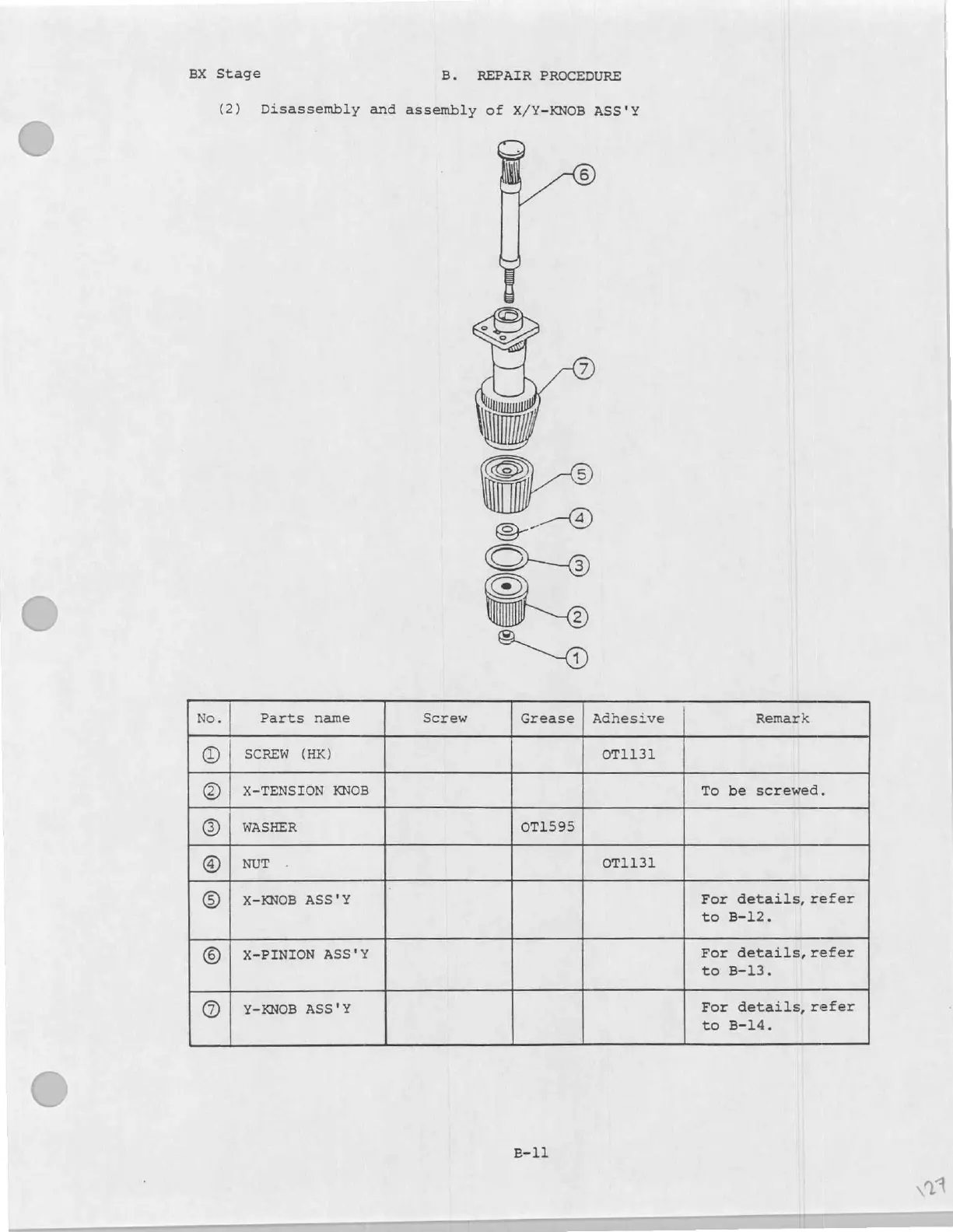

Disassembly and assembly of X/Y-KNOB ASS'Y
No Parts name Screw Grease | Adhesive Remark
@ | SCREW (HK) OT1131
@ | X-TENSION KNOB To be screwed.
© | WASHER OT1595
@
|
nur
OT1131
© | x-KNOB Ass'y For details, refer
το Έλα,
© | x-PINION ASS'Y For details, refer
το B-13.
©
|
Y-KNOB
ASS'Y
For
details,
refer
to B-14.
