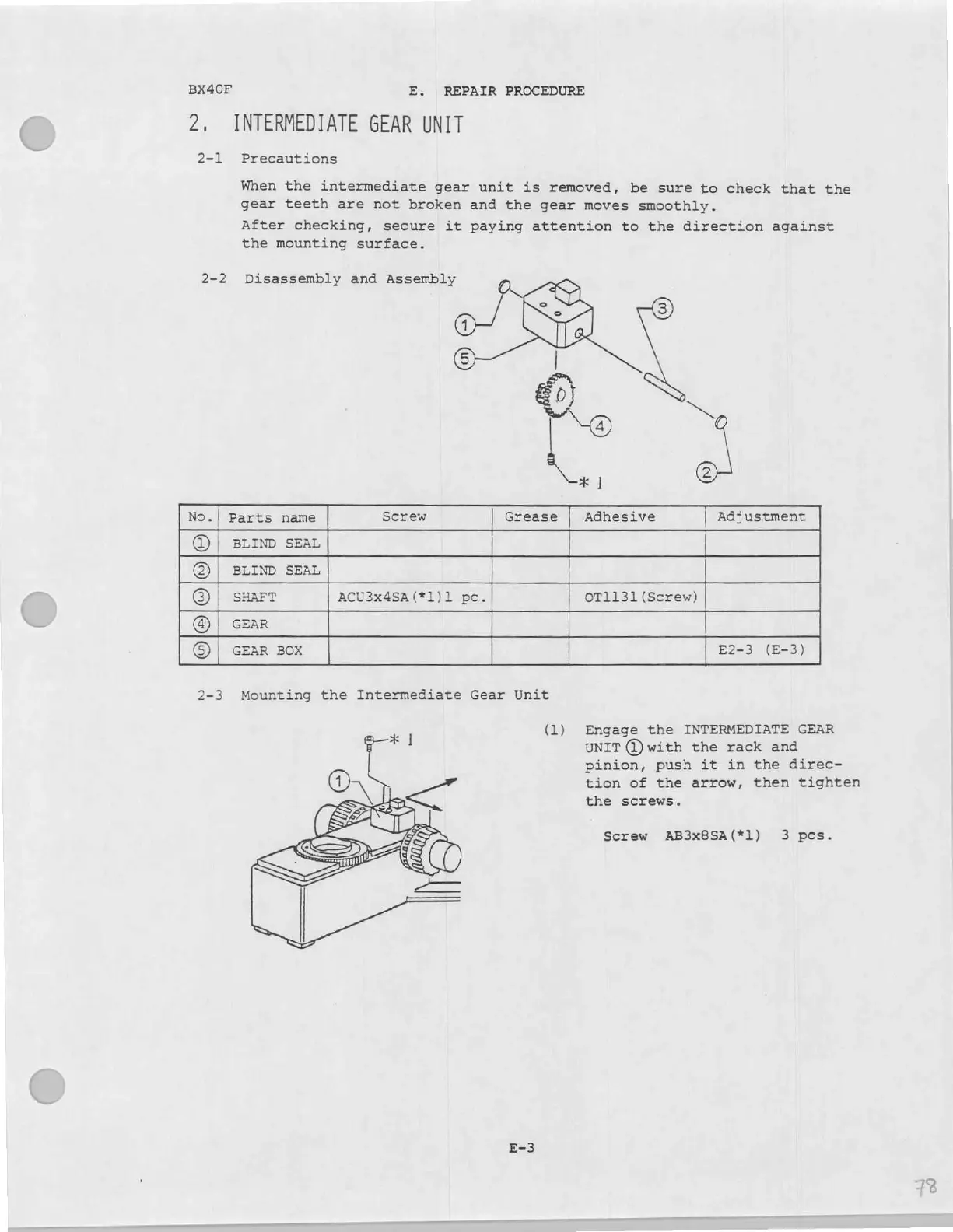

BX40F E. REPAIR PROCEDURE
Za
2-1
2-2 Disassembly and Assembly
INTERMEDIATE GEAR UNIT
Precautions
When
the
intermediate
gear
unit
is
removed,
be
sure
to
check
that
the
gear teeth are not broken and the gear moves smoothly.
After checking, secure it paying attention to the direction against
the mounting surface.
* 1
Parts name Screw | Grease Adhesive | Adjustment
BLIND SEAL |
BLIND SEAL
SHAFT ACU3X4SA (*1)1 pc. 0T1131 (Screw)
GEAR
ΘΙΦ/9/91Θ/
ὅ
GEAR BOX E2-3 (E-3)
2=3
Mounting the Intermediate Gear Unit
(1) Engage the INTERMEDIATE GEAR
UNIT @ with the rack and
pinion, push it in the direc-
tion of the arrow, then tighten
the screws.
xl
Screw AB3x8SA(*1) 3 pcs.
