BX40F DE JIGS AND TOOLS

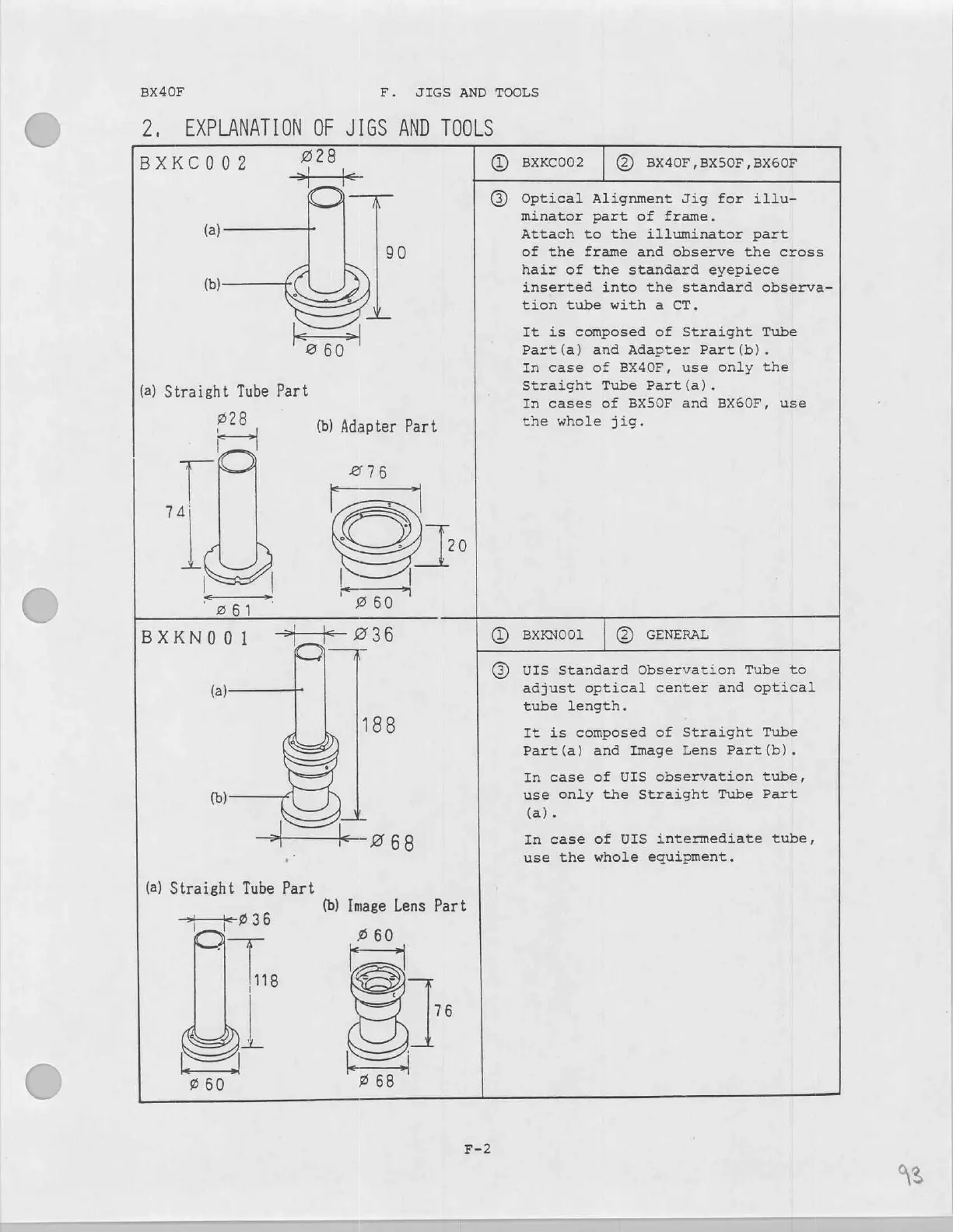

2, EXPLANATION OF JIGS AND TOOLS
"261
BXKC002 528
© BxKc002 | ©) BX40F,BX50F,BX60F
O Optical Alignment Jig for illu-
minator part of frame.
Attach to the illuminator part
of the frame and observe the cross
hair of the standard eyepiece
inserted
into the standard observa-
tion tube with a CT.
It is composed of Straight Tube
Part(a) and Adapter Part (b).
In case of BX40F, use only the
Straight Tube Part (a).
In cases of BX50F and BX60F, use
the whole jig.
ВХКМО 0 1
(а)
(a) Straight Tube Part
コー トー ギド 36
il
|
2 60
4-3 68
(b) Image Lens Part
260
©
Ge
76
@ BxkN001 | (© GENERAL
© UIS Standard Observation Tube to
adjust optical center and optical
tube length.
It is composed of Straight Tube
Part(a) and Image Lens Part(b).
In case of UIS observation tube,
use only the Straight Tube Part
(a).
In case of UIS intermediate tube,
use the whole equipment.
02
$
