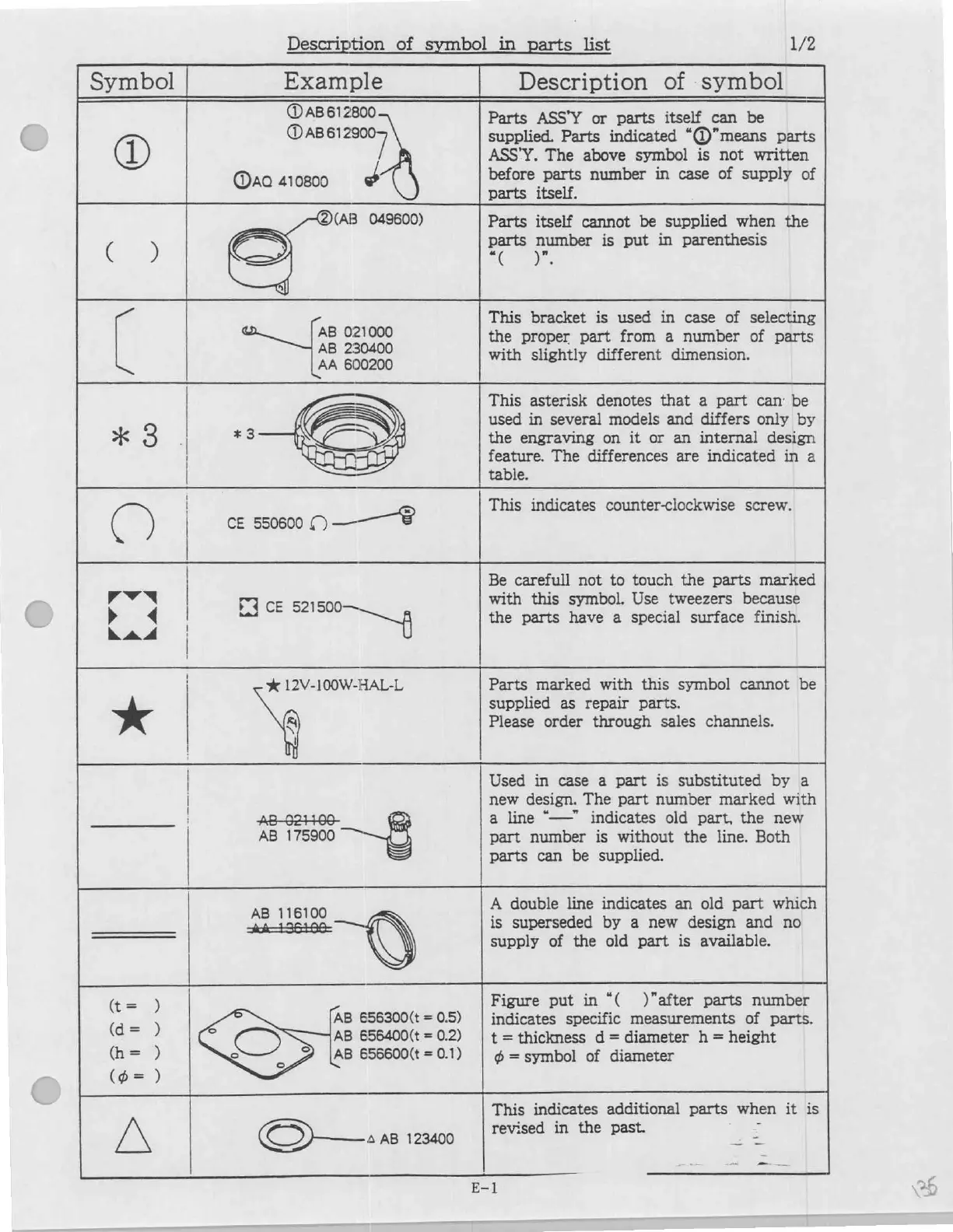

Description of symbol in parts list
1/2
Symbol
Example
Description of symbol
(Mao 410800 é
Parts ASS'Y or parts itself can be
supplied. Parts indicated “©”means parts
ASS'Y. The above symbol is not written
before parts number in case of supply of
parts itself.
(AB 049600) Parts itself cannot be supplied when the
( ) re ee is put in parenthesis
This bracket is used in case of selecting
AB 021000 the proper part from a number of parts
a Ὃ with slightly different dimension.
* 3
This asterisk denotes that a part can: be
used in several models and differs only by
the engraving on it or an internal design
feature. The differences are indicated in a
table.
This indicates counter-clockwise screw.
FYR
had |
FI CE cn
Be carefull not to touch the parts marked
with this symbol. Use tweezers because
the parts have a special surface finish.
X 12V-100W-HAL-L
Parts marked with this symbol cannot be
supplied as repair parts.
Please order through sales channels.
AB-024H-00-
AB 175900 —
Used in case a part is substituted by a
new design. The part number marked with
a line “— indicates old part, the new
part number is without the line. Both
parts can be supplied.
AB 116100
DS
A double line indicates an old part which
is superseded by a new design and no
supply of the old part is available.
AB 656300(t = 0.5)
AB 656400(t = 0.2)
AB 656600(t = 0.1)
Figure put in “( )”after parts number
indicates specific measurements of parts.
t = thickness d = diameter h = height
$ = symbol of diameter
AB 123400
This indicates additional parts when it is
revised in the past. я
