U-B130
D.
REPAIR
PROCEDURE

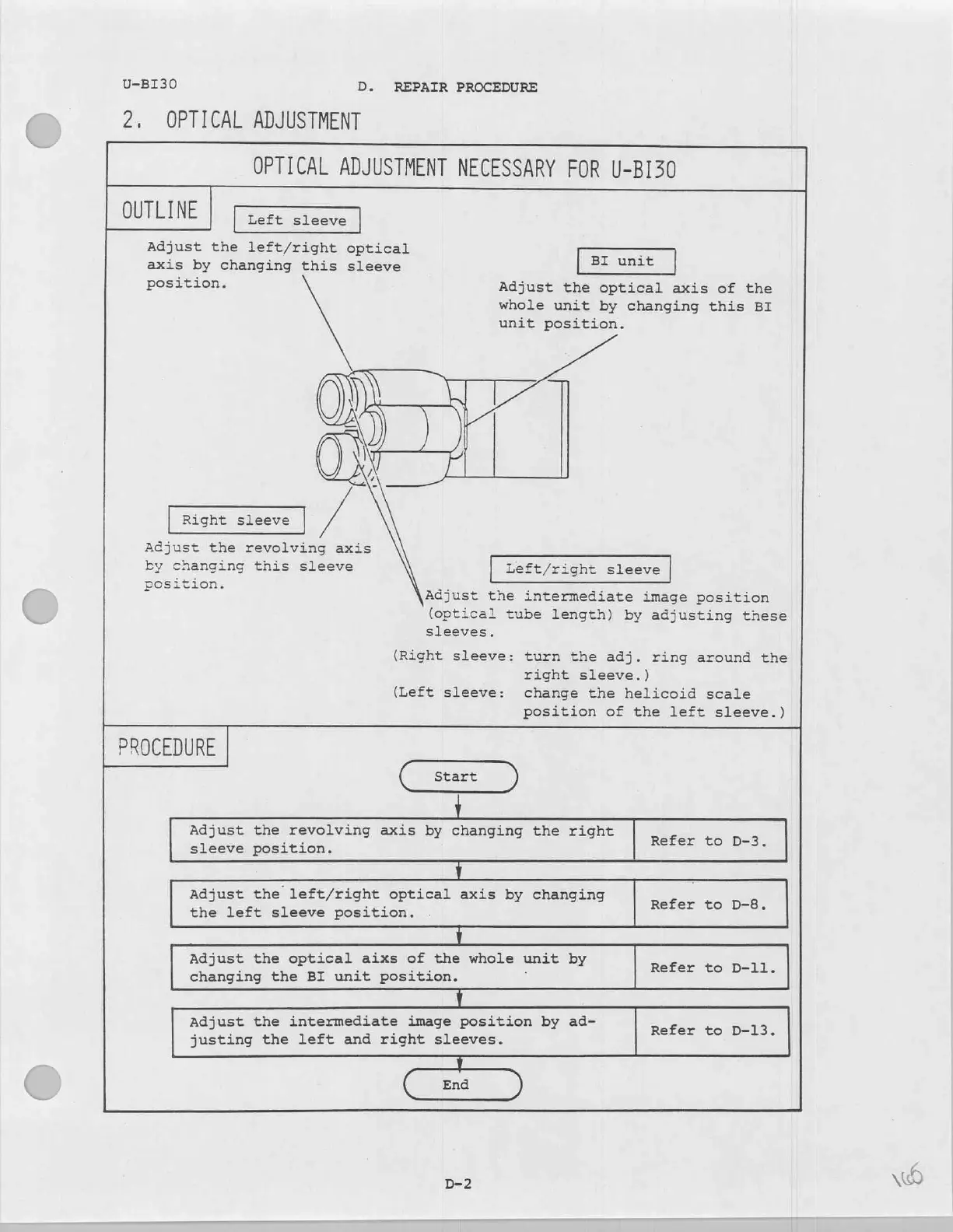

2, OPTICAL ADJUSTMENT
OPTICAL
ADJUSTMENT
NECESSARY
FOR
U-BI30
OUTLINE
|
ease
|
Adjust the left/right optical
axis
by
changing
this
sleeve
position.
Adjust
the
optical
axis
of
the
whole unit by changing this BI
unit position.
Adjust the revolving axis
by changing this sleeve
position.
一 一
Right sleeve
Left/right sleeve
Adjust
the
intermediate
position
(optical
tube
length)
by
adjusting
these
sleeves.
(Right sleeve: turn the adj. ring around the
right sleeve.)
(Left sleeve: change the helicoid scale
position of the left sleeve.)
PROCEDURE
( Start )
Adjust the revolving axis by changing the right
sleeve position.
Adjust the left/right optical axis by changing
Refer to D-3.
Refer to D-8.
the left sleeve position.
Adjust the optical aixs of the whole unit by
5 a u Refer to D-11.
changing the BI unit position.
j
Adjust the intermediate image position by ad-
E Refer to D-13.
justing the left and right sleeves.
