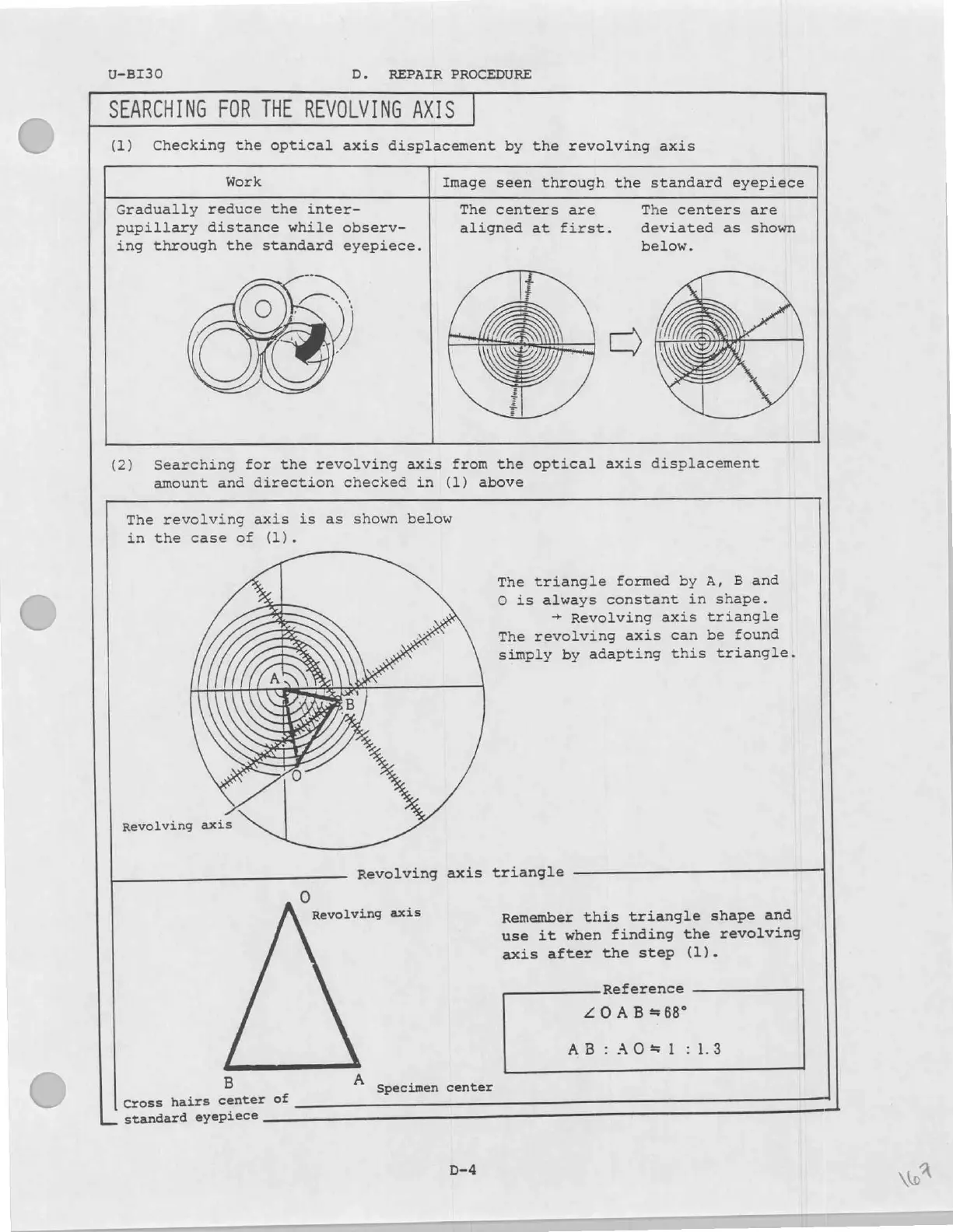

U-BI30 D. REPAIR PROCEDURE
SEARCHING FOR THE REVOLVING AXIS
(1)
Checking the optical axis displacement by the revolving axis
Work Image seen through the standard eyepiece
Gradually reduce the inter-
pupillary distance while observ-
ing through the standard eyepiece.
The centers are
aligned at first.
The centers are
deviated as shown
below.
(2) Searching for the revolving axis from the optical axis displacement
amount and direction checked in (1) above
The revolving axis is as shown below
in the case of (1).
The triangle formed by A, B and
O is always constant in shape.
+ Revolving axis triangle
The revolving axis can be found
simply by adapting this triangle.
Revolving axis
Revolving
axis
triangle
———————____—__—__
Revolving
axis
Remember
this
triangle
shape
and
use
it
when
finding
the
revolving
axis
after
the
step
(1).
Reference
ZOAB
68°
AB:A0%1:1.3
i
Specimen
center
Cross
hairs
center
of
| standard eyepiece
