U-B130
3, ASSEMBLING THE BI AND BIC UNITS
3-1 Secure the BI UNIT @ temporarily
P.
ASSEMBLY PROCEDURE

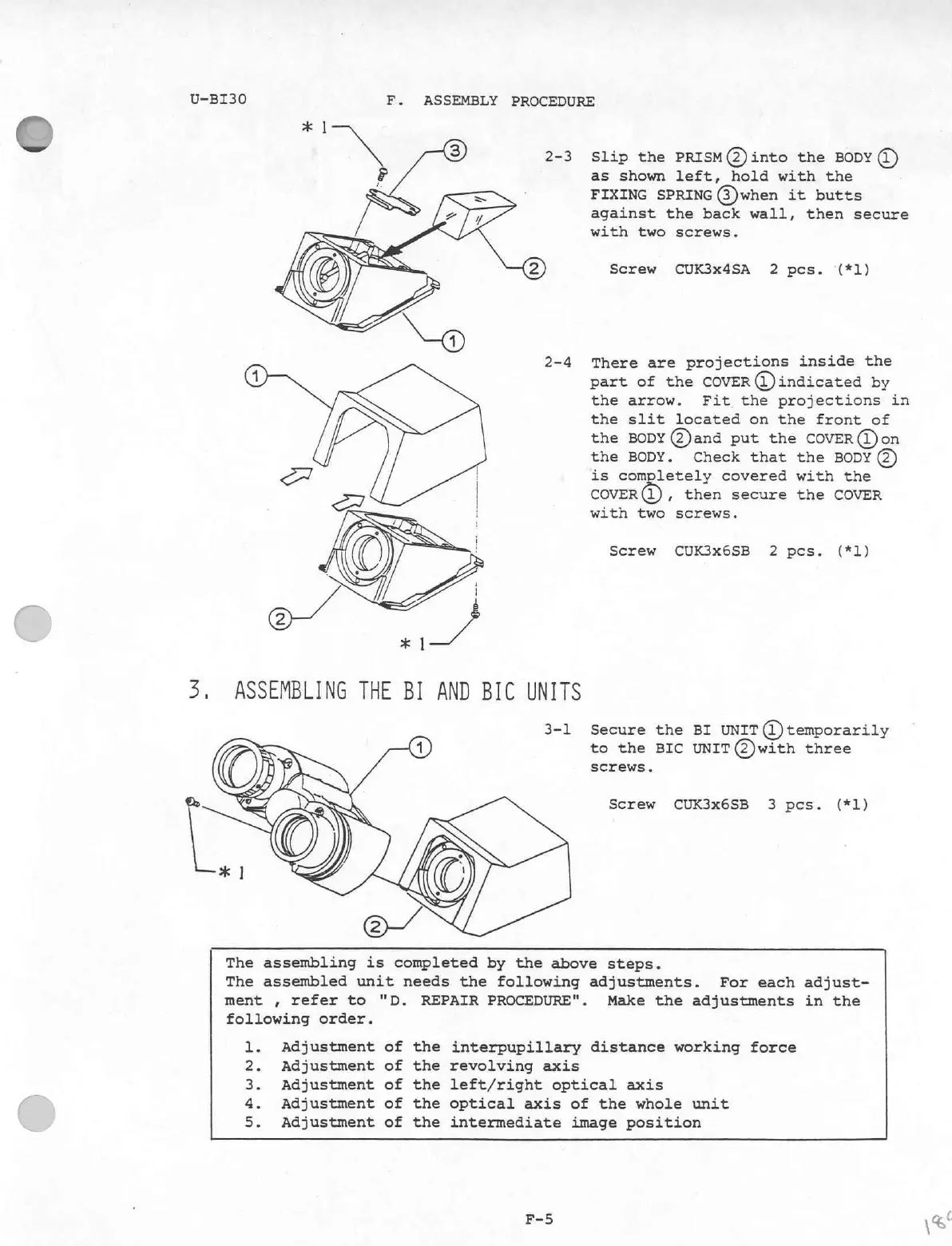

Slip the PRISM (2)into the BODY (1)
as shown left, hold with the
FIXING SPRING (3)when it butts
against the back wall, then secure
with two screws.
Screw CUK3x4SA 2 pcs. (31)
There are projections inside the
part of the COVER (1) indicated by
the arrow. Fit the projections in
the slit located on the front of
the BODY (2)and put the COVER (Don
the BODY. Check that the BODY (2)
is completely covered with the
covER() + then secure the COVER
with two screws.
Screw CUK3x6SB 2 pcs. (*1)
to the BIC UNIT (2)with three
screws.
Screw CUK3x6SB 3 pcs. (*1)
ment , refer to
following order.
1. Adjustment
2. Adjustment
3. Adjustment
4. Adjustment
5. Adjustment
of the
of the
of the
of the
of the
The assembling is completed by the above steps.
The assembled unit needs the following adjustments. For each adjust-
"D. REPAIR PROCEDURE".
interpupillary distance working force
revolving axis
left/right optical axis
optical axis of the whole unit
intermediate image position
Make the adjustments in the
