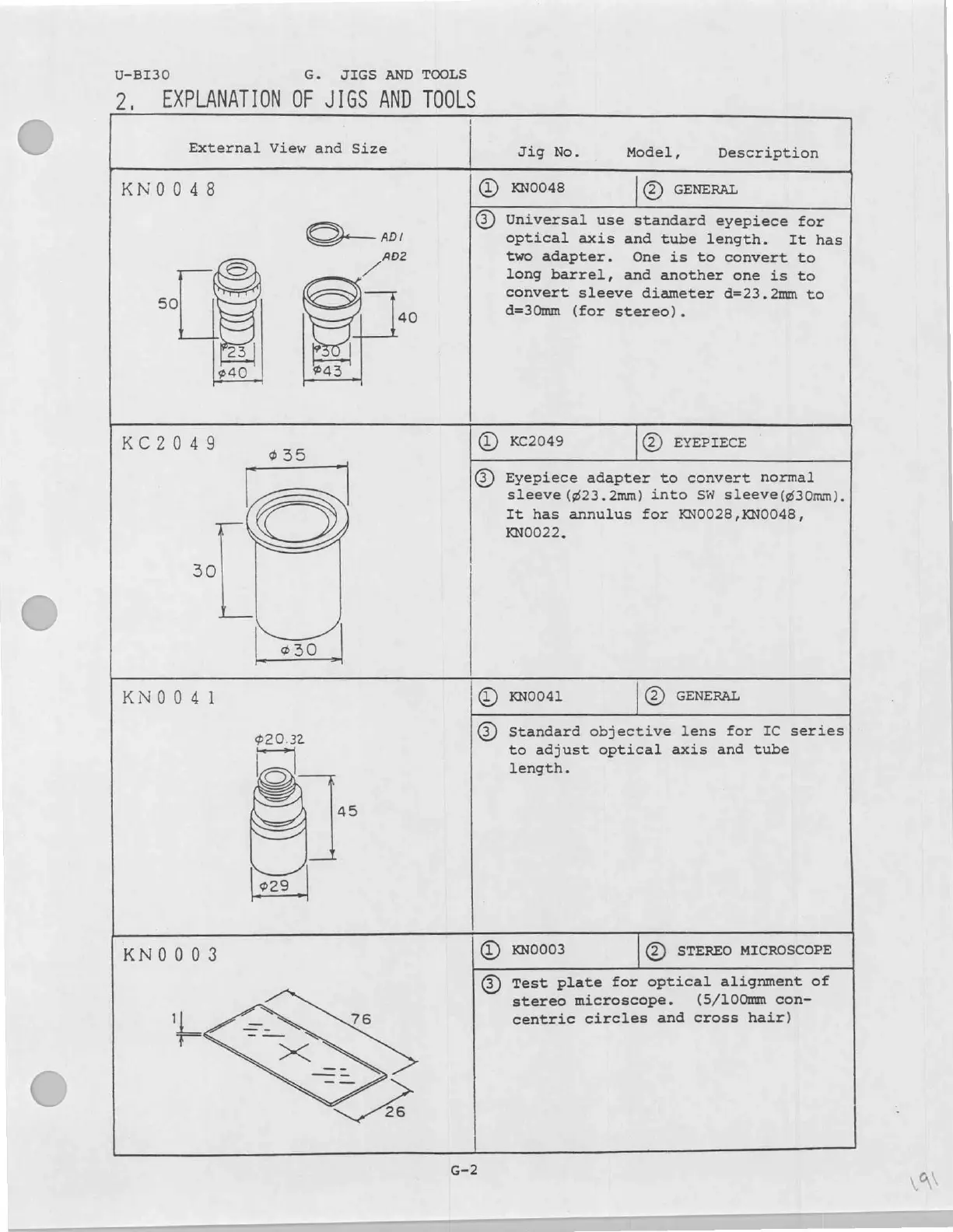

U-BI30 G. JIGS AND TOOLS
2, EXPLANATION OF JIGS AND TOOLS
External View and Size
Model, Description
Jig No.
KN0048
50 =
ZA 40
©
xnooas
|
@)
GENERAL
® Universal use standard eyepiece for
optical axis and tube length. It has
two adapter. One is to convert to
long barrel, and another one is to
convert sleeve diameter d=23.2mm to
d=30mm (for stereo).
KC2049
@ Kc2049 (©) EYEPIECE
© Eyepiece adapter to convert normal
sleeve (g23.2mm) into SW sleeve(g30mm).
It has annulus for KN0028,KN0048,
т. KN0022.
30
$30
KN0041
©
xw0041
|@
GENERAL
$20.32 ® Standard objective lens for IC series
[| to adjust optical axis and tube
© length.
NÝ
= 내
929
KN0003
KN0003
(©)
STEREO
MICROSCOPE
00
Test plate for optical alignment of
stereo microscope. (5/100mm con-
centric circles and cross hair)
>
