BXSOF

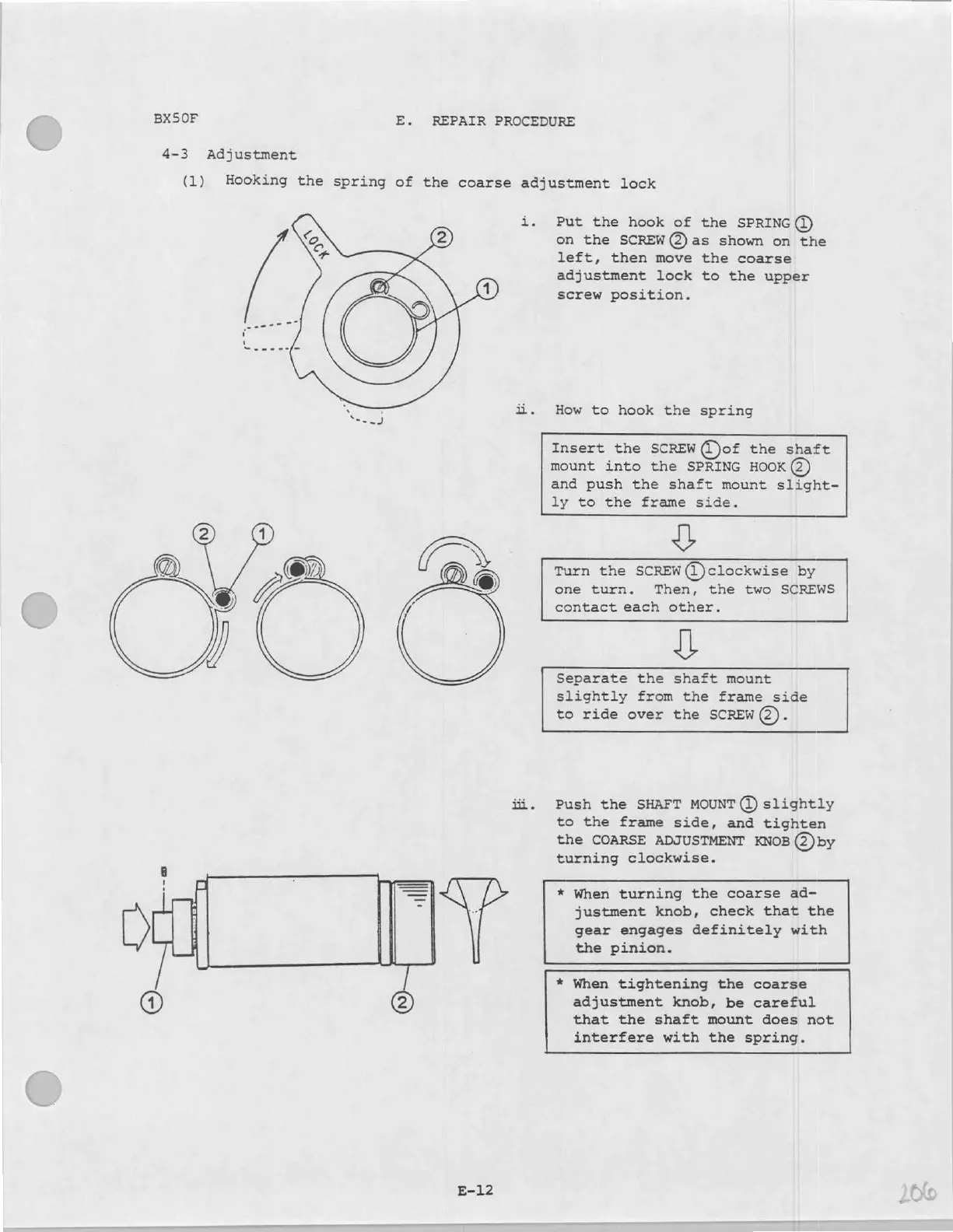

4-3 Adjustment
(1)
E. REPAIR PROCEDURE
Hooking
the
spring
of
the
coarse
adjustment
lock
Sa)
ii.
Put the hook of the SPRING (©)
on the SCREW(2)as shown on the
left, then move the coarse
adjustment lock to the upper
screw position.
How to hook the spring
Insert the SCREW (Dog the shaft
mount into the SPRING HOOK (2)
and push the shaft mount slight
ly to the frame side.
y
Turn the SCREW (1) clockwise by
one turn. Then, the two SCREWS
contact each other.
Y
Separate the shaft mount
slightly from the frame side
to ride over the SCREW (2).
Push the SHAFT MOUNT (1) slightly
to the frame side, and tighten
the COARSE ADJUSTMENT KNOB (2) by
turning clockwise.
E-12
* When turning the coarse ad-
justment knob, check that the
gear engages definitely with
the pinion.
When tightening the coarse
adjustment knob, be careful
that the shaft mount does not
interfere with the spring.
