BX50F

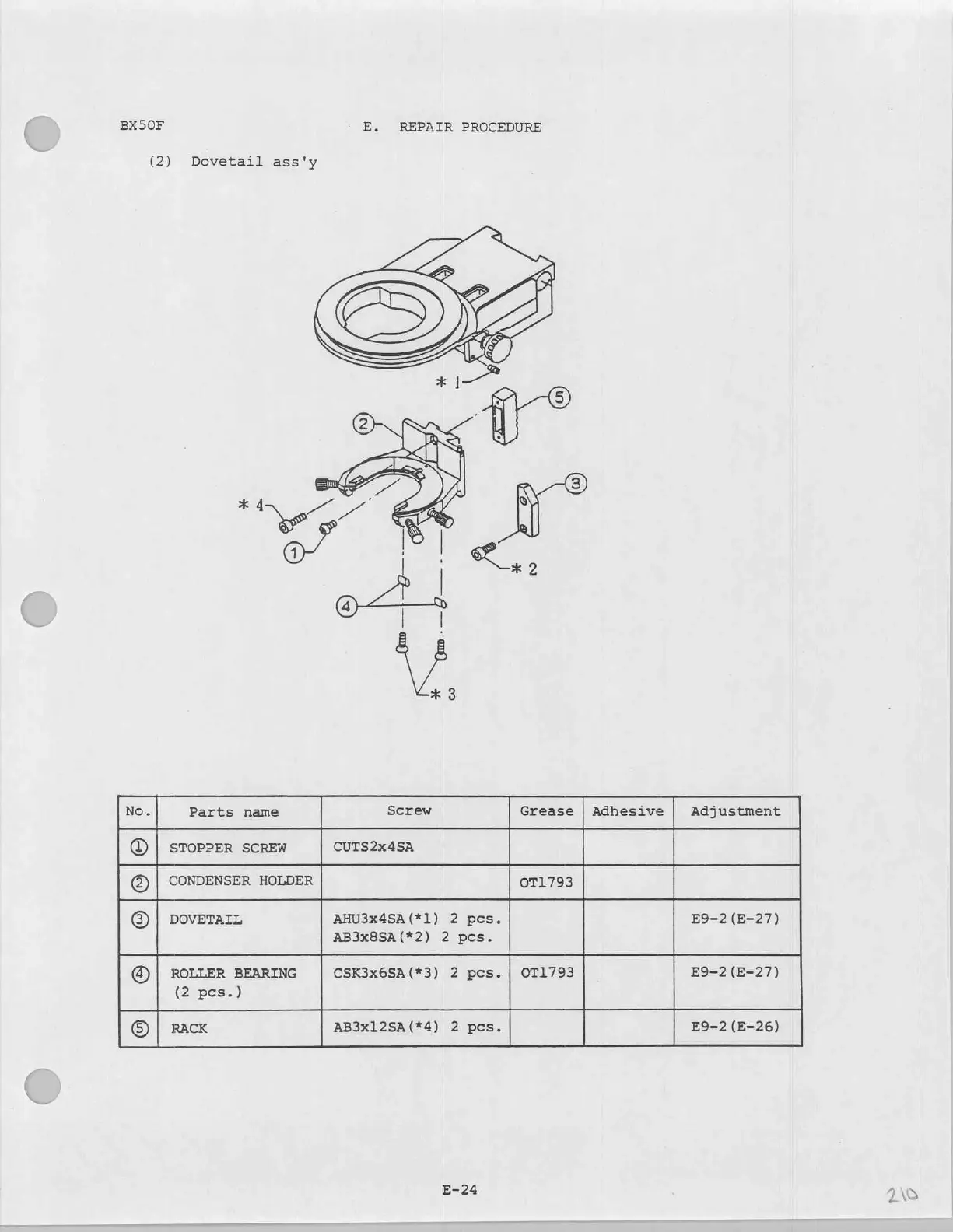

(2) Dovetail ass'y
E. REPAIR PROCEDURE
* 3
No. Parts name Screw Grease | Adhesive Adjustment
(Ď | STOPPER SCREW CUTS2x4SA
© | CONDENSER HOLDER 0T1793
© | DOVETAIL AHU3x4SA (*1) 2 pes. E9-2 (E-27)
AB3x8SA(*2) 2 pcs.
(© | ROLLER BEARING CSK3x6SA(*3) 2 pcs. | 0T1793 E9-2 (E-27)
(2 pcs.)
© | Rack AB3x12SA(*4) 2 pes. E9-2 (E-26)
E-24
