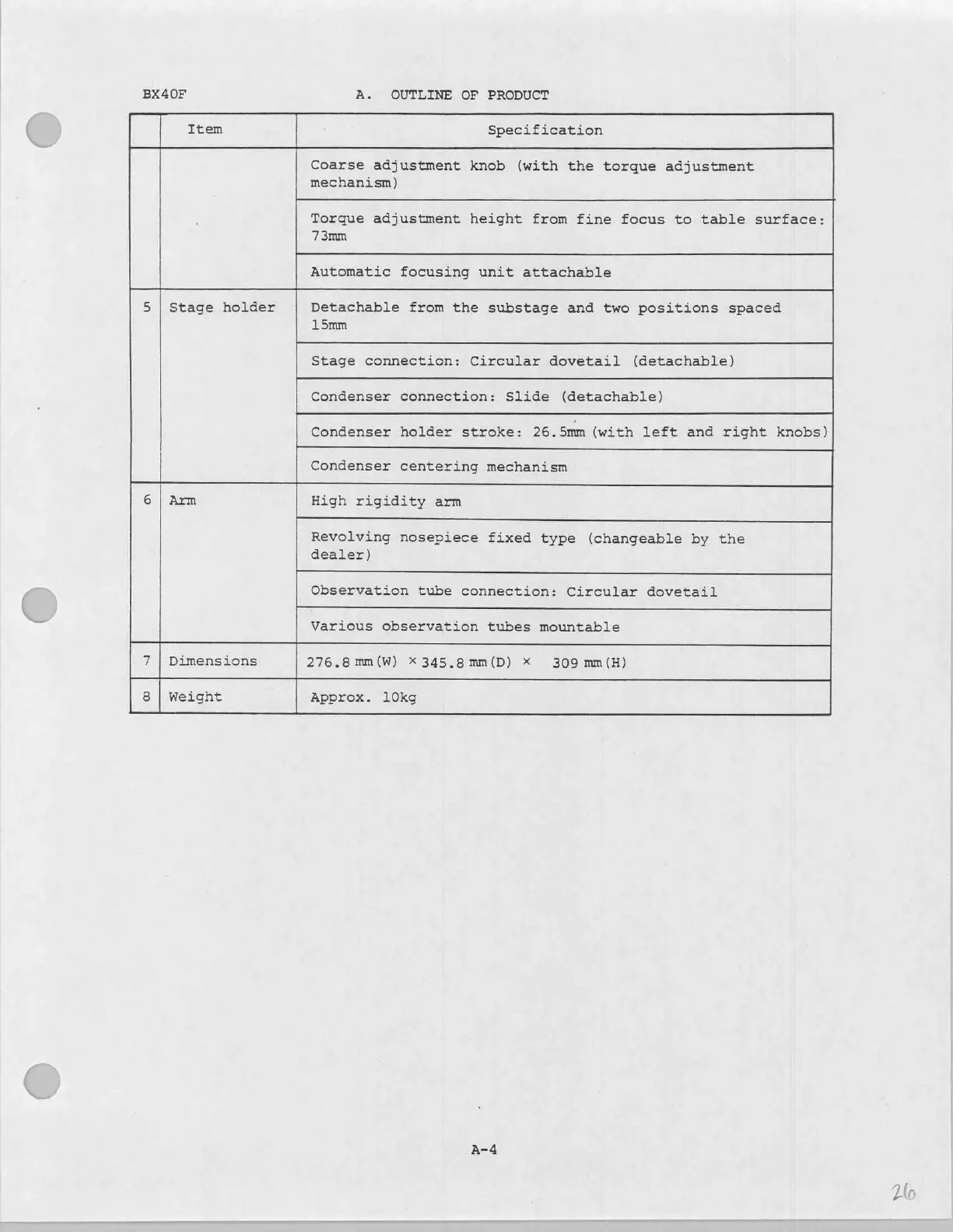

BX40F
A. OUTLINE OF PRODUCT
Item
Specification
Coarse adjustment knob (with the torque adjustment
mechanism)
Torque adjustment height from fine focus to table surface:
73mm
Automatic focusing unit attachable
5 | Stage holder Detachable from the substage and two positions spaced
15mm
Stage connection: Circular dovetail (detachable)
Condenser connection: Slide (detachable)
Condenser holder stroke: 26. 5mm (with left and right knobs)
Condenser centering mechanism
High rigidity arm
Revolving nosepiece fixed type (changeable by the
dealer)
Observation tube connection: Circular dovetail
Various observation tubes mountable
7 | Dimensions
276.8 пп (И) Х 345.8 пп (0) X 309 mm(H)
8 | Weight
Approx. 10kg
