BX40F

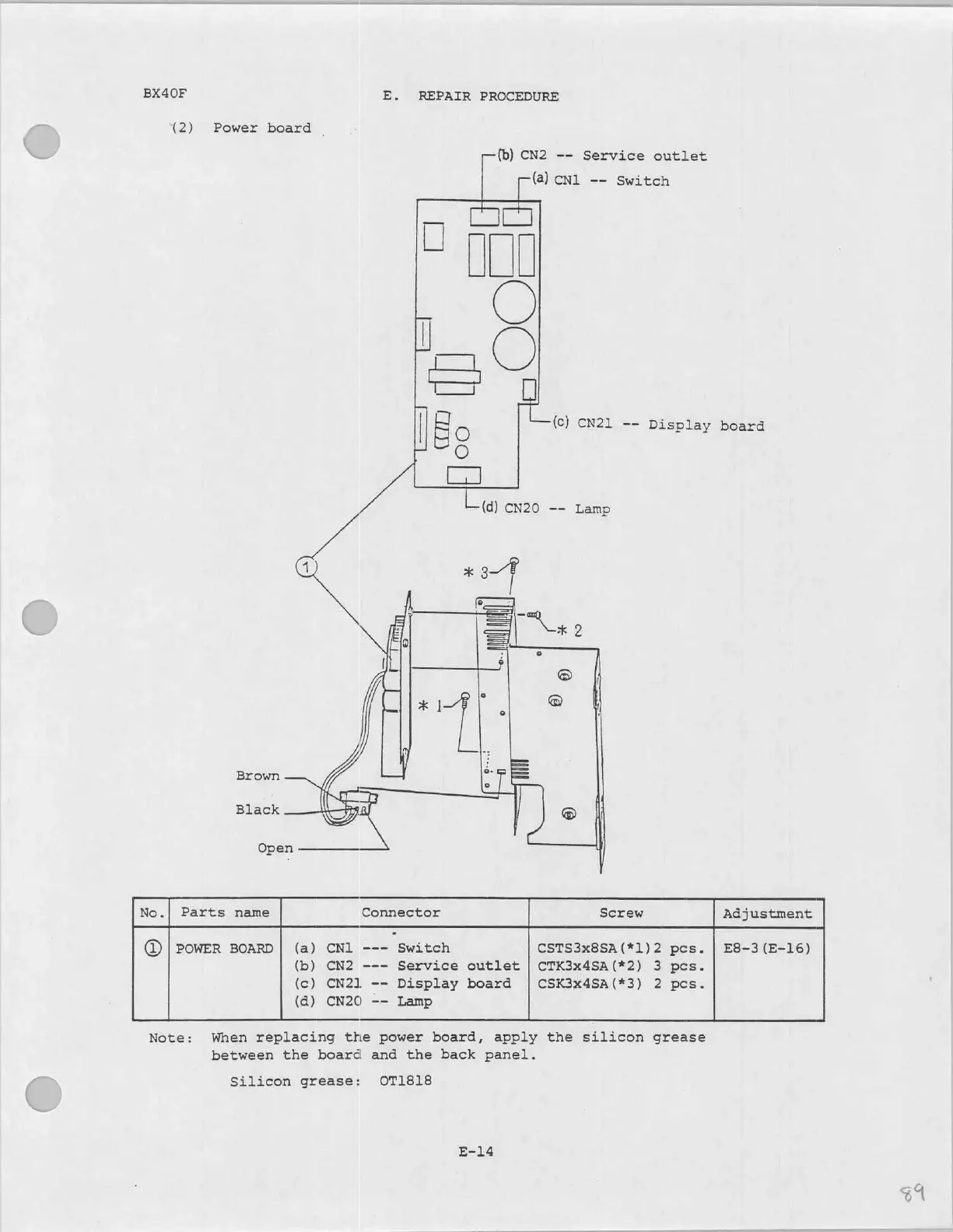

(2) Power board
Brown
Black
Open
E. REPAIR PROCEDURE
—(b) CN2 -- Service outlet
(a) CN1 -- Switch
No.| Parts name Connector Screw Adjustment
© POWER BOARD | (a) CN1 --- Switch CSTS3x8SA (*1)2 pcs. | E8-3(E-16)
(b) CN2 --- Service outlet | CTK3x4SA(*2) 3 pcs.
(c) CN21 -- Display board | CSK3x4SA(*3) 2 pcs.
(а) CN20 -- Lamp
Note: When replacing the power board, apply the silicon grease
between the board and the back panel.
Silicon grease:
OT1818
