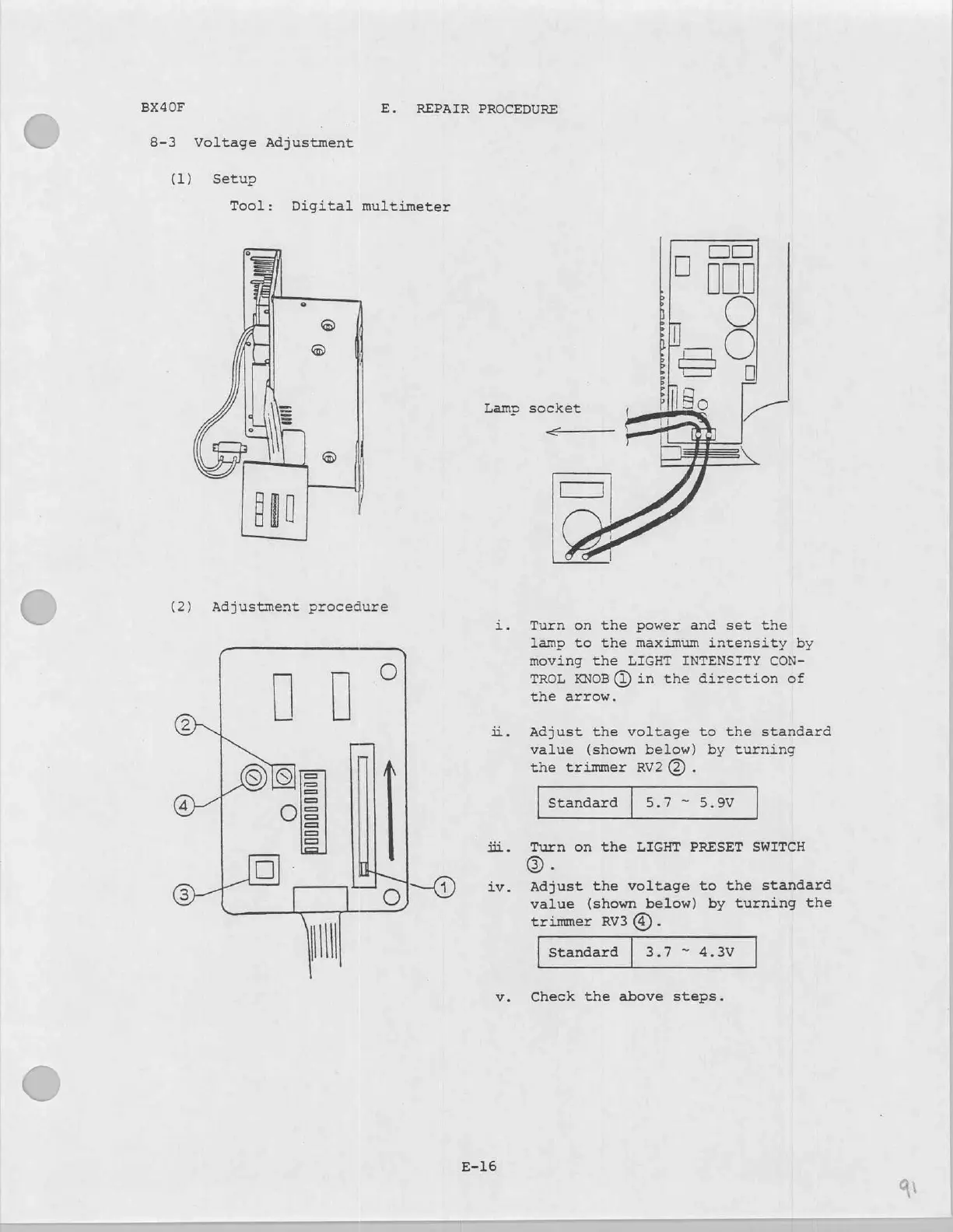

BX40F E. REPAIR PROCEDURE
8-3 Voltage Adjustment
(1) Setup
Tool: Digital multimeter
i. Turn on the power and set the
lamp to the maximum intensity by
moving the LIGHT INTENSITY CON-
TROL KNOB (D) in the direction of
the arrow.
ii. Adjust the voltage to the standard
value (shown below) by turning
the trimmer RV2Q).
Standard SETS
iii. Turn on the LIGHT PRESET SWITCH
iv. Adjust the voltage to the standard
value (shown below) by turning the
trimmer RV3 © E
Standard SEN
v. Check the above steps.
E-16
