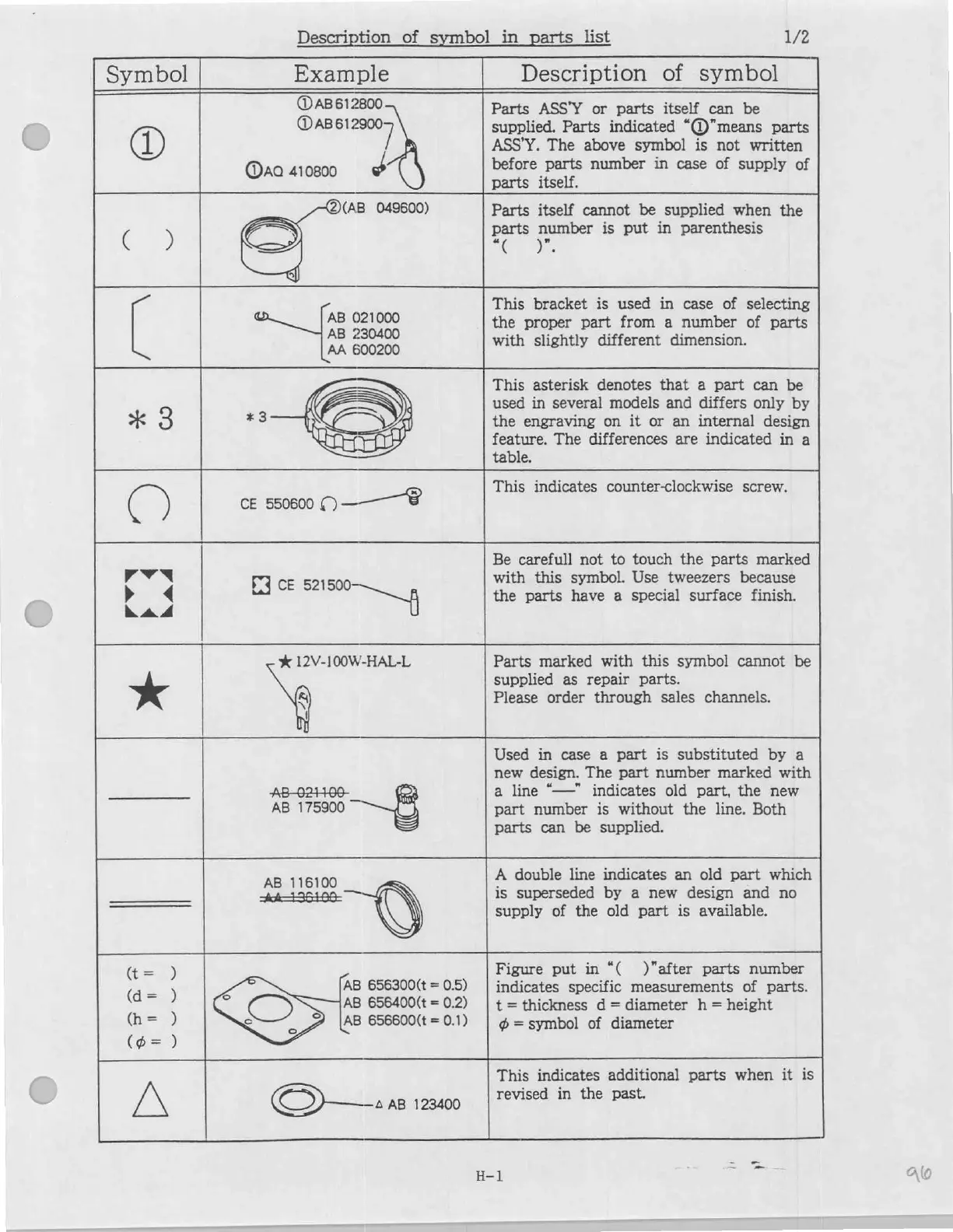

Description of symbol in parts list 1/2
Symbol Example Description of symbol
①AB612800 Parts ASS'Y or parts itself can be
Mu supplied. Parts indicated “@"means parts
① J ASS'Y. The above symbol is not written
before parts number in case of supply of
Ona 410800 parts itself.
@(AB 049600) Parts itself cannot be supplied when the
( ) parts number is put in parenthesis
GD
This bracket is used in case of selecting
AB 021000 the proper part from a number of parts
Pr оо with slightly different dimension.
This asterisk denotes that a part can be
used in several models and differs only by
the engraving on it or an internal design
feature. The differences are indicated in a
table.
This indicates counter-clockwise screw.
Be carefull not to touch the parts marked
アマ 개 with this symbol. Use tweezers because
> 1 E ce RI the parts have a special surface finish.
소
X 12V-100W-HAL-L Parts marked with this symbol cannot be
supplied as repair parts.
Please order through sales channels.
Used in case a part is substituted by a
new design. The part number marked with
AB-L2H00- a line “—" indicates old part, the new
AB 175900 part number is without the line. Both
parts can be supplied.
AB 116100 A double line indicates an old part which
43666 is superseded by a new design and no
supply of the old part is available.
(t= ) Figure put in “( )”after parts number
(a=)
AB
656300(t=0.5)
|
indicates
specific
measurements
of
parts.
AB 656400(t = 0.2) | t= thickness d= diameter h = height
5) AB 656600(t=0.1) | $=symbol of diameter
(d=)
This indicates additional parts when it is
/\ Е. АВ 123400 | Tevised in the past.
