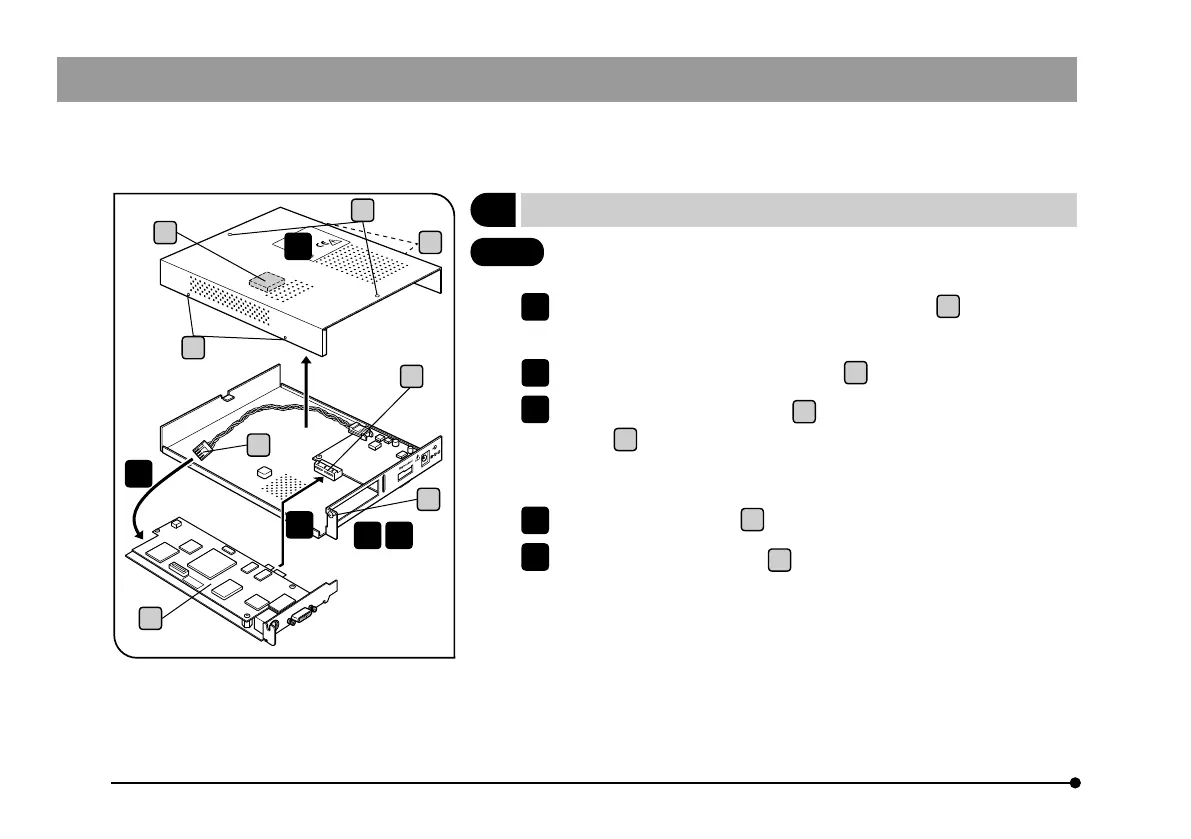

Installing the PCIe Interface Board
Be careful not to cut your fingers at sharp parts within the PCIe
extension box.
Using a Phillips screwdriver, remove the six screws
a
of the top cover
of the extension box and then remove the cover.
Remove the bracket clamping screw
b
.
Insert the PCIe interface board
c
with low-profile bracket to the con-
nector
d
of the PCIe extension box.
} For installing the low-profile bracket, refer to page 27.
Connect the connector
e
to the PCIe interface board.
Attach the clamping screw
b
removed above.
