Installing the PCIe Interface Board
• Before installing the PCIe interface board in the PC, be sure to
read the instruction manual for the PC in order not to damage
it.
• Be sure to turn off the PC and peripherals and unplug their
power cords before installing the PCIe interface board.
•
T
o avoid damage due to static electricity, touch an unpainted
metallic surface of the PC with your hand to discharge the
static electricity before installation.
• The SATA-to-HDD (4-pin) power conversion adapter is sensitive
to excessive force. Please handle it with care.
• Be careful not to cut your fingers at sharp parts within the PC.

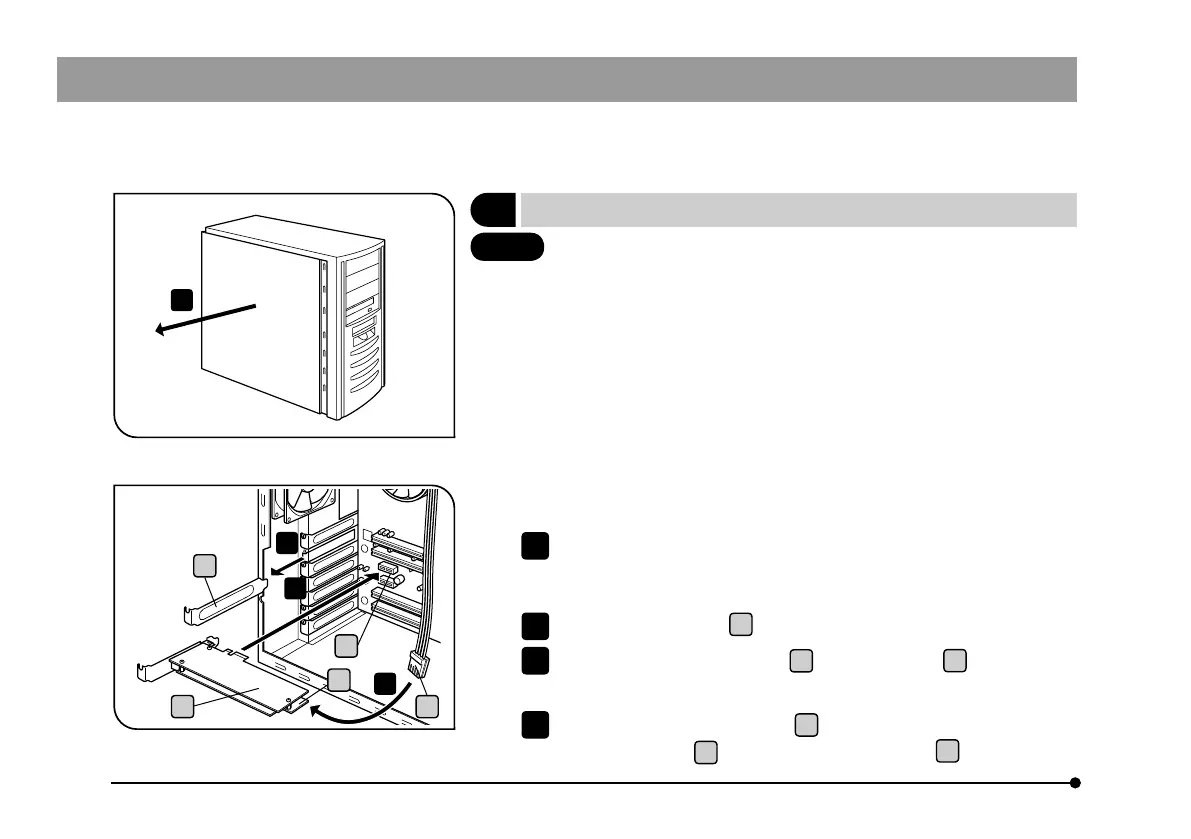

Open the housing of the desktop PC.
} F
or removing the cover, refer to the Instruction Manual of the PC.
Remove the slot cover
a
of an unused PCIe slot on the motherboard.
Insert the PCIe interface board
b
to the connector
c
of the desktop
PC carefully without touching the board surface directly by hand.
Connect the FDD power cable
d
from the PC’s power supply to the
power connector
e
on the PCIe interface board
b
.
