Olympus E-M1 MARK II - Names of Parts

10 EN

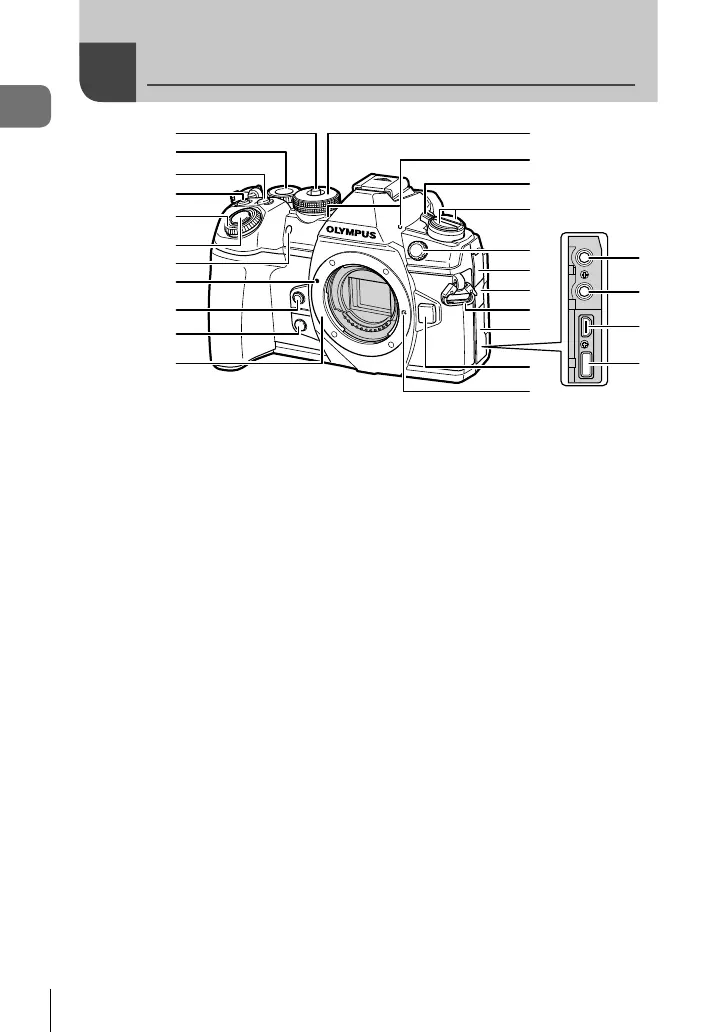

Names of parts
Names of parts
1
2
3
4
5
6
7
8
9
0
a
b
c
d
o
p
n
e
f
i
j
g
h
l
m
k
1 Mode dial lock .................................P. 24
2 Rear dial* (o)
.......................P. 26 – 29, 42, 70, 78, 128
3 Fn2 button......................................P. 70
4 R (Movie)/H button ..............P. 36/P. 82
5 Front dial* (r)
.........................P. 26 – 29, 39, 42, 70, 78
6 Shutter button .................................P. 25
7 Self-timer lamp/AF illuminator
.......................................P. 46, 54/P. 112
8 Lens attachment mark ....................P. 16
9 Y (One-touch white balance) button
........................................................P. 67
0 Z (Preview) button .........................P. 67
a Mount (Remove the body cap before
attaching the lens.)
b Mode dial ........................................P. 24
c Stereo microphone .........P. 83, 103, 107
d ON/OFF lever ................................P. 18
e v button
AFm (AF/Metering mode) button
...................................................P. 43, 45
jYHDR (Sequential shooting/
Self-timer/HDR) button .......P. 46, 49, 91
f External fl ash terminal ..................P. 154
g Microphone jack cover
h Headphone jack cover
i Strap eyelet.....................................P. 12
j Connector cover
k Lens release button ........................P. 17
l Lens lock pin
m Microphone jack (A commercially
available microphone can be connected.
ø3.5 stereo mini plug) ...................P. 104
n Headphone jack (A commercially
available headphones can be
connected. ø3.5 stereo pin jack)
o HDMI connector (type D) ..............P. 130
p USB connector (type C)
......................................P. 104, 139, 142
* In this manual, the r and o icons represent operations performed using the front dial
and rear dial.
