Olympus IPLEX IV9635RX - 2.3 LCD Monitor Nomenclature

12
2 Nomenclature

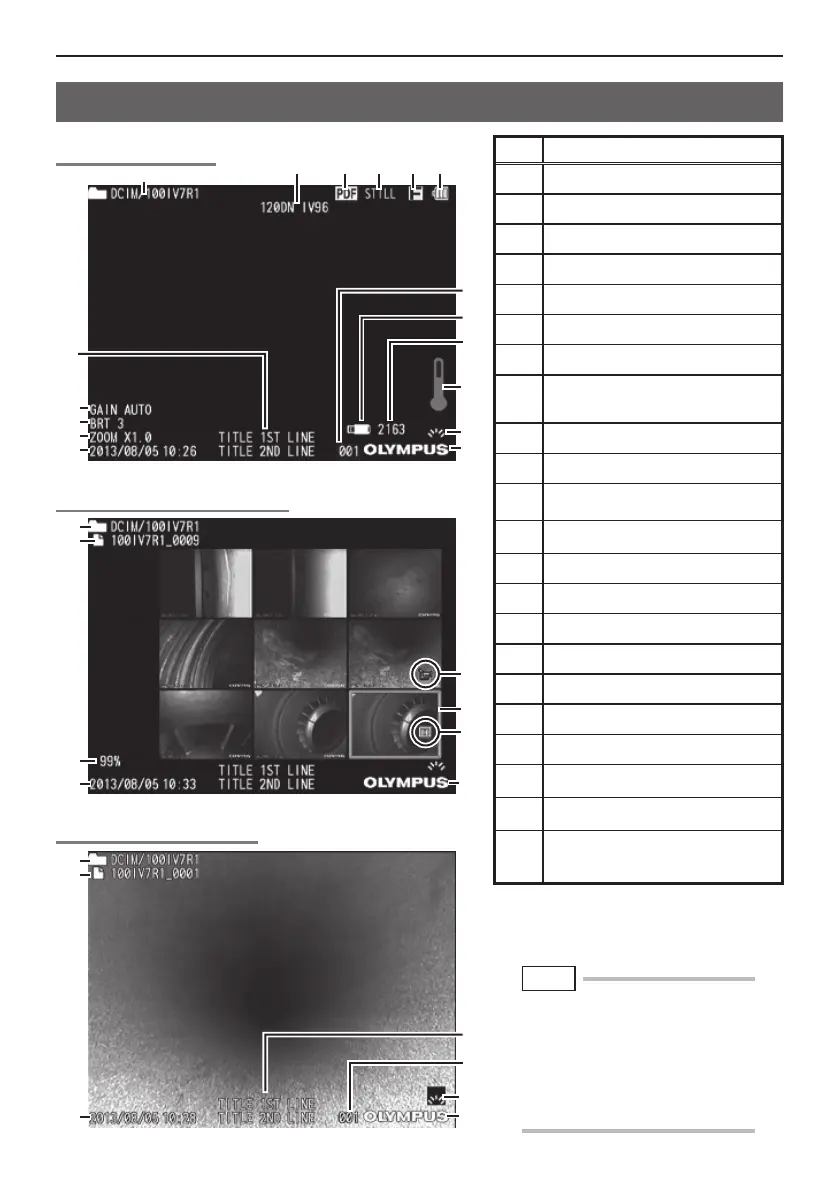

2.3 LCD monitor nomenclature
No. Name
1 Battery indicator
2 Freeze indicator
3 Recording/playback indicator
4 Gain mode (RX only)
5 Brightness level
6 Zoom level
7 Date/Time
8
Number of images that can be
recorded
9 USB flash drive indicator
10 Title
11 Sequence number
12 Logo
13 Light indicator
14
Temperature indicator (RX only)
15 Movie image indicator
16 Thumbnail selection frame
17 Folder name
18 File name
19 PDF indicator
(RX only)
20 Remaining media capacity
21 Adapter name (RX only)
22
Measurement indicator (RX (ste-
reo measurement function) only)
● The displayed title is the title that
was entered on the Live screen the
last time the system was used.
● Should you notice any dirt, stains,
or other abnormalities on the LCD
monitor, see"7 Storage and mainte-
nance" (P. 68).
NOTE
Live screen
Thumbnail screen
Retrieve screen
21 19 3 2 1
11
9
8
14
13
12
10
4
5
6
7
17
15
16
12
17
18
20
7
10
11
13
12
17
18
7
22
