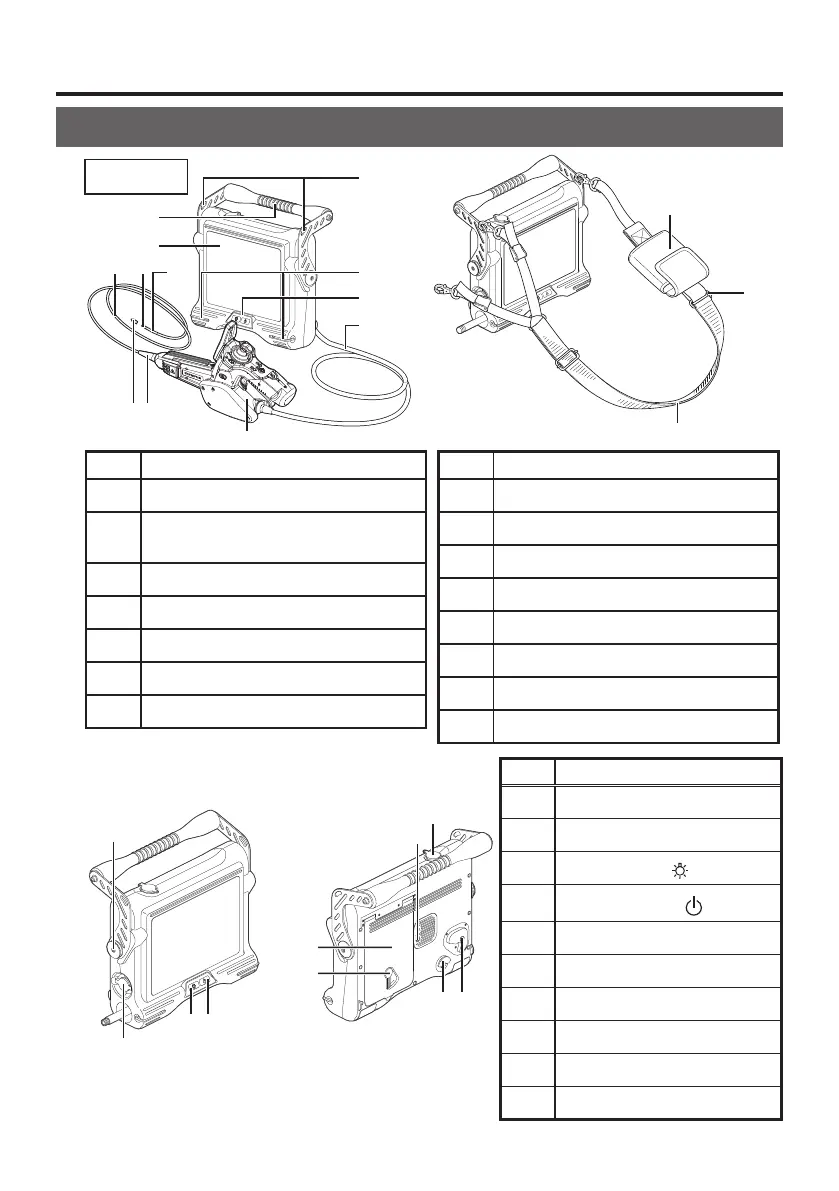

2 Nomenclature
2.1 Main unit/control unit nomenclature
No. Name
1 Handle
2
LCD monitor
(covered by LCD protective sheet)
3 Insertion tube (or scope)
4 Angulation section
5 Distal end
6 Tip cap
7 Bend stopper
No. Name
8 Control unit
9 Strap holder
10 Strap bracket
11 Front panel
12 Universal cable
13 Optical adapter case holder
14 Ring
15 Shoulder strap
No. Name
16 Control unit holder
17 AC adapter connector cap
18 LIGHT button (
)
19 POWER button (
)
20 Tripod screw hole
21 Battery cover
22 Lock release lever
23 Scope handset holder
24 Lock release button
25 Video connector cap
2
3
5
67
8
9
10
11
12
13
14
15
4
1
Main unit
16
17
18 19
20
21
22
23 24
25
