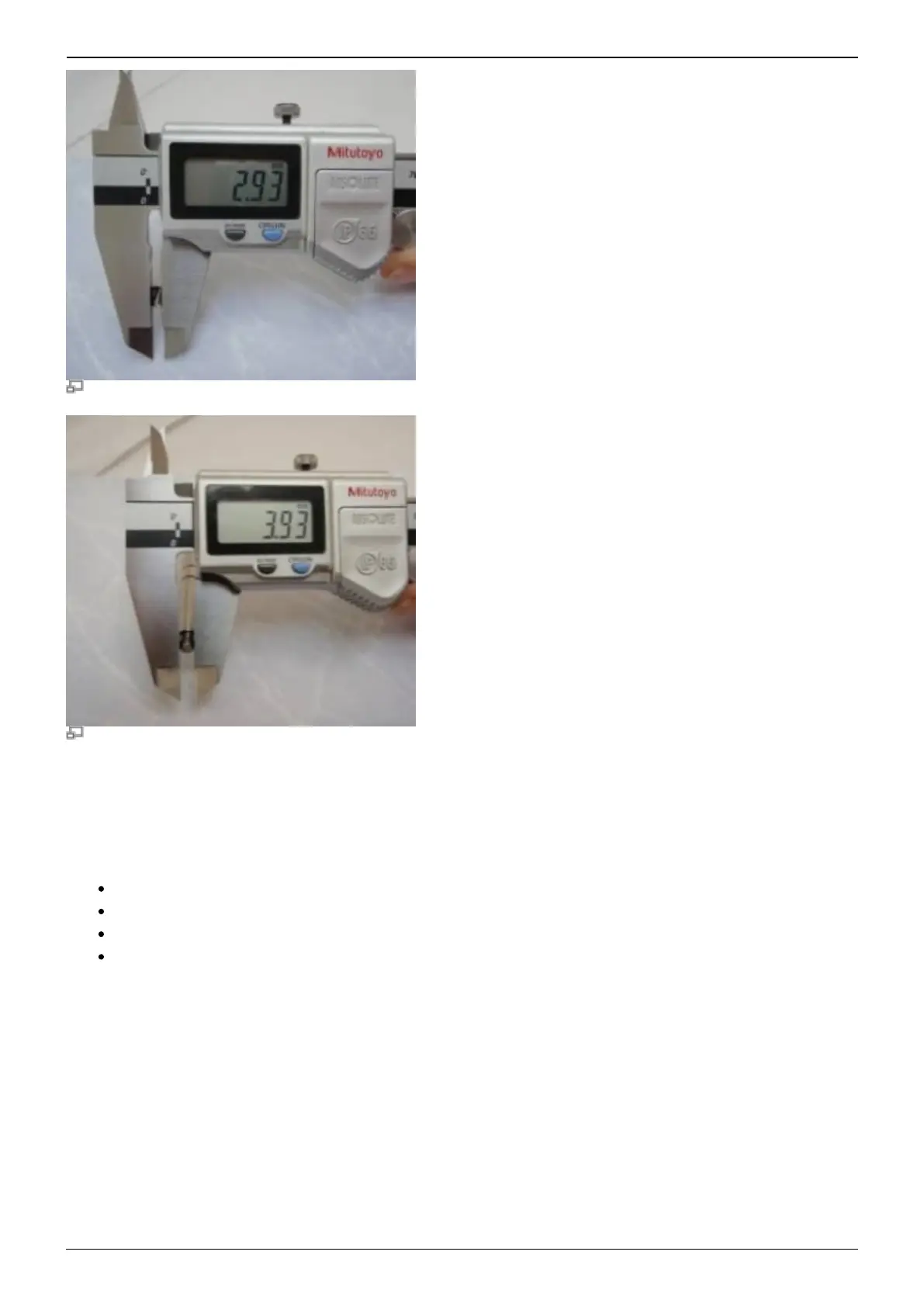

Threaded diameter of ASI’s 3 mm drive shaft
Threaded diameter of ASI’s 4 mm drive shaft
The following tools are required for this procedure:
1/16” Allen wrench (provided)
5/64” Allen wrench (provided)
3/32” Allen wrench (provided)
7/64” Allen wrench (provided)
The procedure has three parts:
Removing the left fine focus knob1.
Installing flexible coupling2.
Installing and aligning the motor drive assembly and baseplate.3.
Installing the cover.4.
Note: the terms ‘left’ and ‘right’ refer to the sides of the microscope as viewed from the
front of the microscope.
