Olympus oep-4 - Connection of the EVIS Video System Center (CV-240 or CV-140)

Installation and Connection
2
2.2 Connection of the EVIS Video System Center (CV-240 or CV-140)
16
2.2 Connection of the EVIS Video System Center
(CV-240 or CV-140)

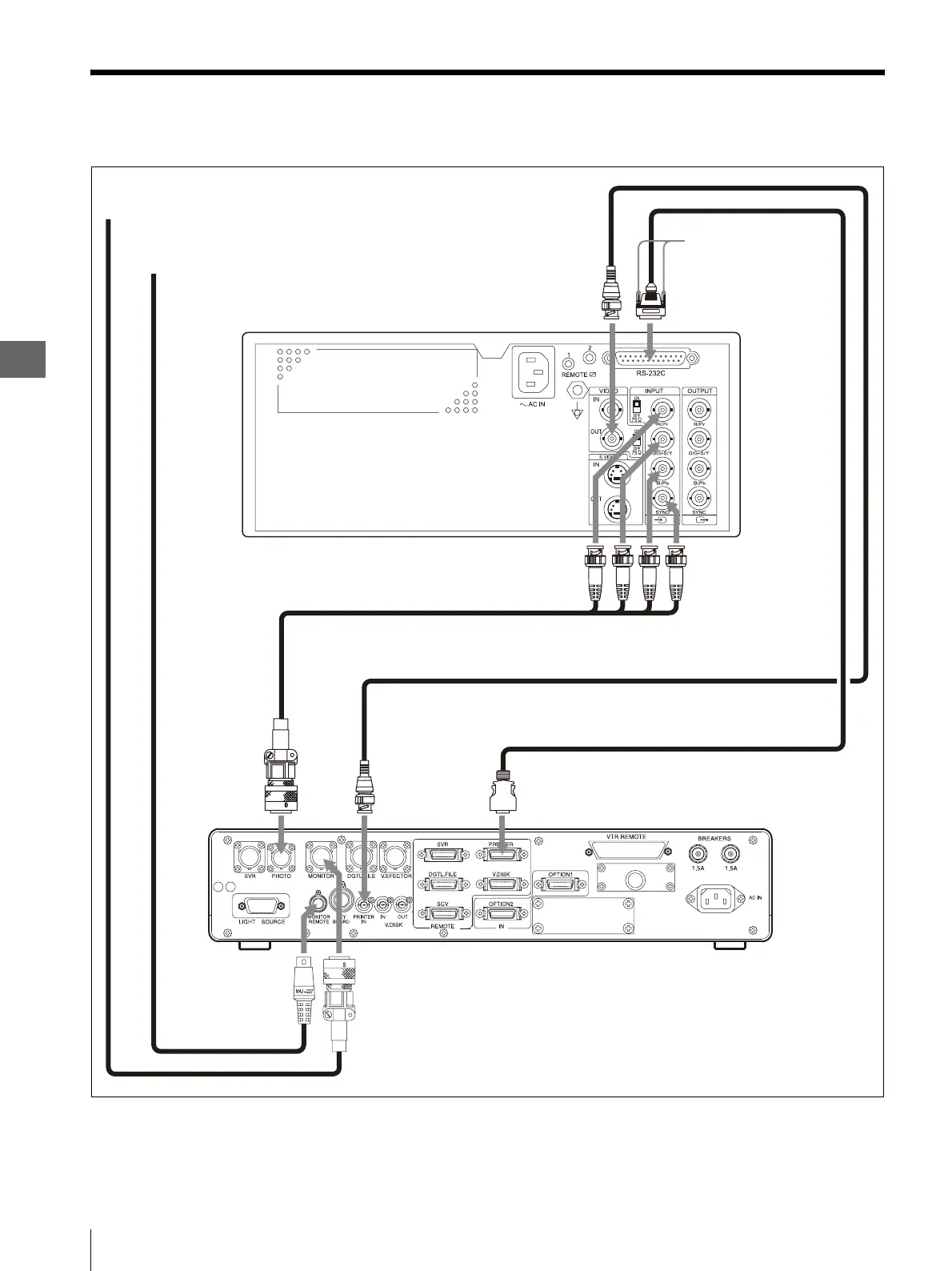

Figure 2.1
To RGB, Y/C, or VIDEO input connector of a monitor
To remote connector of a monitor
Monitor remote cable
Color Video Printer (OEP-4)
VIDEO OUT
terminal
RS-232C terminal
INPUT terminals
Attach the two black
screws, provided with the
remote cable (MH-995).
BNC cable (MB-677)
Remote cable (MH-995)
SCV cable (MD-445)
terminal
PRINTER IN
terminal
PRINTER REMOTE
terminal
MONITOR terminalMONITOR REMOTE
terminal
Monitor cable
Video System Center
(CV-240, CV-140)
RGBS
