Olympus oep-4 - Connection of the EUS EXERA Compact Endoscopic Ultrasound Center (EU-C60)

Installation and Connection
2
2.7 Connection of the EUS EXERA Compact Endoscopic Ultrasound Center (EU-C60)
21
2.7 Connection of the EUS EXERA Compact
Endoscopic Ultrasound Center (EU-C60)

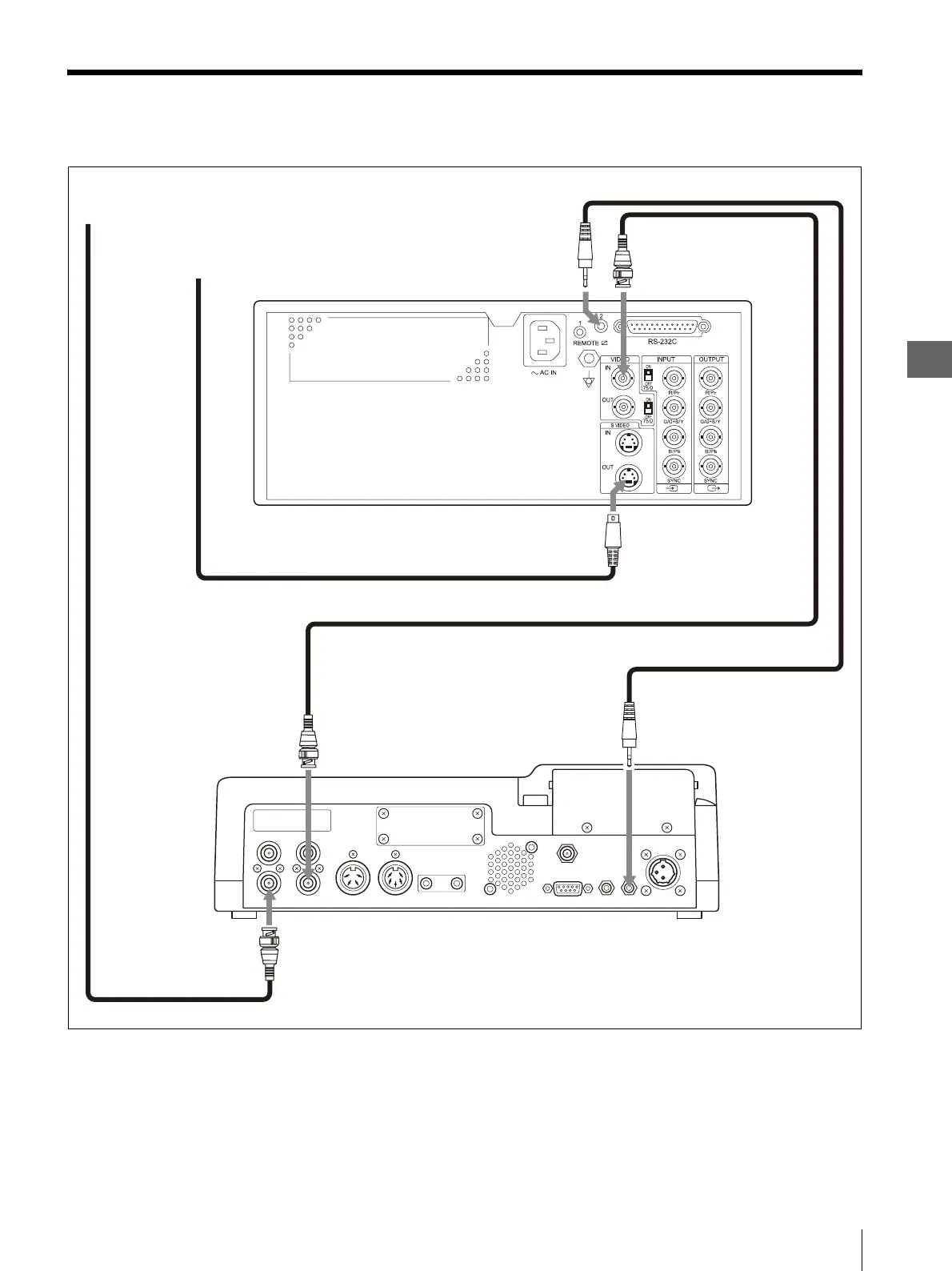

Figure 2.6
Color Video Printer (OEP-4)
REMOTE 2
terminal
VIDEO 1 OUT terminal
EUS EXERA Compact
Ultrasound Center (EU-C60)
BNC cable
Y/C cable
S VIDEO OUT terminal
Remote cable (MH-907)
BNC cable (MB-677)
VIDEO IN terminal
VIDEO 2 OUT terminal
PRINTER REMOTE terminal
To video input connector of a monitor
To Y/C input connector of monitor
