Olympus OM-2 Instructions

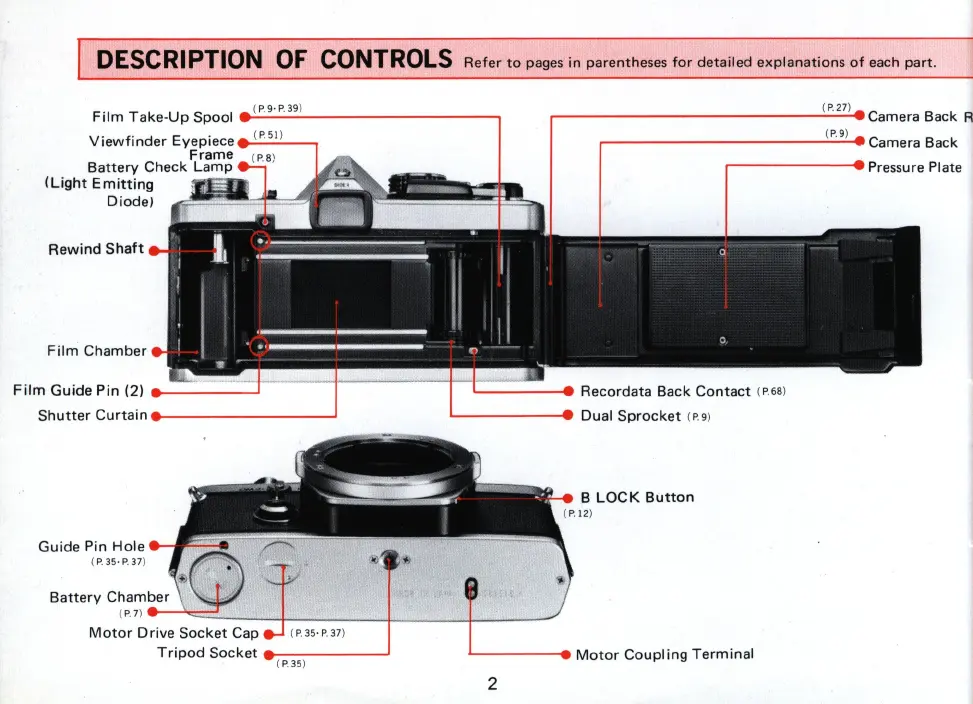

DESCRIPTION OF CONTROLS Refer to pages in parentheses for detailed explanations of each part .
Film Take - Up Spool e-:. ( :..;. P • .:..: 9 • .:..: P . ..:. 39 :.:. ) __________ -.
~----------------':';";":;'-'4 Camera Back R
...-------------..:.:..:.:..:.... Camera Back
Viewfinder Eyepiece ":~:.!..--~
Frame
Battery Check Lamp
(Light Emitting
Diode)
Rewind Shaft
Film Chamber
...-------. Pressure Plate
Film Guide Pin (2) ..- ~ == == =1 ----r-----t - t ==~~ ..... Recordata Back Contact ( P .6 8)
Shutter Curtain Dual Sprocket ( P. 9)
Guide Pin Hole
( P. 35· P. 3))
Battery Chamber
B LOCK Button
( P. 7) .---l "==~ -_ --4 ___ _ _ L __ - L -----
Motor Drive Socket Cap
Tripod Socket "- (-P .3 - 5-) ------!
L- ____ • Motor Coupling Terminal
2

Olympus OM-2 Specifications

General

Type	35mm SLR
Lens Mount	Olympus OM bayonet mount
Viewfinder Coverage	97%
Focusing Screen	Interchangeable
Dimensions	136 x 83 x 50 mm
Shutter Speeds	1 to 1/1000 sec
Mechanical Shutter Speed	1/60 second
Metering	Center-weighted
ISO Range	12 to 1600
Exposure Modes	Manual, Aperture Priority Auto
Viewfinder	Pentaprism
Film Advance	Manual
Film Rewind	Manual
Flash Sync	1/60 second
Battery	2x 1.5V SR44 or LR44
Weight	520g
Shutter	Focal-plane shutter
