SZX2-ILLC16/ILLC10
6

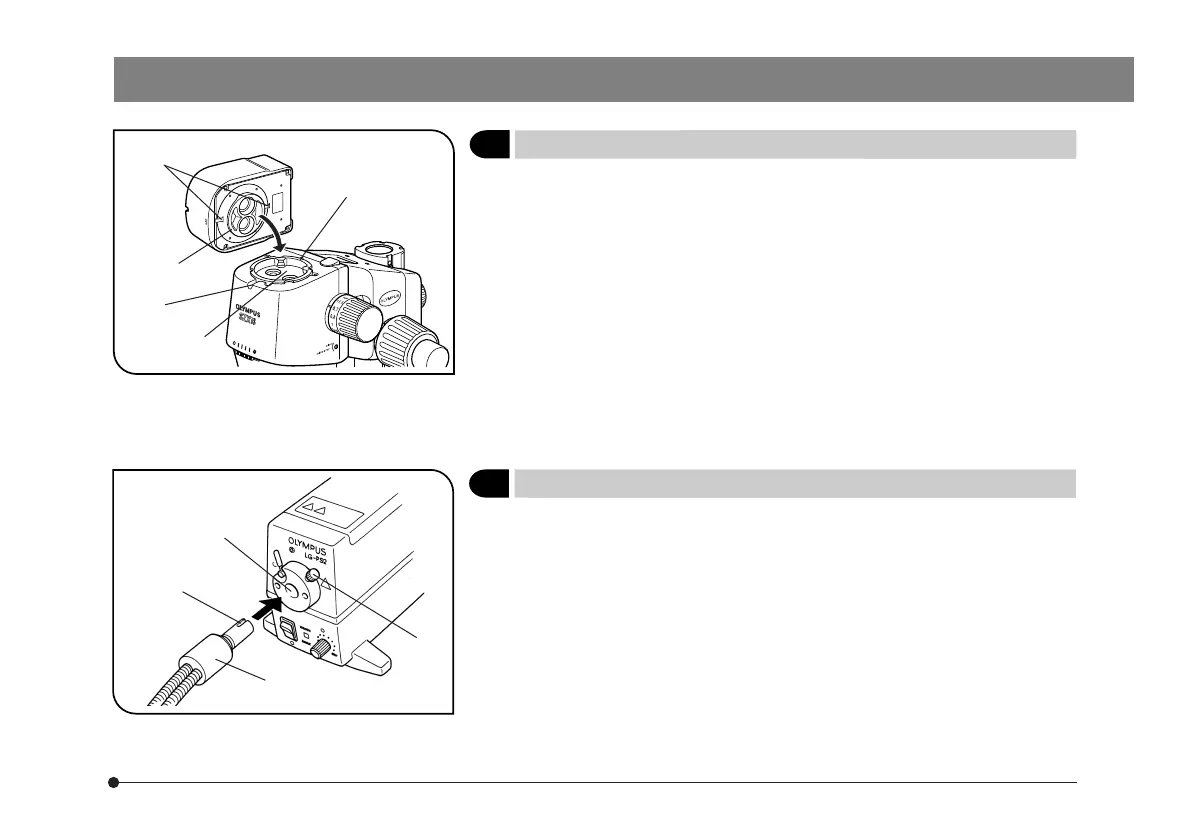

Fig. 1
1
Mounting the Coaxial Vertical Illuminator
(Fig. 1)
1. Loosen the observation tube clamping screw @ with the provided Allen
screwdriver and remove the observation tube.
2. Align the positioning groove ² on the coaxial vertical illuminator with the
positioning pin ³ on the microscope body. Then insert the dovetail | at
the bottom of the coaxial vertical illuminator into the dovetail mount 5 on
the microscope body.
# The coaxial vertical illuminator can also be mounted in the opposite
orientation to that shown in Fig. 1. However this orientation is not
recommended because it makes observation difficult.
3. Tighten the observation tube clamping screw @ on the microscope body
with the Allen screwdriver.
4. Mount the observation tube on the coaxial vertical illuminator.
Fig. 2
2
Mounting the Branched Flexible Light Guide
(Figs. 2 & 3)
1. Loosen the clamping knob 1 on the light source unit. While positioning
the incident light guide end 2 of the light guide so that the notch faces
upward, insert it into the light guide mount ³ until the light guide grip 4
touches the mount. Then tighten the clamping knob @.
@
²
³
|
1
5
4
2
3
