ASSEMBLY

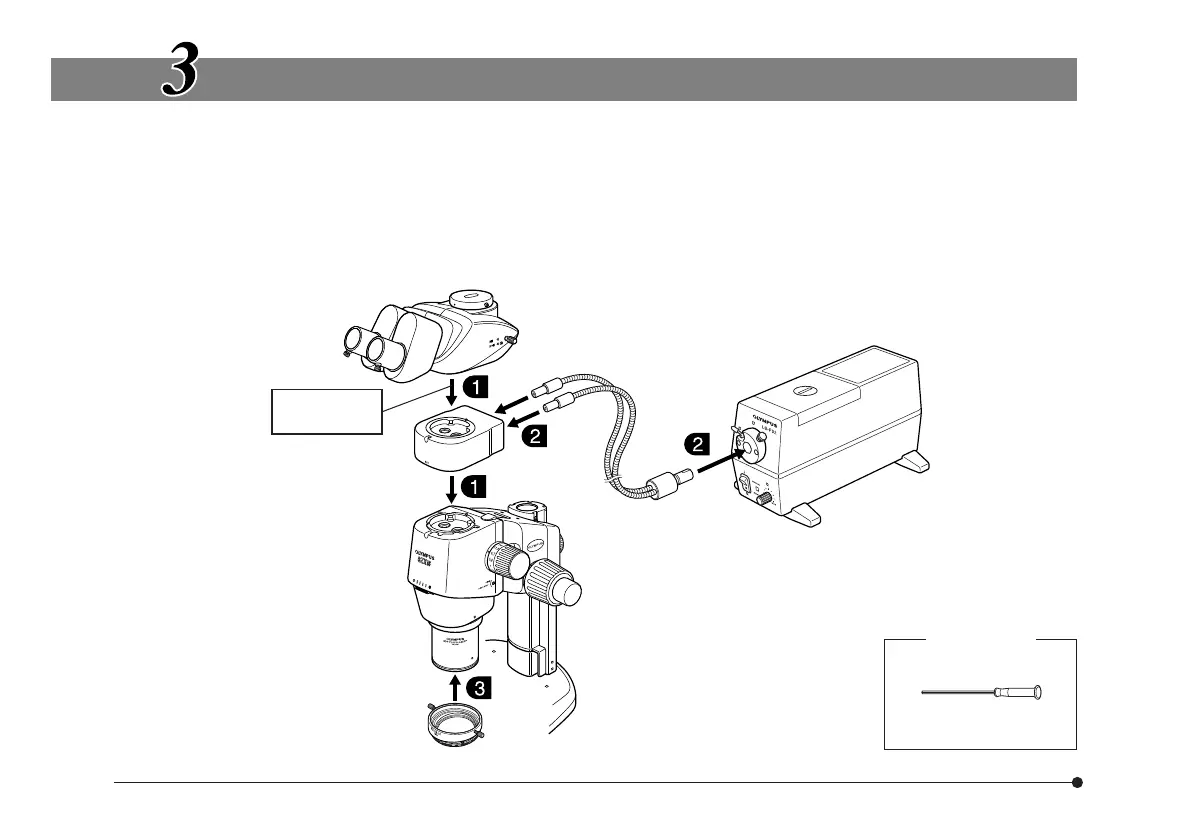

The diagram below shows how to assemble the various modules of this equipment. The numbers in the diagram indicate the
order of assembly.
# Before assembling, make sure that all parts are free of dust and dirt, and avoid scratching any parts or touching the
glass surfaces.
}Only a limited number of intermediate attachments can be mounted. However, the coaxial vertical illuminator (SZX2-ILLC16/
ILLC10) is not considered to be an intermediate attachment so it is always possible to mount an intermediate attachment above
the SZX2-ILLC16/ILLC10. Be sure to mount the SZX2-ILLC16/ILLC10 directly above the zoom microscope body.
Allen screwdriver
(Provided with the zoom
microscope body)
Required Tool
Observation
tube
Intermediate
attachment
Coaxial vertical
illuminator
SZX2-ILLC16/
ILLC10
Zoom microscope body
SZX2-ZB16
SZX2-SZ10
SZX-ZB7
Quarter-wave plate
SZX2-ILLC1/4
Branched flexible
light guide
LG-DF
Light source unit
LG-PS2
To Next Page
