Olympus VS120 - VS120-S1 Image Acquisition

Acquiring Images / VS120-S1
19
Page
1-3 VS120-S1
This section describes how to acquire image of one slide glass set on the stage.
For this purpose, the following modes are available:
Quick: It is to acquire image automatically without making precise settings.
When this mode is selected, follow procedures in the sections whitch carry (Quick) marks on top of
the sections.
Expert: It is to acquire image by setting the scanning area (XY) and focus.
When this mode is selected, follow procedures in the sections whitch carry (Expert) marks on top of
the sections.
Virtual-Z: It is to acquire image by setting the scanning area (XY) and Z.
When this mode is selected, follow procedures in the sections whitch carry (Expert) marks on top of
the sections.

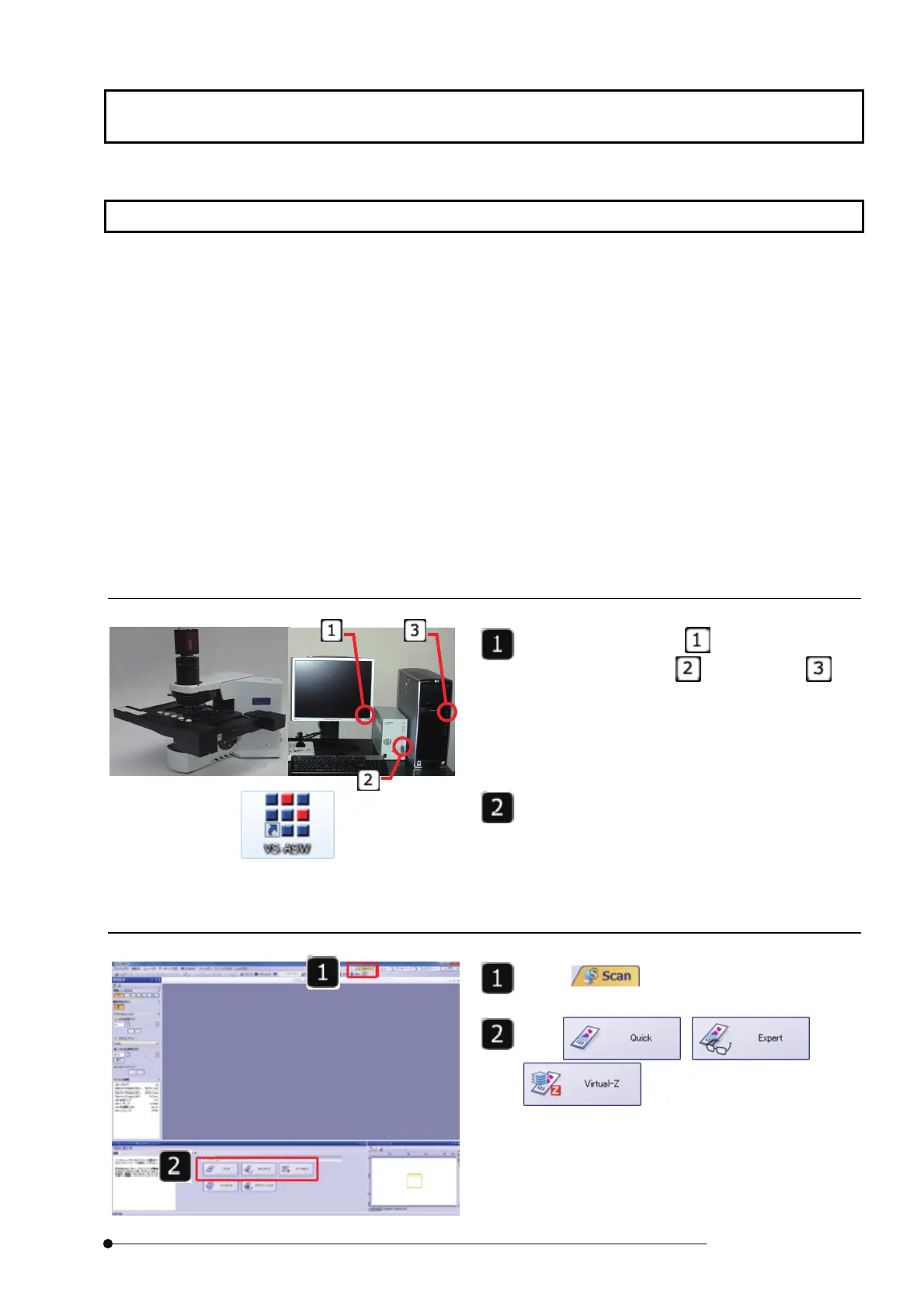

1 Starting Up the System (Quick) (Expert) (Virtual-Z)
First, turn on the monitor , followed by the
microscope control box
, and controller to
start up the system.
After the system has started up, double click the
[VS-ASW] icon on the desktop to start up the
software and begin adjustment of the stage.
2 Selecting Scan Mode (Quick) (Expert) (Virtual-Z)
Select on the upper right of the screen.
Click , , or
.
