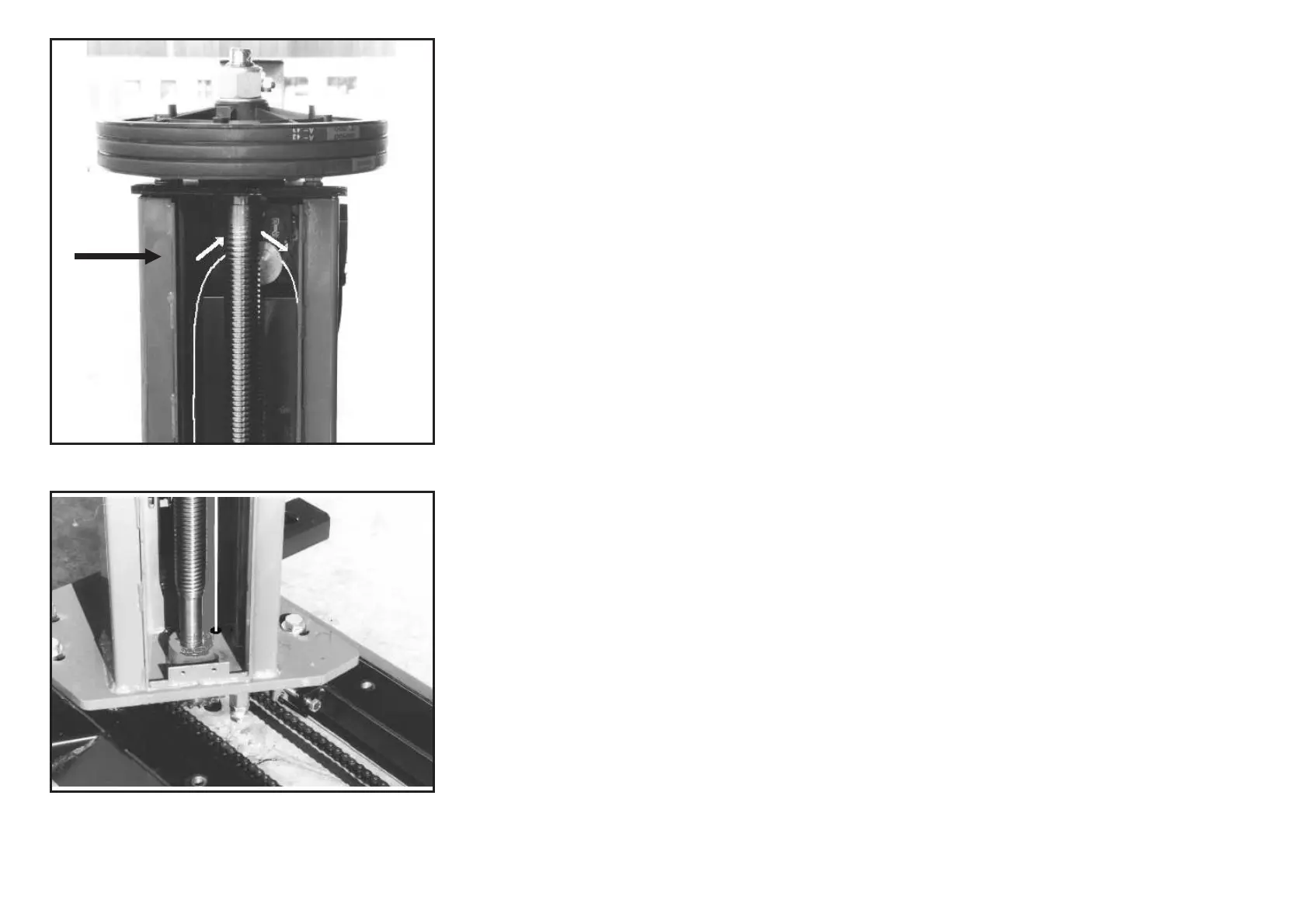

Fig.41-Abb.41
Fig.42-Abb.42
2-Sfilareilcavodallapartesuperioredelcarrelloedinserirlonellapu
-
leggiapostasulfinecorsadiemergenzaallasommitàdellacolonna
(Fig.41).
I
*NOTA
ilcavodeveentraredalfiancosinistrodellapuleggiaedusciredal
fiancodestro.
3-Farescendereilcavofinoallabasedellacolonnamotoreedinfilarlo
neltubopostosullapiastra(Fig.42).
4-Farescorrereilcavoall’internodelbasamentoedinfilarloneltubo
postosullapiastradellacolonnalibera.
2-Withdrawthecablefromtheupperpartofthecarriageandinsertit
intothepulleysituatedontheemergencylimitswitchatthetopofthe
post(Fig.41).
I
*N.B.:
thecablemustbeinsertedfromtheleftsideofthepulleyandemerge
fromtheright.
3-Pushthecabledowntothebaseofthedrivepost,thenslideitinto
thetubeontheplate(Fig.42).
4-Passthecablethroughthebase,thenslideitintothetubesituated
ontheidlepostplate.
